Hot sale Original MAX3098EAESE Drivers And Interfaces Line Receiver 3 Func 3 Rcvr CMOS PDSO16 0.150 INCH SOIC-16 0/3 Receiver
Manufacturer
Manufacturer Product Number
MAX3098EAESE
Description
MAX3098EAESE Drivers And Interfaces Line Receiver 3 Func 3 Rcvr CMOS PDSO16 0.150 INCH SOIC-16 0/3 Receiver
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| General Description The MAX3097E/MAX3098E feature three high-speed RS-485/RS-422 receivers with fault-detection circuitry and fault-status outputs. The receivers’ inputs have fault thresholds that detect when the part is not in a valid state. Features ♦Detects the Following RS-485 Faults: Open-Circuit Condition Short-Circuit Condition Low Differential Voltage Signal Common-Mode Range Violation ♦ESD Protection ±15kV—Human Body Model ±15kV—IEC 1000-4-2, Air-Gap Discharge Method ±8kV—IEC 1000-4-2, Contact Discharge Method ♦Single +3V to +5.5V Operation ♦-10V to +13.2V Extended Common-Mode Range ♦Capacitor-Programmable Delay of Fault Indication Allows Error-Free Operation at Slow Data Rates ♦Independent and Universal Fault Outputs ♦32Mbps Data Rate ♦16-Pin QSOP is 40% Smaller than Industry Standard26LS31/32 Solutions Applications RS-485/RS-422 Receivers for Motor-Shaft Encoders High-Speed, Triple RS-485/RS-422 Receiver with Extended Electrostatic Discharge (ESD) Triple RS-485/RS-422 Receiver with Input Fault Indication Telecommunications Embedded Systems |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC- MAX3098EAESE |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Type | Receiver |
| Protocol | RS422, RS485 |
| Number of Drivers/Receivers | 0/3 |
| Duplex | - |
| Receiver Hysteresis | 40 mV |
| Data Rate | 32Mbps |
| Voltage - Supply | 3V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | MAX3098E |

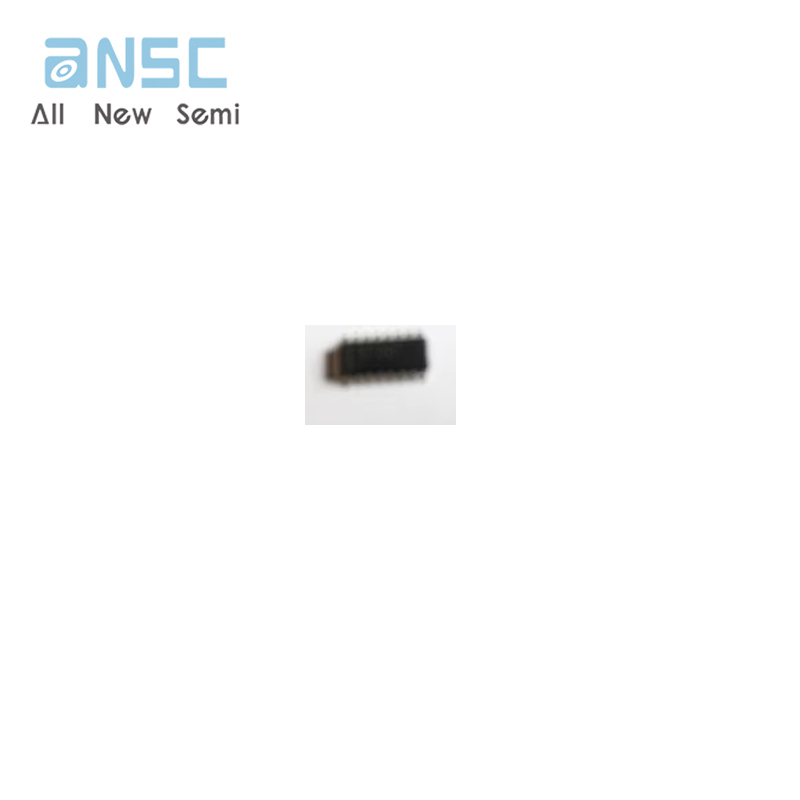

Product Photos

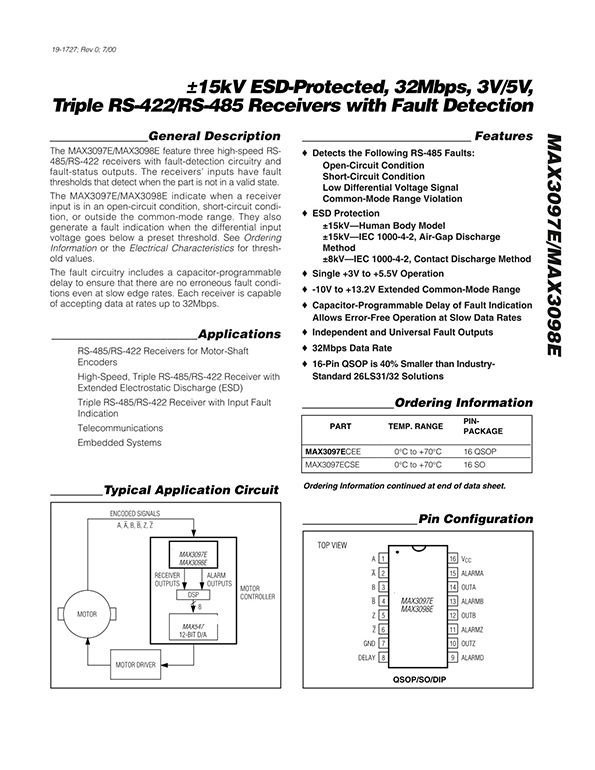

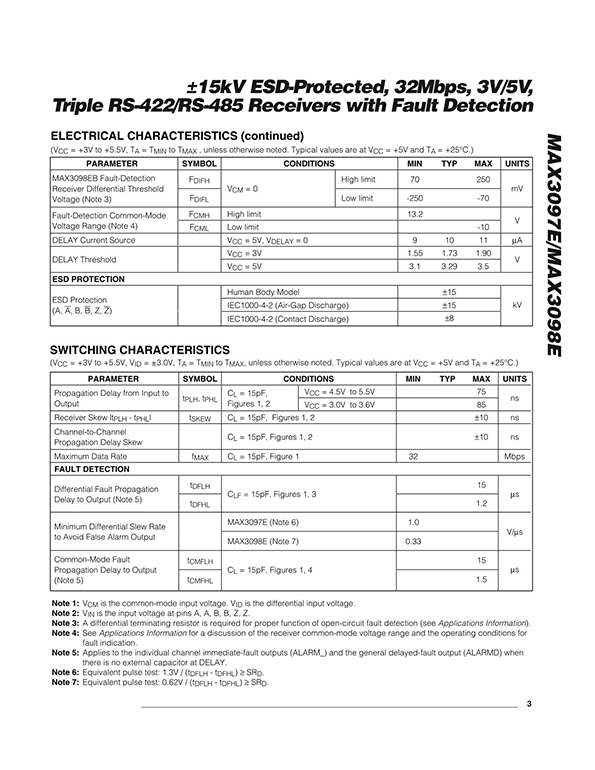

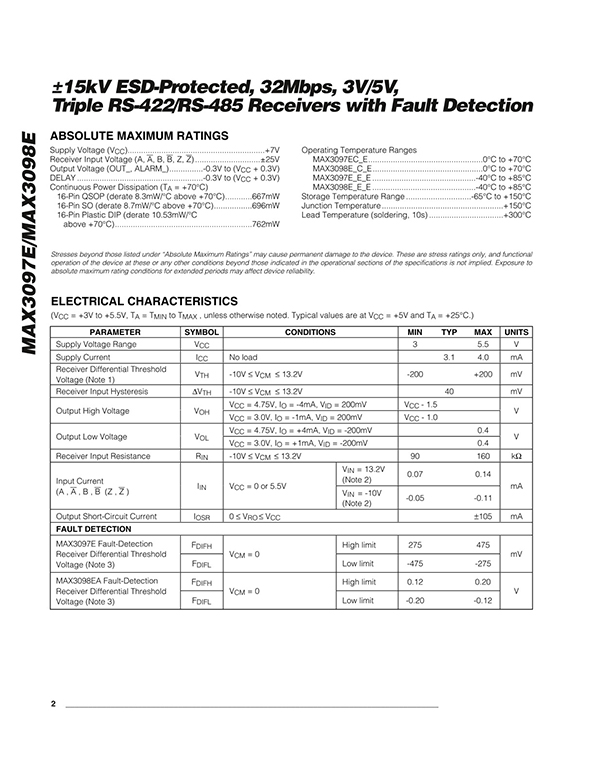

Product datasheet
For more information, please download
Payment&Transportation
Official Certificate&Certificate
Standard packaging
Multiple product supply
Welcome to visit our company
Warehouse Real Shot
