Hot-selling and scarce MP6510DM-LF-Z 4.5V-to-16V,1.2A, Single-Phase Brushle ss DC Motor Driver TSSOP-16

Product Descriptions

The MP6510 is a single-phase, brushless, DC motor driver with integrated power MOSFETs. It drives single-phase brushless DC motors. The input voltage ranges from 4.5V to 16V, with a maximum output current of 1.2A at room temperature.

The MP6510 controls the rotational speed either through the input voltage or the PWM signal. Other features include selectable minimum rotational speed, a rotational-speed indicator, built-in input over-voltage protection, built-in locked-rotor protection, locked-rotor state indicator, thermal shutdown, and 1.2V integrated Hall bias voltage.

The MP6510 is available in 5.0mm×6.4mm TSSOP16 package.

Product Features

 4.5V-to-16V Operating Voltage

 Integrated Power MOSFETs (HS: 370mΩ; LS: 230mΩ)

 Maximum Output Current 1.2A

 Low Quiescent Current (Not including Hall Sensor) of 1.4mA

 Speed Control via Input Voltage or PWM Signal

 Programmable Minimum Speed

 Rotational Speed Indicator

 Locked-Rotor Indicator

 Locked-Rotor Protection and Automatic Recovery

 Thermal Protection and Automatic Recovery

 Built-in Input OVP and Automatic Recovery

 Hall Bias Voltage(1.2V) Integrated;

 Available in TSSOP16 (5.0×6.4mm) Package

Product Applications

 CPU Fan for Personal Computers or Servers

 Brushless DC Motor Driver

Product Specification

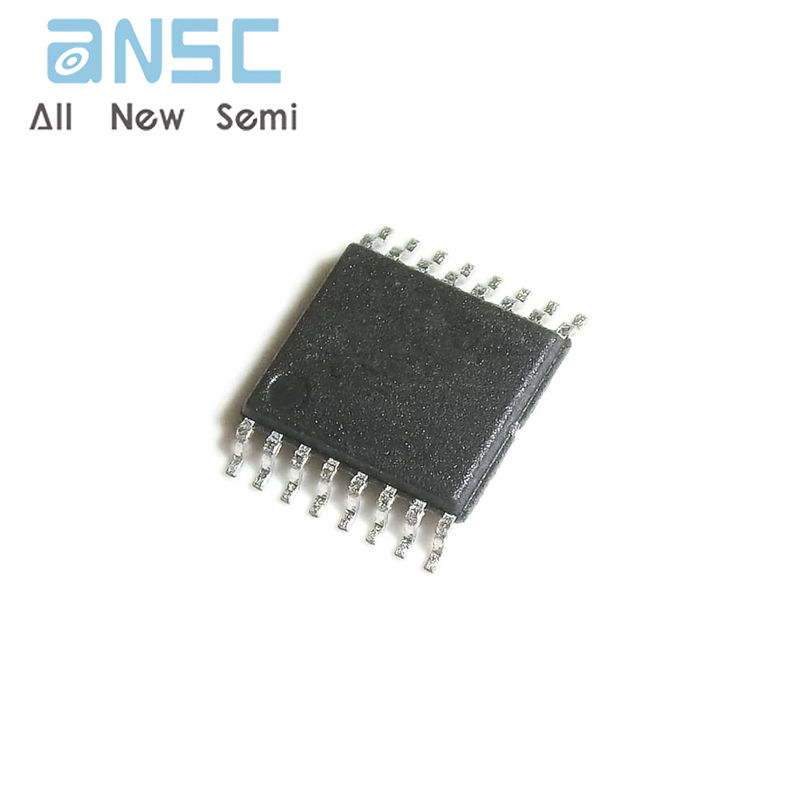

Product Photos

For more product information, please download the PDF
