Hot-selling and scarce EPM3512AFC256-7N Complex Programmable Logic Devices IC 256FBGA spot stock

Product Features

■ High–performance, low–cost CMOS EEPROM–based programmable logic devices (PLDs) built on a MAX® architecture (see Table 1)

■ 3.3-V in-system programmability (ISP) through the built–in IEEE Std. 1149.1 Joint Test Action Group (JTAG) interface with advanced pin-locking capability

– ISP circuitry compliant with IEEE Std. 1532

■ Built–in boundary-scan test (BST) circuitry compliant with IEEE Std. 1149.1-1990

■ Enhanced ISP features:

– Enhanced ISP algorithm for faster programming

– ISP_Done bit to ensure complete programming

– Pull-up resistor on I/O pins during in–system programming

■ High–density PLDs ranging from 600 to 10,000 usable gates

■ 4.5–ns pin–to–pin logic delays with counter frequencies of up to 227.3 MHz

■ MultiVoltTM I/O interface enabling the device core to run at 3.3 V, while I/O pins are compatible with 5.0–V, 3.3–V, and 2.5–V logic

levels

■ Pin counts ranging from 44 to 256 in a variety of thin quad flat pack (TQFP), plastic quad flat pack (PQFP), plastic J–lead chip carrier

(PLCC), and FineLine BGATM packages

■ Hot–socketing support

■ Programmable interconnect array (PIA) continuous routing structure for fast, predictable performance

■ Industrial temperature range

Product Specification

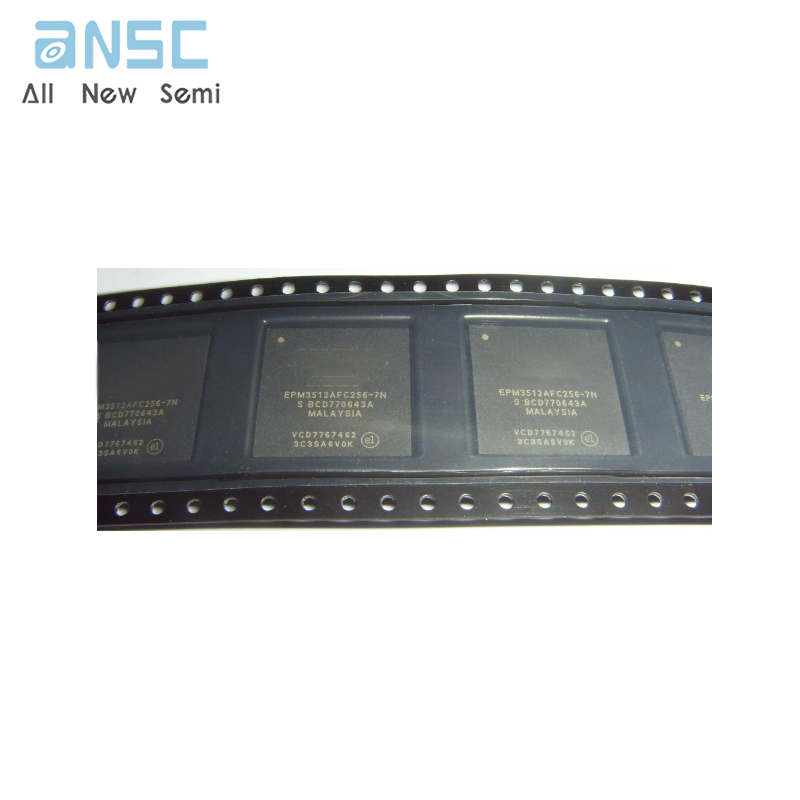

Product Photos

​

For more product information, please download the PDF
