Hot-selling and scarce BCM5466RA0KFBG GIGABIT ETHERNET TRANSCEIVER BGA spot stock

​Product Features

• Four fully-integrated 10BASE-T/100BASE-TX/1000BASE-T Gigabit Ethernet transceivers

• RGMII, SGMII, and SerDes MAC interface options

• 1-Gbps line-side SerDes with an RGMII MAC interface

• Fully compliant with IEEE 802.3, IEEE 802.3u, and IEEE 802.3ab standards

• 0.13-micron CMOS for low power consumption and low cost

• Supports copper or fiber operation in RGMII mode

• Low power

- 750 mW per port

- Advanced power management

• Trace-matched output impedance

• Line-side loopback

• Ethernet@Wirespeed™ support

• Low EMI emissions

• CableChecker™ diagnostics

- CableChecker software detects cable plant impairments.

- Link quality indication LED.

- Automatic detection and correction of wiring pair swaps, pair skew, and pair polarity.

- Automatic MDI/MDIX crossover at all speeds.

• Robust cable-sourced electrostatic discharge (CESD) tolerance

• Support for jumbo packets of up to 10 kB

• IEEE 1149.1 (JTAG) boundary scan

• 256-pin BGA package

Product Specification

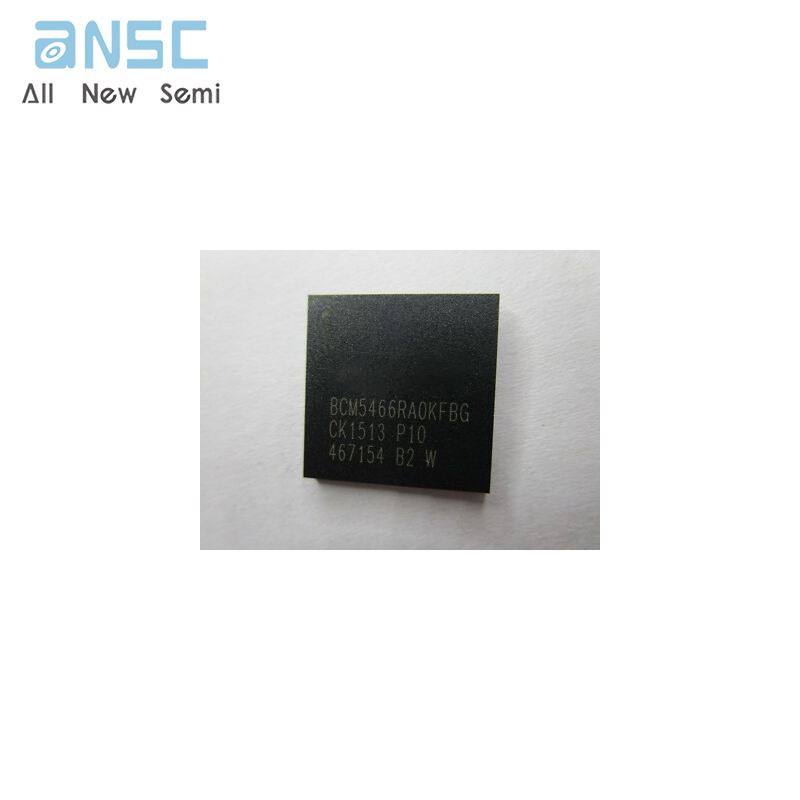

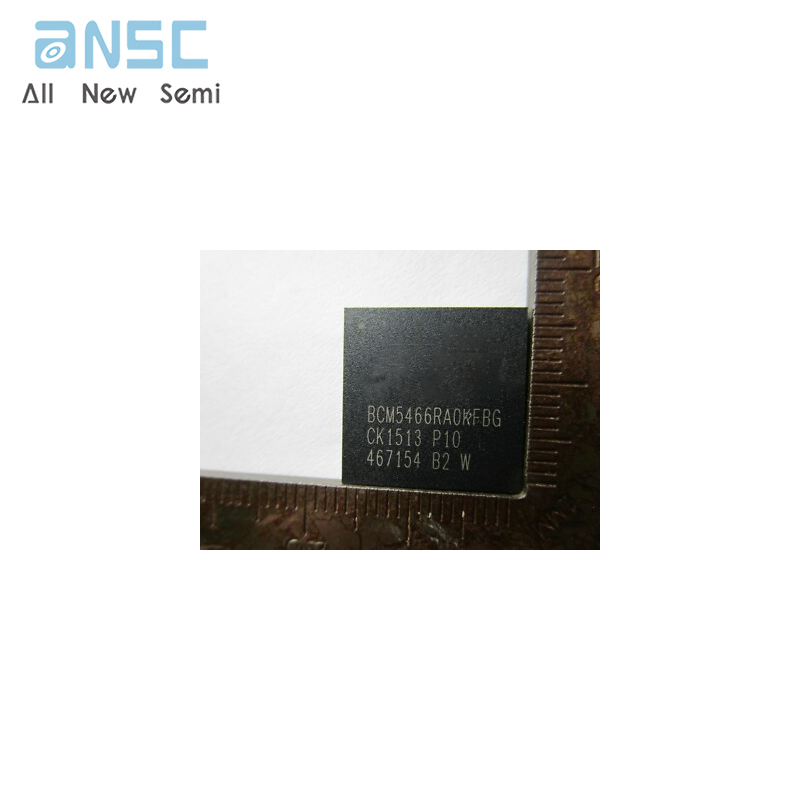

Product Photos

For more product information, please download the PDF
