Spot sales of LB1836ML-TLM-E Monolithic Digital IC Low-Saturation Bidirectional Motor Driver for Low-Voltage Drive IC SOP-14
Manufacturer Product Number
LB1836ML-TLM-E
Description
LB1836ML-TLM-E Monolithic Digital IC Low-Saturation Bidirectional Motor Driver for Low-Voltage Drive IC SOP-14
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The LB1836M is a low-saturation two-channel bidirectional motor driver IC for use in low-voltage applications.
The LB1836M is a bipolar stepper-motor driver IC that is ideal for use in printers, FDDs, cameras and other portable devices.
Product Features
• Low voltage operation (2.5V min)
• Low saturation voltage (upper transistor + lower transistor residual voltage ; 0.40V typ at 400mA).
• Parallel connection (Upper transistor + lower transistor residual voltage ; 0.5V typ at 800mA).
• Separate logic power supply and motor power supply
• Brake function
• Spark killer diodes built in
• Thermal shutdown circuit built in
• Compact package (14-pin MFP)
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-LB1836ML-TLM-E |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Full, Half-Bridge (H Bridge) Drivers | |
| Manufacturer | onsemi |
| Series | * |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Base Product Number | LB1836 |

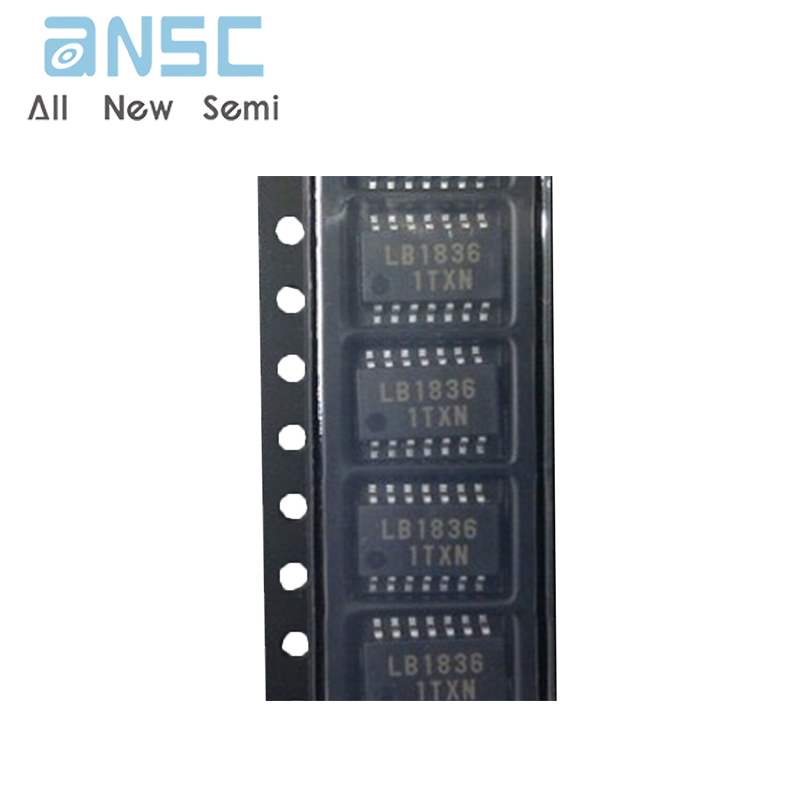

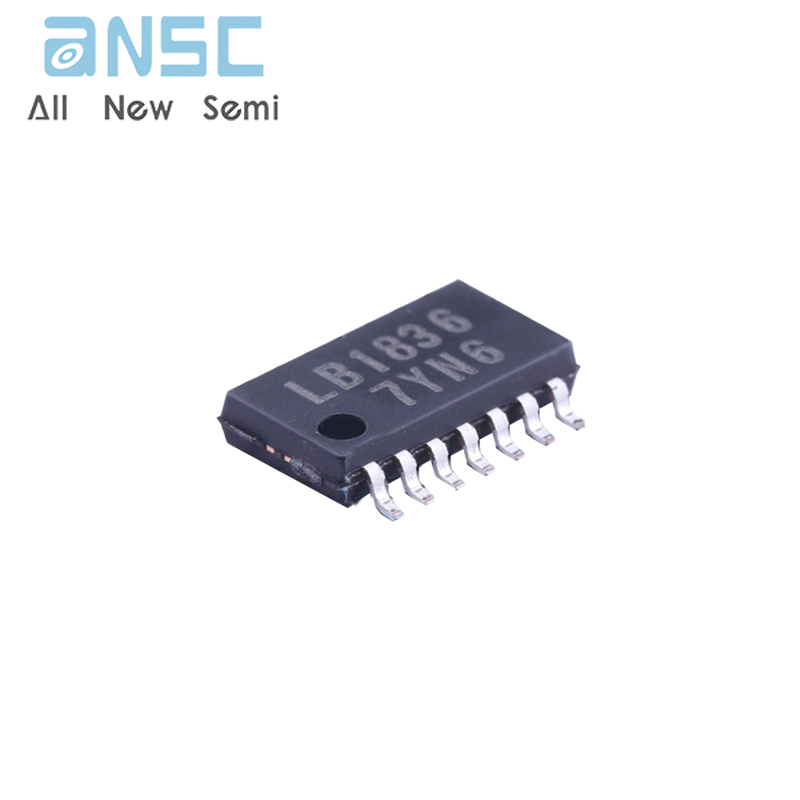

Product Photos
For more product information, please download the PDF
