Hot-selling and scarce SN74ALS244BDWR OCTAL BUFFERS AND LINE DRIVERS WITH 3-STATE OUTPUTS SOP20 spot stock

Product Descriptions

These octal buffers and line drivers are designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. Taken together with the ’ALS240A, ’ALS241A, ’AS240, and ’AS241, these devices provide the choice of selected combinations of inverting outputs, symmetrical G (active-low input control) inputs, and complementary G and G inputs.

The –1 version of the SN74ALS244B is identical to the standard version except that the recommended maximum IOL is increased to 48 mA. There is no –1 version of the SN54ALS244B.

The SN54ALS244B and SN54AS244 are characterized for operation over the full military temperature range of –55°C to 125°C. The SN74ALS244B and SN74AS244 are characterized for operation from 0°C to 70°C.

Product Features

• 3-State Outputs Drive Bus Lines or Buffer Memory Address Registers

• PNP inputs Reduce DC Loading

• Package Options include Plastic Small Outline Packages, Ceramic Chip Carriers, and Standard Plastic and Ceramic 300-mil DIPs

• Dependable Texas instruments Quality and Reliability

Product Specification

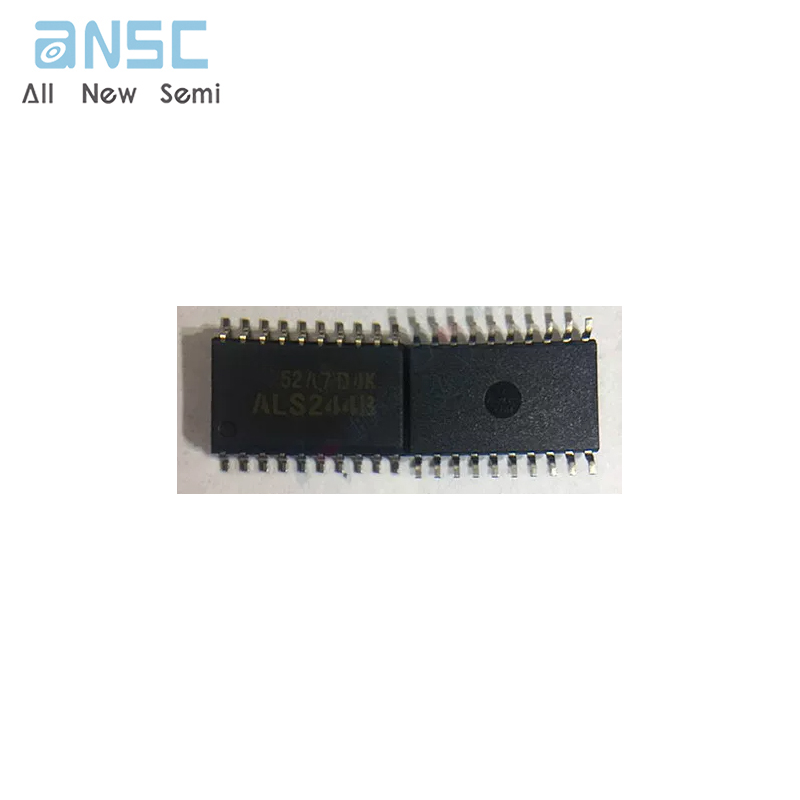

Product Photos

For more product information, please download the PDF
