Hot-selling and scarce DS75451N Dual Peripheral Drivers DIP8 spot stock

Product Descriptions

The DS7545X series of dual peripheral drivers is a family of versatile devices designed for use in systems that use TTL logic. Typical applications include high speed logic buffers, power drivers, relay drivers, lamp drivers, MOS drivers, bus drivers and memory drivers.

The DS75451, DS75452 and DS75453 are dual peripheral AND, NAND and NOR drivers, respectively, (positive logic) with the output of the logic gates internally connected to the bases of the NPN output transistors.

Product Features

n 300 mA output current capability

n High voltage outputs

n No output latch-up at 20V

n High speed switching

n Choice of logic function

n TTL compatible diode-clamped inputs

n Standard supply voltages

n Replaces TI “A” and “B” series

Product Specification

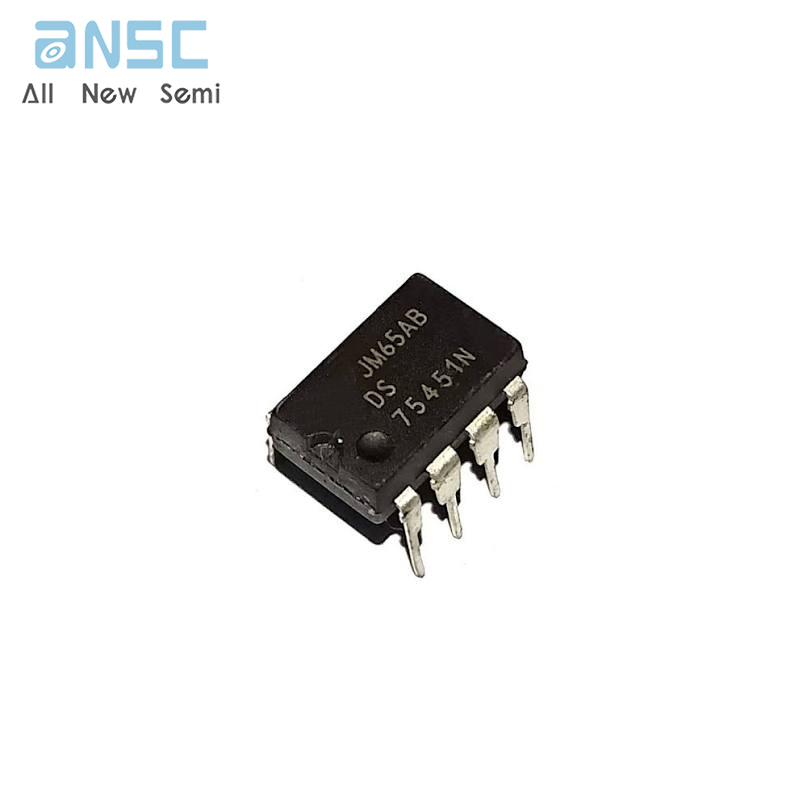

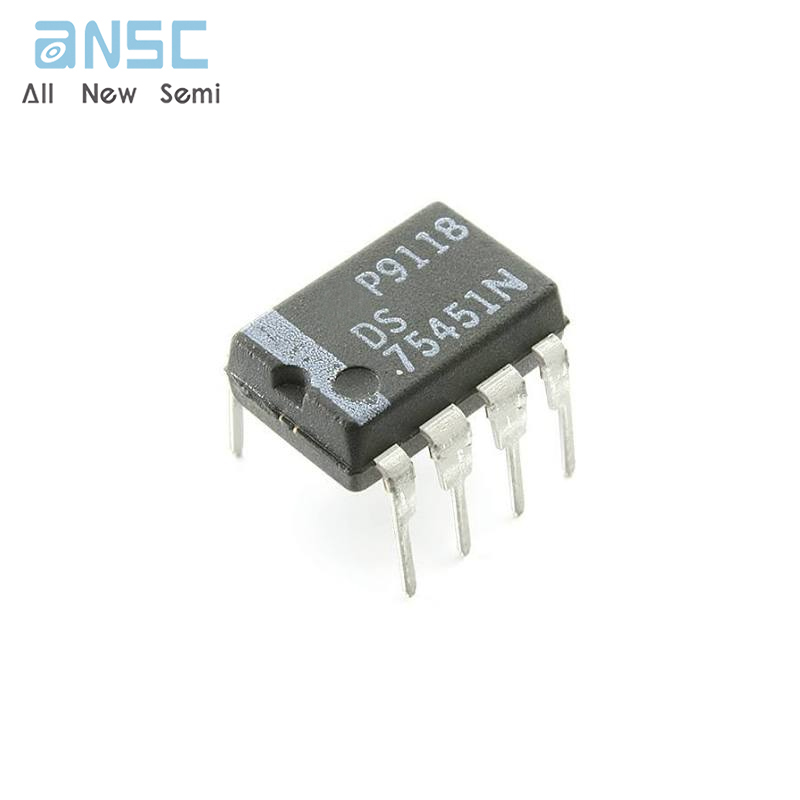

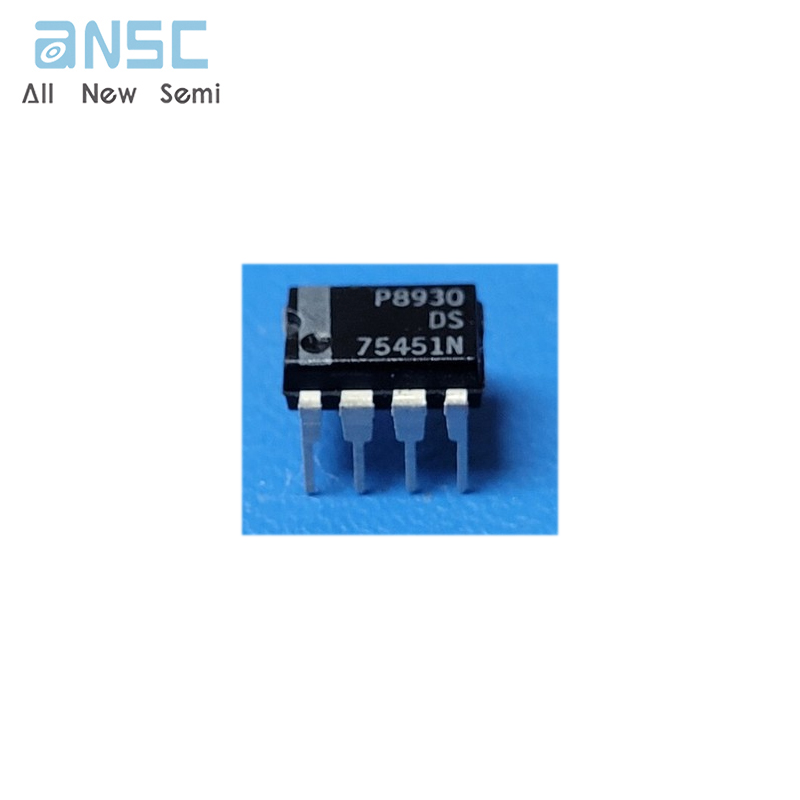

Product Photos

For more product information, please download the PDF
