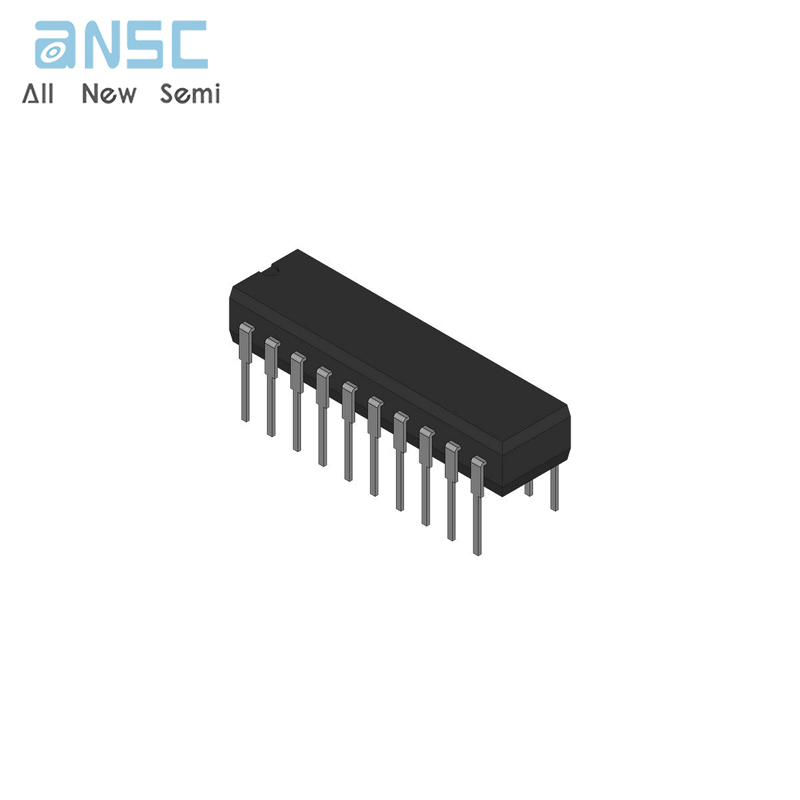

Hot-selling and scarce CY54FCT244TDMB 8-BIT BUFFERS/LINE DRIVERS WITH 3-STATE OUTPUTS DIP20 spot stock

Product Descriptions

The’FCT240T devices are octal buffers and line drivers  designed  to  be  employed  as  memory address      drivers,      clock      drivers,      and bus-oriented transmitters/receivers . These devices provide speed and drive capabilities equivalent to the irfastest bipolar logic counterparts,while reducing power consumption .The input and output voltage levels allow direct interface with TTL, NMOS, and CMOS devices without external components .

These devices are fully specified for partial-power-down applications using I_off . The I_off circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down .

Product Features

Function, Pinout, and Drive Compatible With FCT and F Logic

Reduced V OH (Typically = 3.3 V)Versions of Equivalent FCT Functions

Edge-Rate Control Circuitry for Significantly Improved Noise Characteristics

I off Supports Partial-Power-Down Mode Operation

ESD Protection Exceeds JESD 22

–  2000-V Human-Body Model (A114-A)

–  200-V Machine Model (A115-A)

–  1000-V Charged-Device Model (C101)

Matched Rise and Fall Times

Fully Compatible With TTL Input and Output Logic Levels

CY54FCT240T

–  48-mA Output Sink Current

12-mA Output Source Current

CY74FCT240T

–  64-mA Output Sink Current

32-mA Output Source Current

3-State Outputs

Product Specification

Product Photos

For more product information, please download the PDF
