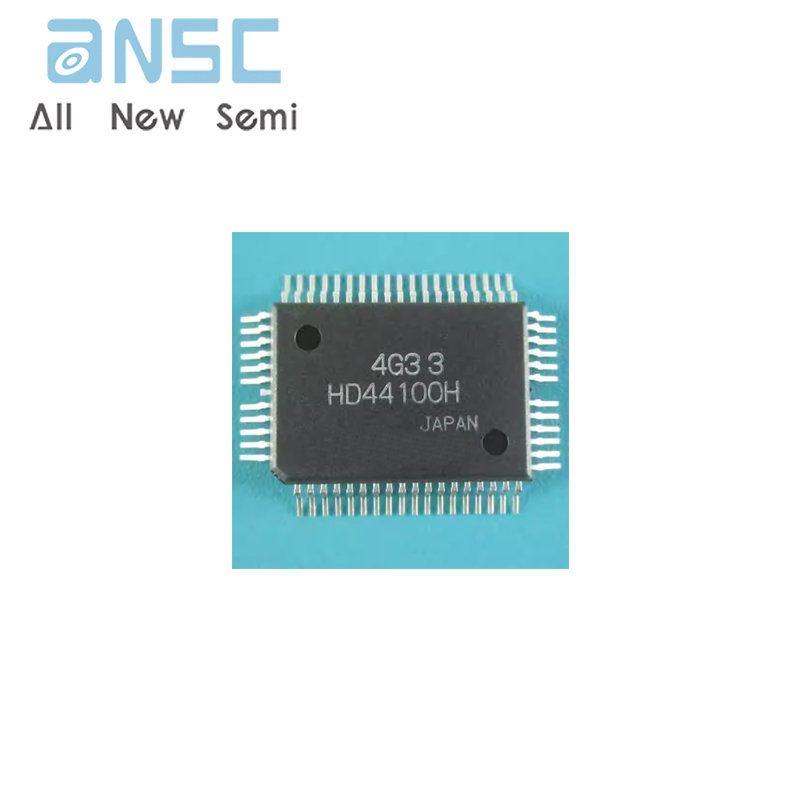

Spot sales of HD44100H LCD Driver with 80-Channel Outputs QFP

Product Descriptions

The HD66100F description segment driver with 80 LCD drive circuits is the improved version of the no longer current HD44100H LCD driver with 40 circuits.

It is composed of a shift register, an 80-bit latch circuit, and 80 LCD drive circuits. Its interface is compatible with the HD44100H. It reduces the number of LSI’s and lowers the cost of an LCD module.

Product Features

• LCD driver with serial/parallel converting function

• Interface compatible with the HD44100H; connectable with HD43160AH, HD61830, HD61830B, LCD-II (HD44780), LCD-III (HD44790)

• Internal output circuits for LCD drive: 80

• Internal serial/parallel converting circuits

 80-bit bidirectional shift register

 80-bit latch circuit

• Power supply

 Internal logic circuit: +5V ±10%

 LCD drive circuit: 3.0V to 6.0V

• CMOS process

Product Photos

For more product information, please download the PDF
