Hot-selling and scarce SELC2010M High current switch mode PWM LED Driver IC SOP16 spot stock

Product Descriptions

The MAP3201 is a high efficiency current mode PWM driver. It isdesigned for LED driver that is used as the light source of LCDpanel . The controller can achieve efficiency higher than 90% forbuck and boost applications .

The MAP3201 for accurate LED dimming control use externalPWMI  signal  and  set  internal  frequency  by  external  resistorwhich is programmable .

The MAP3201 has a stable operation with wide input voltagebecause it can be operated as separated VCC with input voltageIt has a auto-restart recovery protection if the system occur faultsignal . it can provide a good safety features .

Product Features

PWM Interface LED Driver

Current Mode Control Type

Auto Restart Mode Protection

Output Over Voltage Protection

Programmable LED Short Current Protection

Power Supply VCC=12V (Max 20V)

Programmable LED Current Set (FBP)

Programmable Boost switch current limit

Synchronization to peer-to-peer or   external clock

Fully RoHS Compliant

Product Applications

RGB and White LED Backlighting applications

General LED lighting applications

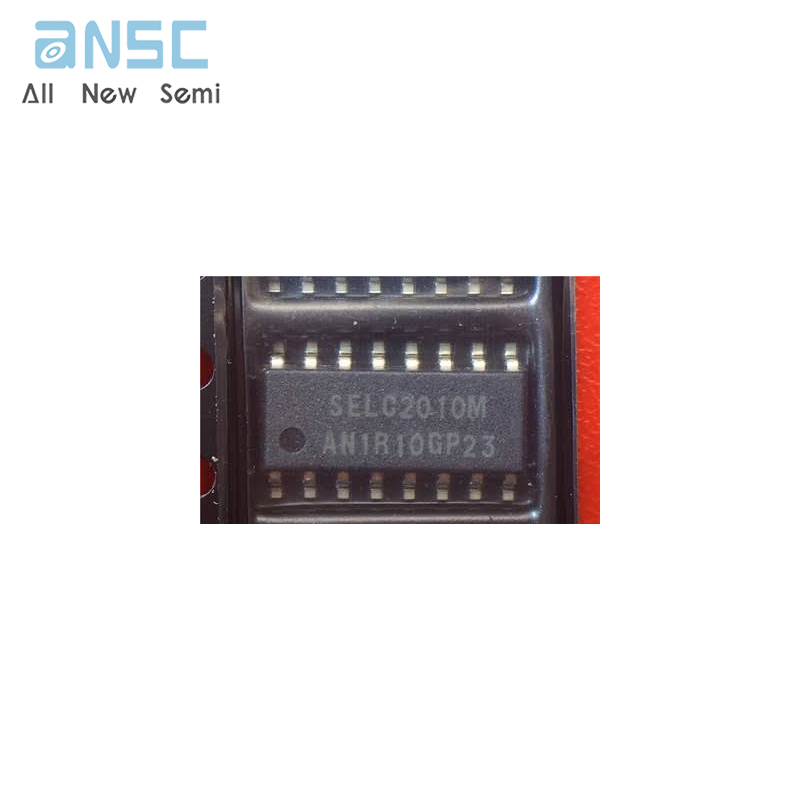

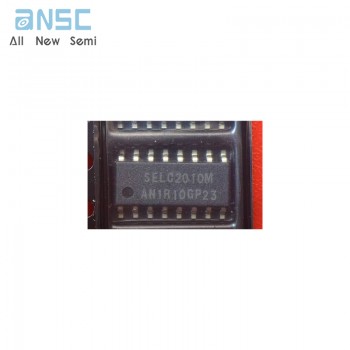

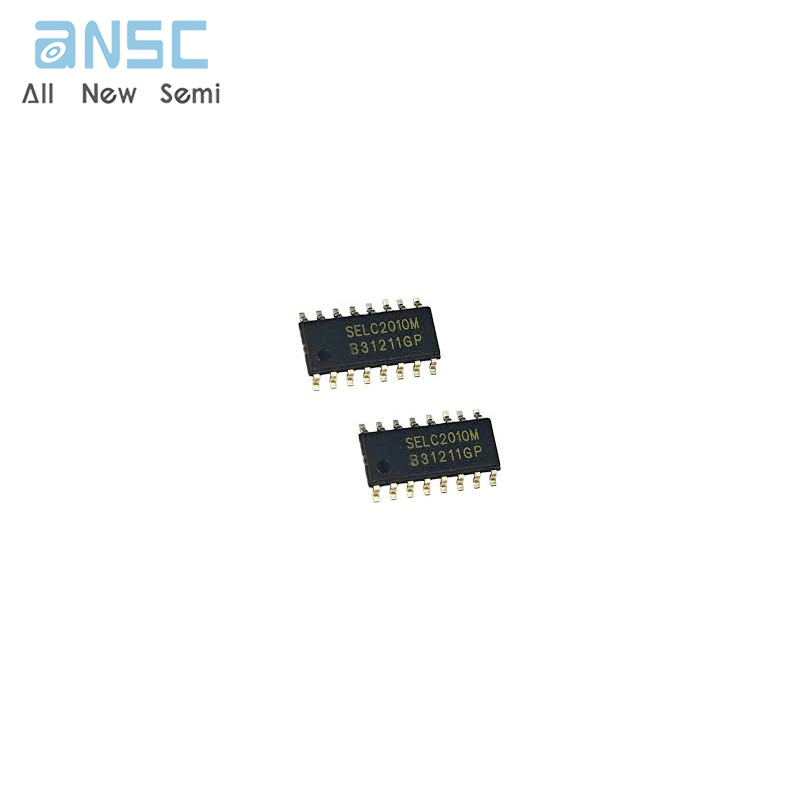

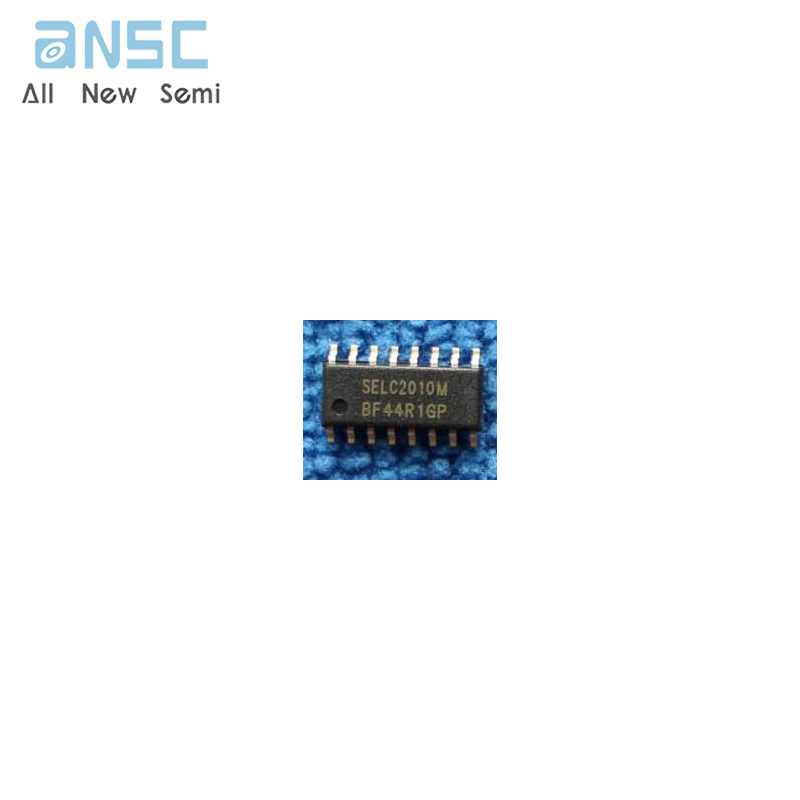

Product Photos

For more product information, please download the PDF
