Hot-selling and scarce EP600DI ERASABLE PROGRAMMABLE LOGIC DEVICE IC CDIP24 spot stock

Product Descriptions

High density (over 600 gates) replacement for TTL and 74HC.

Advanced CHMOS EPROM technology, allows erase and reprogram.

High speed, tpd = 25 ns.

"Zero Power" (typically 10uA standby.

Asynchronous clocking of all registers or banked register operation from 2 synchronous clocks.

Sixteen Macrocells with configurable I/O architecture allowing 20 inputs and 16 outputs.

Programmable registers providing D, T, SR or JK flipflops with individual Clear control.

100% generically testable-provides 100% program-ming yield.

Programmable "Security Bit" allows total protection of proprietary designs.

Advanced software support featuring Schematic Capture, Interactive Netlist, Boolean Equation andState Machine design entry.

Space saving 24 pin, 300 mil, dual in-line package and 28 pin J-leaded chip carrier.

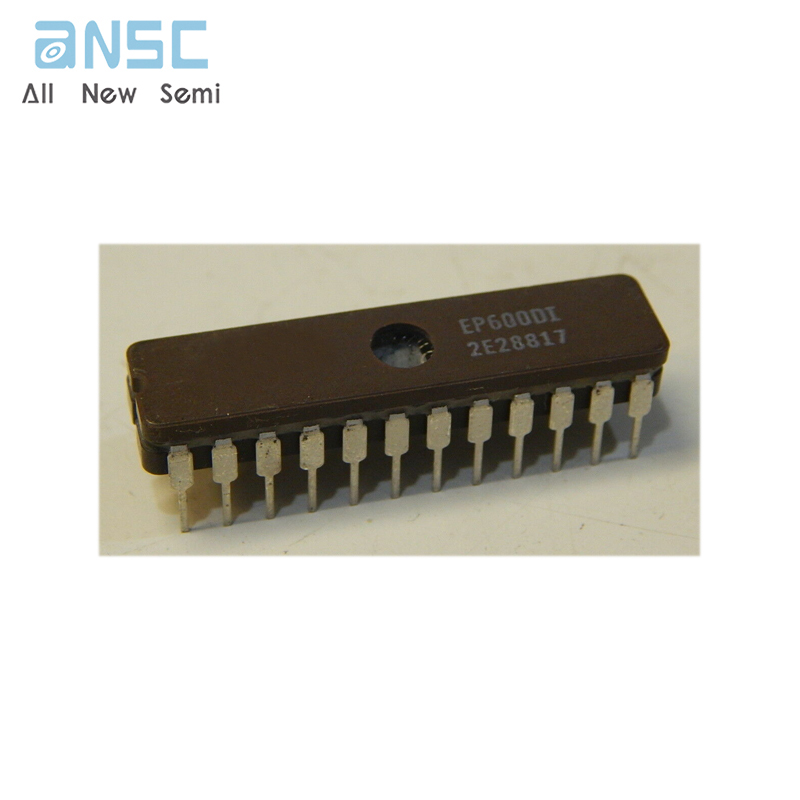

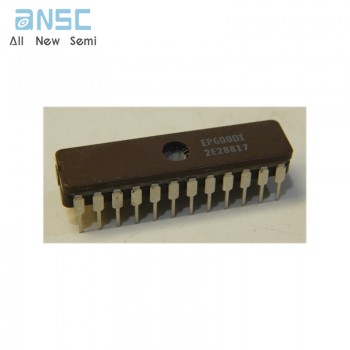

Product Photos

​

For more product information, please download the PDF
