MP86963DUT-LF-Z High Efficiency, 20A, 27V Intelli-Phase TM Solution (Integrated HS/LS FETs and Driver) QFN
Manufacturer Product Number
MP86963DUT-LF-Z
Description
MP86963DUT-LF-Z 20A, 27V Intelli-Phase TM Solution (Integrated HS/LS FETs and Driver) QFN
Package Condition
TRAY
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The MP86963 is a monolithic Half Bridge with built-in internal power MOSFETs and gate driver. It achieves 20A continuous output current over a wide input supply range.
Integrating the Driver and MOSFETs results in high efficiency due to optimal dead time control and parasitic inductance reduction.
The MP86963 is a Monolithic IC designed to drive up to 20A per phase. Housed in a very small 5x5mm TQFN Package, this device can be operated from 100kHz to 1MHz operation.
The IC is intended to work with 3.3V tri-state output controllers.
The MP86963 is ideal for notebook applications where efficiency and small size are a premium.
Product Features
• Wide 4.5V to 21V Operating Input Range
• 20A Output Current
• Simple Logic Interface (3.3V)
• Operate from 100kHz to 1MHz
• Accepts 3-state PWM Input
• Suitable for single-/multi-phase operation
• Available in a 5mm x 5mm TQFN Package
• ROHS6 Compliant
Product Applications
• Power modules
• Notebook, Core Voltage
• Graphic Card Core Regulators
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MP86963DUT-LF-Z |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Full, Half-Bridge (H Bridge) Drivers | |
| Manufacturer | - |
| Series | Intelli-Phase™ |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Output Configuration | Half Bridge |
| Applications | General Purpose |
| Interface | PWM |
| Load Type | Inductive |
| Technology | Power MOSFET |
| Current - Output / Channel | 20A |
| Voltage - Supply | 4.5V ~ 5.5V |
| Voltage - Loa | 4.5V ~ 21V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Features | Bootstrap Circuit, Diode Emulation |
| Mounting Type | Surface Mount |
| Package / Case | 18-PowerWFDFN |
| Supplier Device Package | 18-FCTQFN-EP (5x5) |
| Base Product Number | MP86963 |

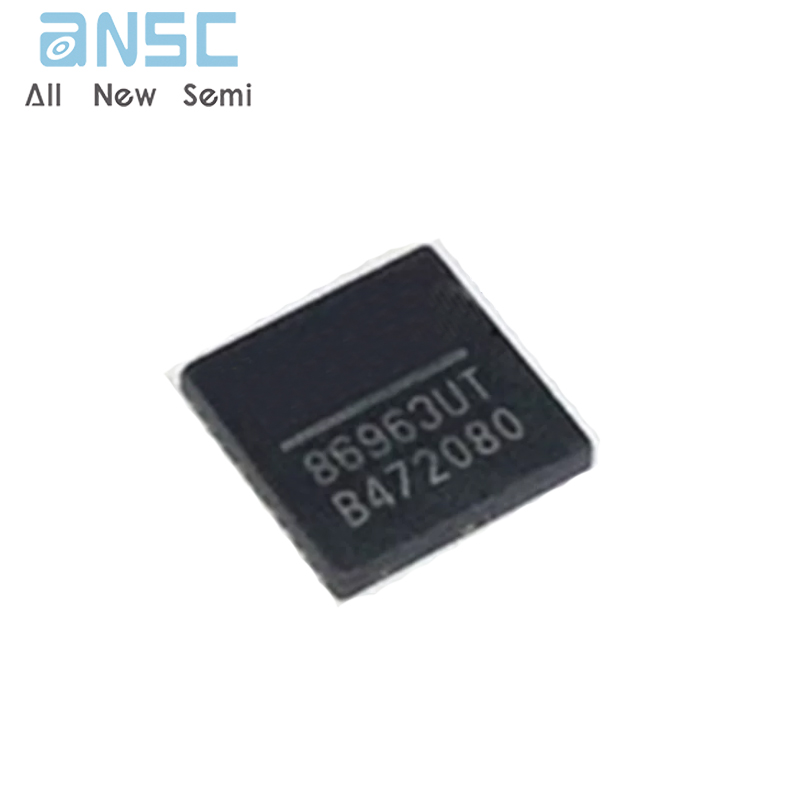

Product Photos
