Hot-selling and scarce DS90LV031ATM 3V LVDS Quad CMOS Differential Line Driver IC SOP16 spot stock

Product Descriptions

The DS90LV031A is a quad CMOS differential line driver designed for applications requiring ultra low power dissipation and high data rates. The device is designed to support data rates in excess of 400 Mbps (200 MHz) using Low Voltage Differential Signaling (LVDS) technology.

The DS90LV031A accepts low voltage LVTTL or LVCMOS input levels and translates them to low voltage (350 mV) differential output signals. In addition the driver supports a TRI-STATE® function that may be used to disable the output stage, disabling the load current, and thus dropping the device to an ultra low idle power state of 13 mW typical.

The EN and EN* inputs allow active Low or active High control of the TRI-STATE outputs. The enables are common to all four drivers. The DS90LV031A and companion line receiver (DS90LV032A) provide a new alternative to high power psuedo-ECL devices for high speed point-to-point interface applications.

Product Features

• >400-Mbps (200-MHz) Switching Rates

• 0.1-ns Typical Differential Skew

• 0.4-ns Maximum Differential Skew

• 2-ns Maximum Propagation Delay

• 3.3-V Power Supply Design

• ±350-mV Differential Signaling

• Low Power Dissipation (13-mW at 3.3-V Static)

• Interoperable With Existing 5-V LVDS Devices

• Compatible With IEEE 1596.3 SCI LVDS Standard

• Compatible With TIA/EIA-644 LVDS Standard

• Industrial Operating Temperature Range

• Available in SOIC and TSSOP Surface-Mount Packaging

Product Applications

• Building And Factory Automation

• Grid Infrastructure

Product Specification

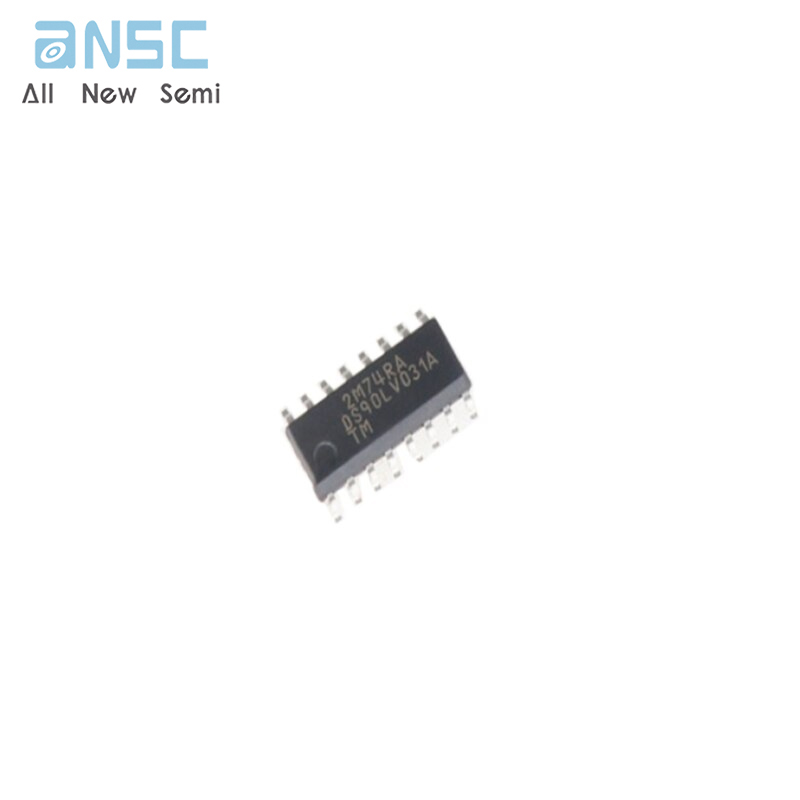

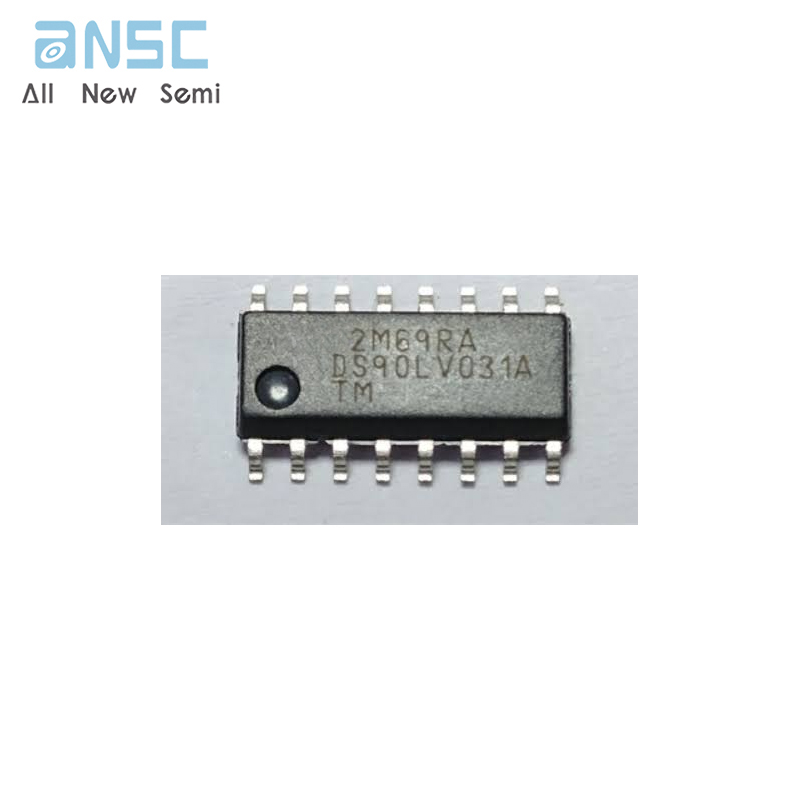

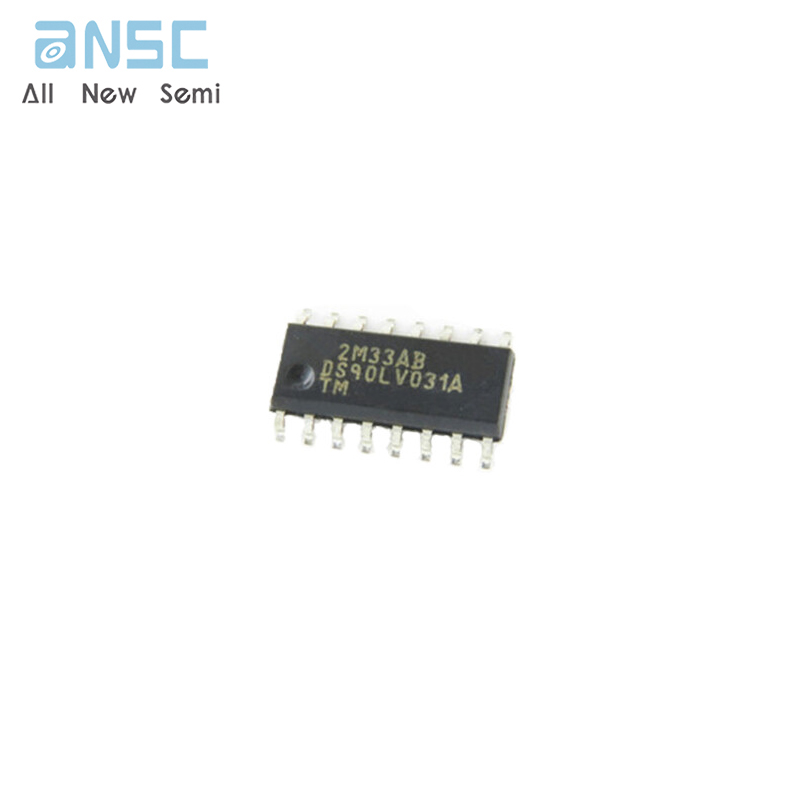

Product Photos

For more product information, please download the PDF
