Hot-selling and scarce TLE7259-2GE LIN Transceiver SOP8 spot stock

Product Descriptions

The TLE7259-2GE is a transceiver for the Local Interconnect Network (LIN)with integrated Wake-Up andprotection features .It is designed for in-vehicle networks using data transmission rates from 2.4 kBaud to20 kBaud .The TLE7259-2GE functions as a bus driver between the protocol controller and the physical bus insidethe LIN network .Compliant to all LIN standards and with a wide operational supply range the TLE7259-2GE canbe used in all automotive applications .

Different operation modes and the INH output allow the TLE7259-2GE to control external components,like voltageregulators .In Sleep-mode the TLE7259-2GE draws less than 8 µA of quiescent current while still being able towake up off of LIN bus traffic and a local Wake-Up input .The very low leakage current on the BUS pin makes theTLE7259-2GE especially suitable for partially supplied networks and supports the low quiescent currentrequirements of the LIN network .

Based on the Infineon Smart Power Technology SPT^®,the TLE7259-2GE provides excellent ESD Robustnesstogether with a very high electromagnetic immunity (EMI).The TLE7259-2GE reaches a very low level ofelectromagnetic emission (EME)within a broad frequency range and independent from the battery voltage .

Product Features

• Single-wire transceiver,pin compatible to the TLE7259-2GU

• Transmission rate up to 20 kBaud

• Compliant to LIN specification 1.3,2.0 and 2.1

• Very high ESD robustness,+/-11 kV according to IEC61000-4-2

• Optimized for low electromagnetic emission (EME)

• Optimized for high immunity against electromagnetic interference (EMI)

• Very low current consumption in sleep mode with Wake-Up functions

• Wake-Up source detection

• Very low leakage current on the BUS output

• Digital I/O levels compatible for 3.3 V and 5 V microcontrollers

• Suitable for 12 V and 24 V board net

• Bus short to VBAT protection and Bus short to GND handling

• Over temperature protection and Under voltage detection

• Flash mode

• Green Product (RoHs compliant)

• AEC Qualified

Product Specification

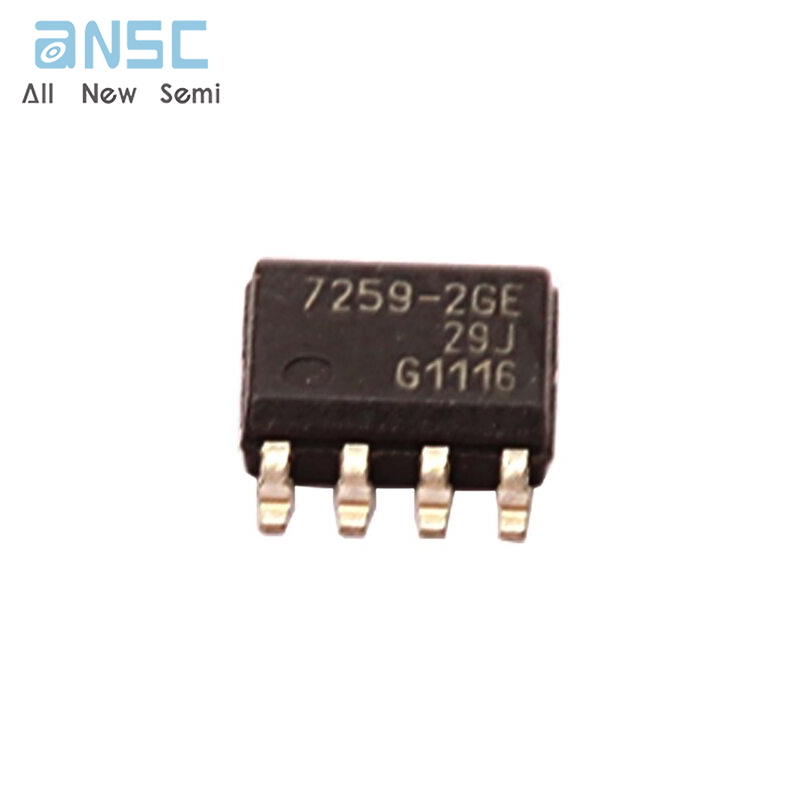

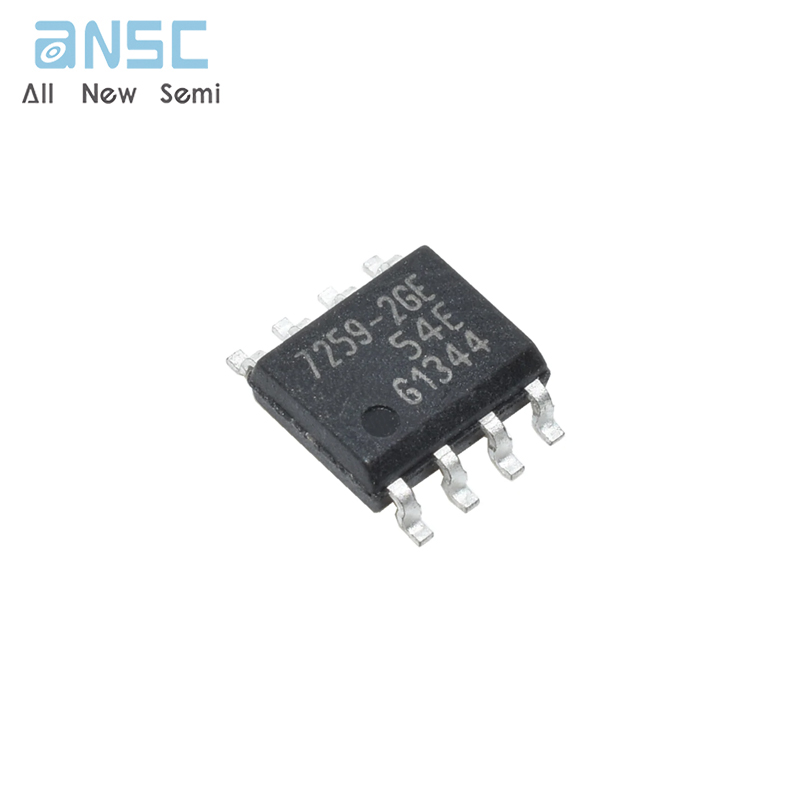

Product Photos

For more product information, please download the PDF
