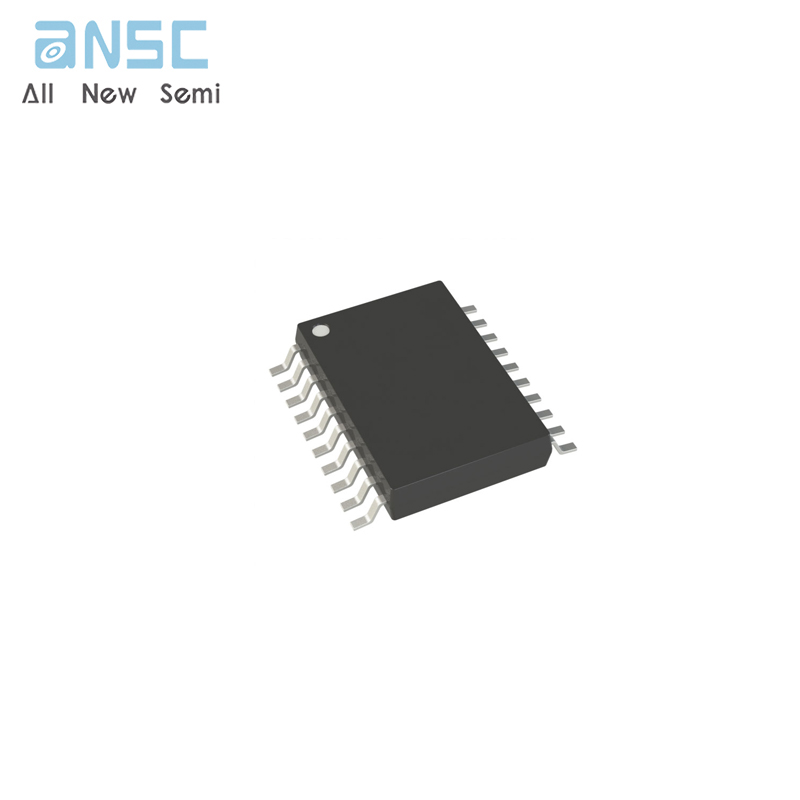

Hot-selling and scarce ADM3222ARS Low Power, +3.3 V, RS-232 Line Drivers/Receivers SSOP20 spot stock

Product Descriptions

The ADM3202/ADM3222/ADM1385 transceivers are high speed, 2-channel RS-232/V.28 interface devices which operate from a single +3.3 V power supply.

Low power consumption and a shutdown facility (ADM3222/ ADM1385) makes them ideal for battery powered portable instruments.

The ADM3202/ADM3222/ADM1385 conforms to the EIA- 232E and CCITT V.28 specifications and operates at data rates up to 460 kbps.

Four external 0.1 µF charge pump capacitors are used for the voltage doubler/inverter permitting operation from a single +3.3 V supply.

The ADM3222 contains additional enable and shutdown circuitry. The EN input may be used to three-state the receiver outputs. The SD input is used to power down the charge pump and transmitter outputs reducing the quiescent current to less than 0.5 µA. The receivers remain enabled during shutdown unless disabled using EN.

The ADM1385 contains a driver disable mode and a complete shutdown mode.

The ADM3202 is available in a 16-lead DIP, narrow and wide SOIC as well as a space saving 20-lead TSSOP package. The ADM3222 is available in 18-lead DIP, SO and in 20-lead SSOP and TSSOP. The ADM1385 is available in a 20-lead SSOP package, which is pin compatible with the LTC1385 CG.

Product Features

460 kbps Data Rate

Specified at +3.3 V

Meets EIA-232E Specifications

0.1  F Charge Pump Capacitors

Low Power Shutdown (ADM3222E and ADM1385)

DIP, SO, SOIC, SSOP and TSSOP Package Options

Upgrade for MAX3222/32 and LTC1385

Product Applications

General Purpose RS-232 Data Link

Portable Instruments

Printers

Palmtop Computers

PDAs

Product Specification

Product Photos

For more product information, please download the PDF
