Hot-selling and scarce MM74HCT04N Inverter IC 6 Channel 14-MDIP spot stock

Product Descriptions

The MM74HCT04 is a logic function fabricated by using advanced silicon−gate CMOS technology which provides the inherent benefits of CMOS—low quiescent power and wide power supply range. This device is input and output characteristic as well as pin−out compatible with standard 74LS logic families. The MM74HCT04, triple buffered, hex inverters, features low power dissipation and fast switching times. All inputs are protected from static discharge by internal diodes to VCC and ground.

MM74HCT devices are intended to interface between TTL and NMOS components and standard CMOS devices. These parts are also plug−in replacements for LS−TTL devices and can be used to reduce power consumption in existing designs.

Product Features

• TTL, LS Pin−out and Threshold Compatible

• Fast Switching: tPLH, tPHL = 10 ns (typ.)

• Low Power: 10  W at DC, 3.7 mW at 5 MHz

• High Fan Out: ≥10 LS Loads

• Inverting, Triple Buffered

• These Devices are Pb−Free, Halide Free and are RoHS Compliant

Product Specification

    ​

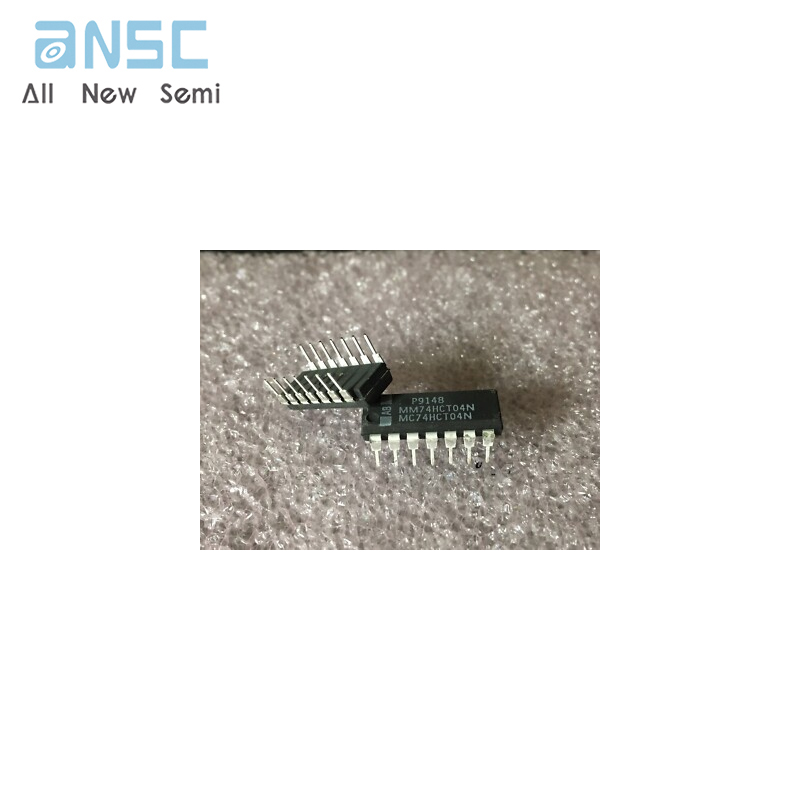

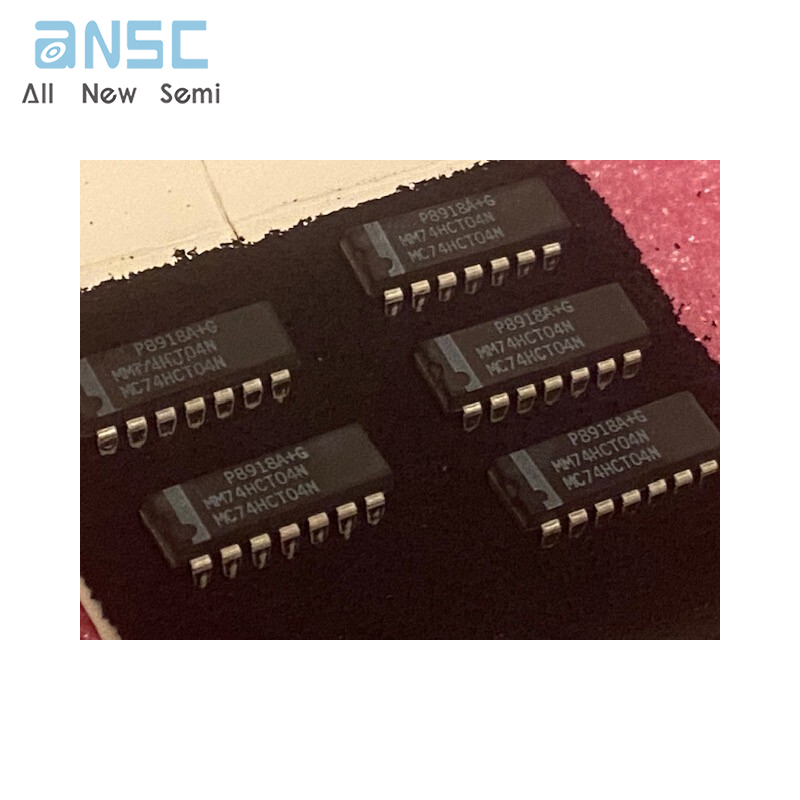

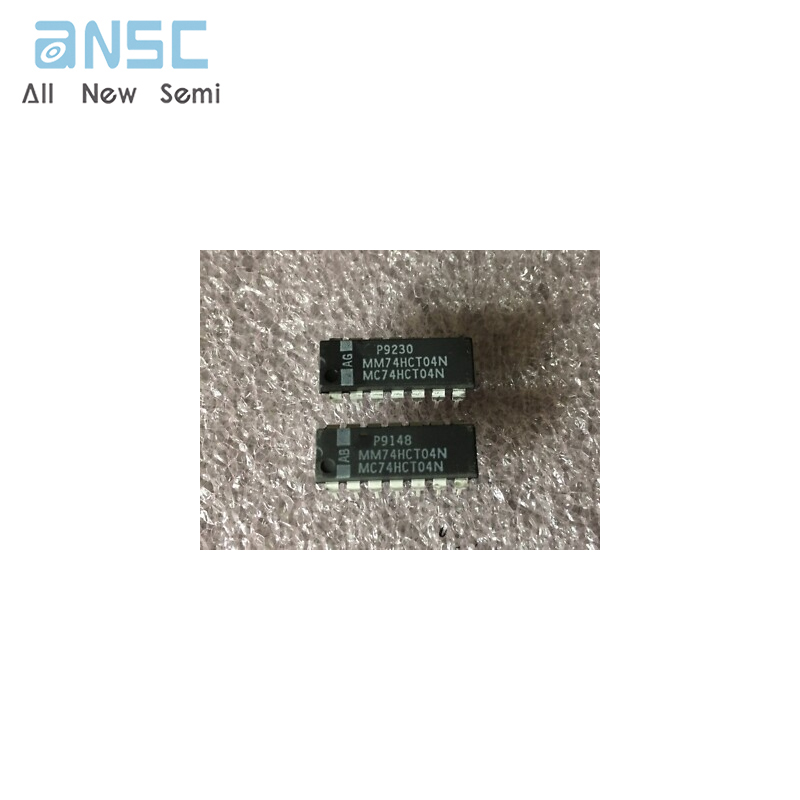

Product Photos

For more product information, please download the PDF
