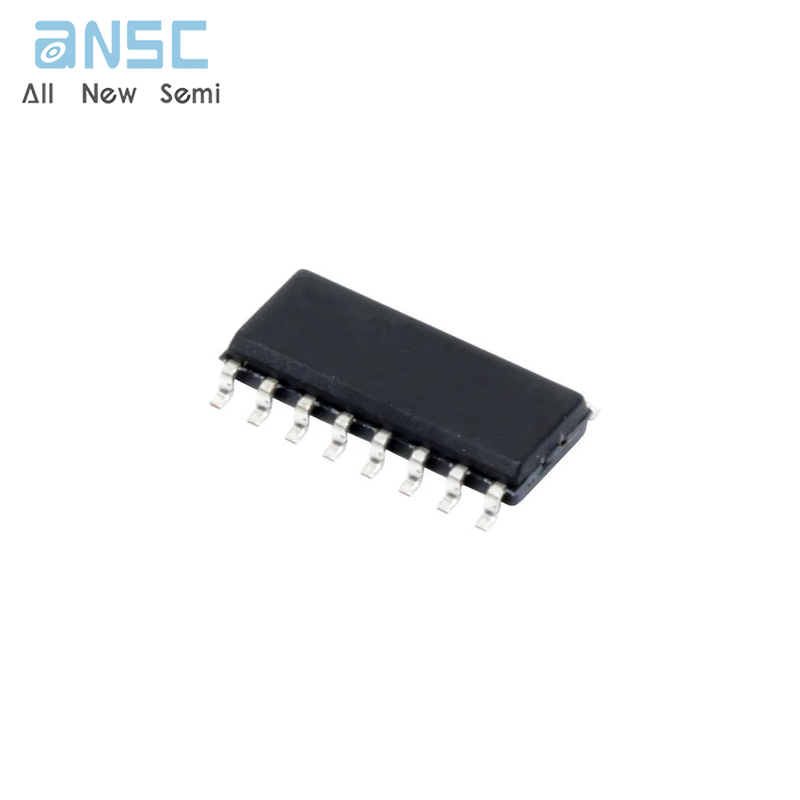

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce CD74AC157M QUADRUPLE 2-LINE TO 1-LINE DATA SELECTORS/MULTIPLEXERS SOP16 spot stock
Manufacturer Product Number
CD74AC157M
Description
CD74AC157M QUADRUPLE 2-LINE TO 1-LINE DATA SELECTORS/MULTIPLEXERS SOP16 spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
These quadruple 2-line to 1-line data selectors/multiplexers are designed for 1.5-V to 5.5-V VCC operation.
The ’AC157 devices feature a common strobe (G) input. When the strobe is high, all outputs are low. When the strobe is low, a 4-bit word is selected from one of two sources and is routed to the four outputs. The devices provide true data.
Product Features
AC Types Feature 1.5-V to 5.5-V Operation and Balanced Noise Immunity at 30% of the Supply Voltage
Speed of Bipolar F, AS, and S, With Significantly Reduced Power Consumption
Balanced Propagation Delays
±24-mA Output Drive Current
– Fanout to 15 F Devices
SCR-Latchup-Resistant CMOS Process and Circuit Design
Exceeds 2-kV ESD Protection Per MIL-STD-883, Method 3015
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-CD74AC157M |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Signal Switches, Multiplexers | |
| Decoders | |
| Manufacturer | - |
| Series | 74AC |
| Packaging | Bulk |
| Part Status | Active |
| Type | Multiplexer |
| Circuit | 4 x 2:1 |
| Independent Circuits | 1 |
| Current - Output High, Low | 24mA, 24mA |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 1.5V ~ 5.5V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | 74AC157 |
