Hot sale original 74VHC14MTC INVERTER, AHC/VHC/H/U/V SERIES, IC Channel

Manufacturer Product Number
74VHC14MTC
Description

74VHC14MTC INVERTER, AHC/VHC/H/U/V SERIES, IC Channel

Package Condition
Tape & Reel (TR)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

General Description
The VHC14 is an advanced high speed CMOS Hex Schmitt Inverter fabricated with silicon gate CMOS technology. It achieves the high speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation. Pin configuration and function are the same as the VHC04 but the inputs have hysteresis between the positive-going and negative-going input thresholds, which are capable of transforming slowly changing input signals into sharply defined, jitter-free output signals, thus providing greater noise margin than conventional inverters.
An input protection circuit ensures that 0V to 7V can be applied to the input pins without regard to the supply voltage. This device can be used to interface 5V to 3V systems and two supply systems such as battery back up. This cir cuit prevents device destruction due to mismatched supply and input voltages.
Features
■ High Speed: tPD 5.5 ns (typ) at VCC 5V
■ Low power dissipation: ICC 2 μA (Max) at TA 25°C
■ High noise immunity: VNIH VNIL 28% VCC (Min)
■ Power down protection is provided on all inputs
■ Low noise: VOLP 0.8V (Max)
■ Pin and function compatible with 74HC14

Product Description

Type Description
ANSC PART# ANSC - 74VHC14MTC
Category Integrated Circuits (ICs)
Logic
Gates and Inverters
Mfr Original
Series *
Packaging Bulk
Part Status Active
Base Product Number 74VHC14

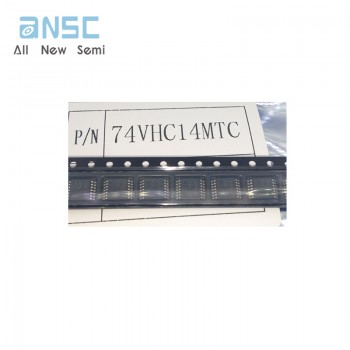

Product Photos

74VHC14MTC

Product datasheet

For more information, please download
