Hot-selling and scarce SN74F21DR DUAL 4-INPUT POSITIVE-AND GATES SOP14 spot stock
Manufacturer Product Number
SN74F21DR
Description

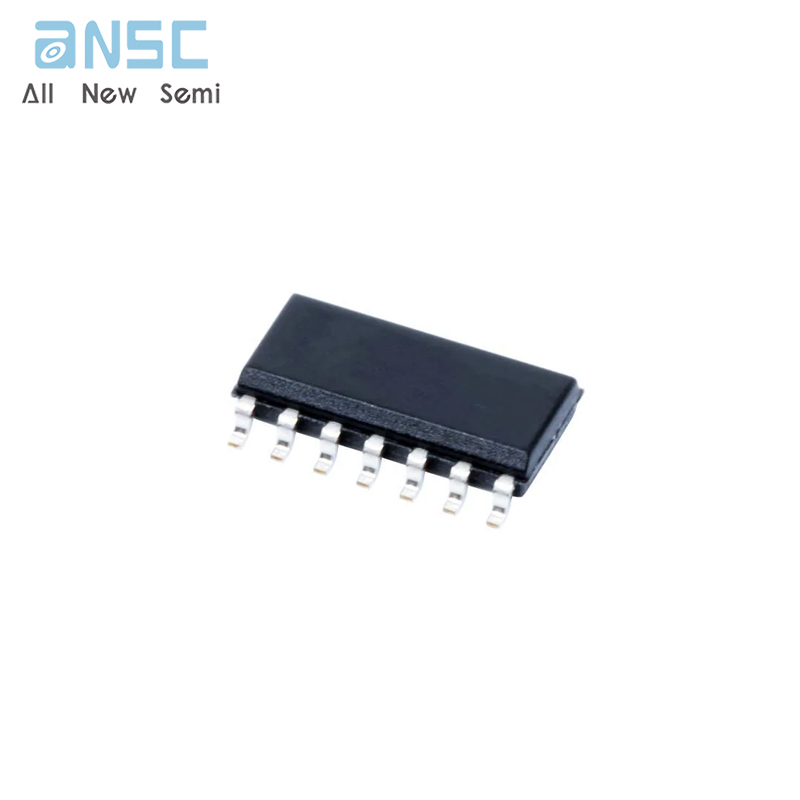

SN74F21DR DUAL 4-INPUT POSITIVE-AND GATES SOP14 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
These devices contain two independent 4-input AND gates. They perform the Boolean functions Y = A • B • C • D or Y = A + B + C + D in positive logic.
The SN54F21 is characterized for operation over the full military temperature range of −55°C to 125°C. The SN74F21 is characterized for operation from 0°C to 70°C.
Product Features
• Package Options Include Plastic Small-Outline Packages, Ceramic Chip Carriers, and Standard Plastic and Ceramic 300-mil DIPs
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SN74F21DR |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | - |
| Series | 74F |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Logic Type | AND Gate |
| Number of Circuits | 2 |
| Number of Inputs | 4 |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | 4.3 mA |
| Current - Output High, Low | 1mA, 20mA |
| Input Logic Level - Low | 0.8V |
| Input Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 5.1ns @ 5V, 50pF |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOIC |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Base Product Number | 74F21 |
