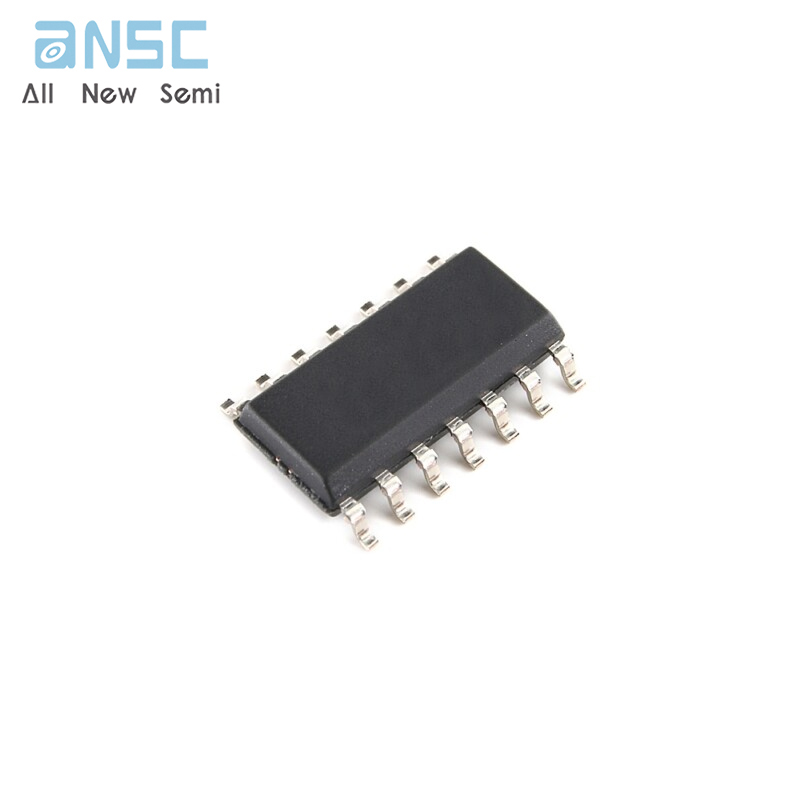

Hot-selling and scarce DM74ALS38AM Quadruple 2-Input NAND Buffer with Open-Collector Outputs SOP14 spot stock
Manufacturer Product Number
DM74ALS38AM
Description
DM74ALS38AM Quadruple 2-Input NAND Buffer with Open-Collector Outputs SOP14 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
This device contains four independent gates, each of which performs the logic NAND function. The open-collector out-puts require external pull-up resistors for proper logical operation.
Product Features
■ Switching specifications at 50 pF
■ Switching specifications guaranteed over full tempera ture and VCC range
■ Advanced oxide-isolated, ion-implanted Schottky TTL process
■ Functionally and pin for pin compatible with LS TTL counterpart
■ Improved AC performance over LS38
■ Improved line receiving characteristics
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-DM74ALS38AM |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | - |
| Series | 74ALS |
| Packaging | Tube |
| Part Status | Obsolete |
| Logic Type | NAND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | Open Collector |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Output High, Low | -, 24mA |
| Input Logic Level - Low | 0.8V |
| Input Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 33ns @ 5V, 50pF |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOIC |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Base Product Number | 74ALS38 |
