Hot-selling and scarce SN74AS00D QUADRUPLE 2-INPUT POSITIVE-NAND GATES SOP14 spot stock
Manufacturer Product Number
SN74AS00D
Description
SN74AS00D QUADRUPLE 2-INPUT POSITIVE-NAND GATES SOP14 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
These devices contain four independent 2-input positive-NAND gates. They perform the Boolean functions Y = A • B or Y = A + B in positive logic.
The SN54ALS00A and SN54AS00 are characterized for operation over the full military temperature range of −55°C to 125°C. The SN74ALS00A and SN74AS00 are characterized for operation from 0°C to 70°C.
Product Features
• Package Options Include Plastic Small-Outline (D) Packages, Ceramic Chip Carriers (FK), and Standard Plastic (N) and Ceramic (J) 300-mil DIPs
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SN74AS00D |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | - |
| Series | 74AS |
| Packaging | Tube |
| Part Status | Obsolete |
| Logic Type | NAND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Output High, Low | 2mA, 20mA |
| Input Logic Level - Low | 0.8V |
| Input Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 4.5ns @ 5V, 50pF |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOIC |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Base Product Number | 74AS00 |

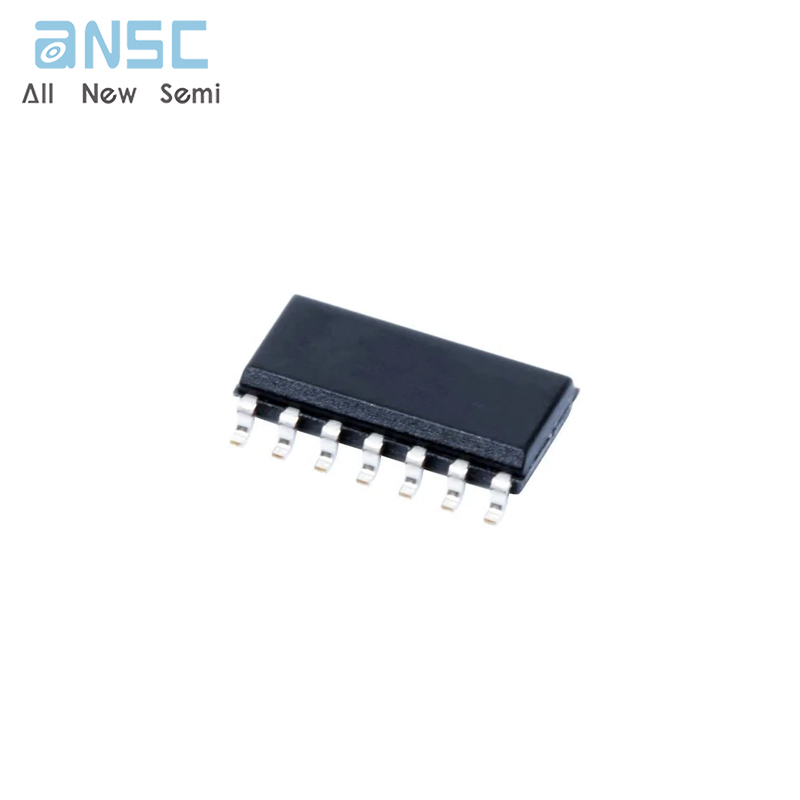

Product Photos
