Octal D-type flip-flop 3-State Electronic components BOM Integrated circuit IC 74ABT574AD

Product Descriptions

The 74ABT574A high-performance BiCMOS device combines low static and dynamic power dissipation with high speed and high output drive.

The 74ABT574A is an 8-bit, edge triggered register coupled to eight 3-State output buffers. The clock input (CP) and output enable input (OE) control gates, control the two sections of the device independently. The state of each data input (Dn, one set-up time before the Low-to-High clock transition) is transferred to the Q output of the corresponding flip-flop.

When OE is Low, the stored data appears at the outputs. When OE is High, the outputs are in the High-impedance “off” state, which means they do not drive or load the bus.

The 3-State output buffers are designed to drive heavily loaded 3-State buses, MOS memories, or MOS microprocessors. The active-Low Output Enable (OE) controls all eight 3-State buffers independent of the clock operation.

Product Features

 74ABT574A is flow-through pinout version of 74ABT374A

 Inputs and outputs on opposite side of package allow easy interface to microprocessors

 3-State outputs for bus interfacing

 Power-on 3-state

 Power-on reset

 Common output enable

 Latch-up protection exceeds 500 mA per JESD78B class II level A

 ESD protection:

 HBM JESD22-A114F exceeds 2000 V

 MM JESD22-A115-A exceeds 200 V

 Live insertion/extraction permitted.

Specifications

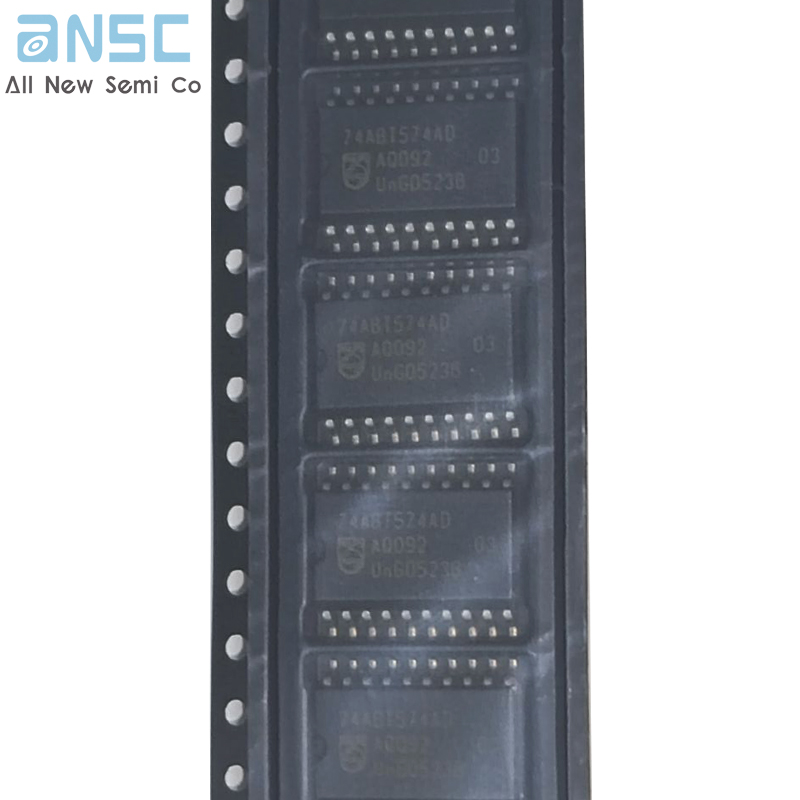

Actual product photos
