Hot sale original electronics AD8013AR-14 Video Amplifiers SGL Supply Low Power Triple *SMD mount SOIC-14 140MHz
Manufacturer Product Number
AD8013AR-14
Description

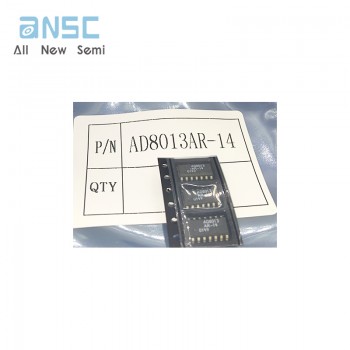

AD8013AR-14 Video Amplifiers SGL Supply Low Power Triple *SMD mount SOIC-14 140MHz
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| PRODUCT DESCRIPTION The AD8013 is a low power, single supply, triple video amplifier. Each of the three amplifiers has 30 mA of output current, and is optimized for driving one back terminated video load (150 Ω) each. Each amplifier is a current feedback amplifier and features gain flatness of 0.1 dB to 60 MHz while offering differential gain and phase error of 0.02% and 0.06°. This makes the AD8013 ideal for broadcast and professional video electronics. FEATURES Three Video Amplifiers in One Package Drives Large Capacitive Load Excellent Video Specifications (RL = 150 V) Gain Flatness 0.1 dB to 60 MHz 0.02% Differential Gain Error 0.06° Differential Phase Error Low Power Operates on Single +5 V to +13 V Power Supplies 4 mA/Amplifier Max Power Supply Current High Speed 140 MHz Unity Gain Bandwidth (3 dB) Fast Settling Time of 18 ns (0.1%) 1000 V/ms Slew Rate High Speed Disable Function per Channel Turn-Off Time 30 ns Easy to Use 95 mA Short Circuit Current Output Swing to Within 1 V of Rails APPLICATIONS LCD Displays Video Line Driver Broadcast and Professional Video Computer Video Plug-In Boards Consumer Video RGB Amplifier in Component Systems |
Product Description
| Type | Description |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Video Amps and Modules | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Applications | Current Feedback |
| Output Type | - |
| Number of Circuits | 3 |
| -3db Bandwidth | 140 MHz |
| Slew Rate | 1000V/µs |
| Current - Supply | 3.5 mA |
| Current - Output / Channel | 30 mA |
| Voltage - Supply, Single/Dual (±) |
4.2V ~ 13V, ±2.1V ~ 6.5V |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOIC |
| Base Product Number | AD8013 |
