Hot sale Original CA3140AT IC 4.5MHz, BiMOS Operational Amplifier with MOSFET Input/Bipolar Output
Manufacturer Product Number
CA3140AT
Description
CA3140AT IC 4.5MHz, BiMOS Operational Amplifier with MOSFET Input/Bipolar Output
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| The CA3140A and CA3140 are integrated circuit operational amplifiers that combine the advantages of high voltage PMOS transistors with high voltage bipolar transistors on a single monolithic chip. |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- CA3140AT |
| Ihs Manufacturer | Original |
| Part Package Code | BCY |
| Package Description | METAL CAN-8 |
| Pin Count | 8 |
| Amplifier Type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Bias Current-Max (IIB) @25C | 0.00004 µA |
| Common-mode Reject Ratio-Min | 70 dB |
| Common-mode Reject Ratio-Nom | 90 dB |
| Frequency Compensation | YES |
| Input Offset Voltage-Max | 5000 µV |
| JESD-30 Code | O-MBCY-W8 |
| JESD-609 Code | e0 |
| Low-Bias | YES |
| Low-Offset | NO |
| Neg Supply Voltage Limit-Max | -18 V |
| Neg Supply Voltage-Nom (Vsup) | -15 V |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Operating Temperature-Max | 125 °C |
| Operating Temperature-Min | -55 °C |
| Package Body Material | METAL |
| Package Equivalence Code | CAN8,.2 |
| Package Shape | ROUND |
| Package Style | CYLINDRICAL |
| Qualification Status | Not Qualified |
| Slew Rate-Nom | 7 V/us |
| Supply Current-Max | 6 mA |
| Supply Voltage Limit-Max | 18 V |
| Supply Voltage-Nom (Vsup) | 15 V |
| Surface Mount | NO |
| Technology | BIMOS |
| Temperature Grade | MILITARY |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | WIRE |
| Terminal Position | BOTTOM |
| Unity Gain BW-Nom | 4500 |
| Voltage Gain-Min | 20000 |

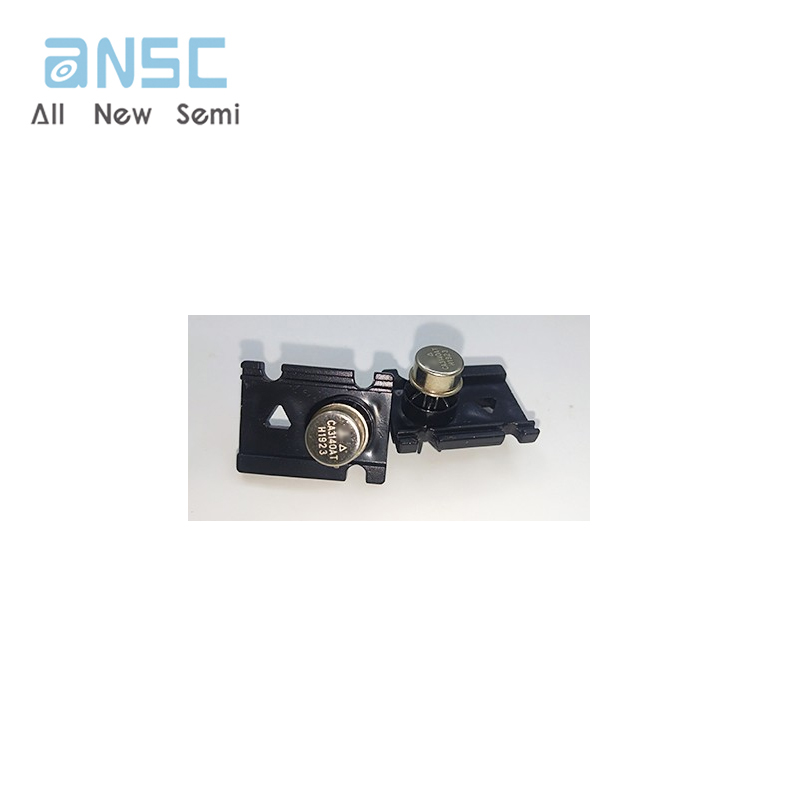

Product Photos

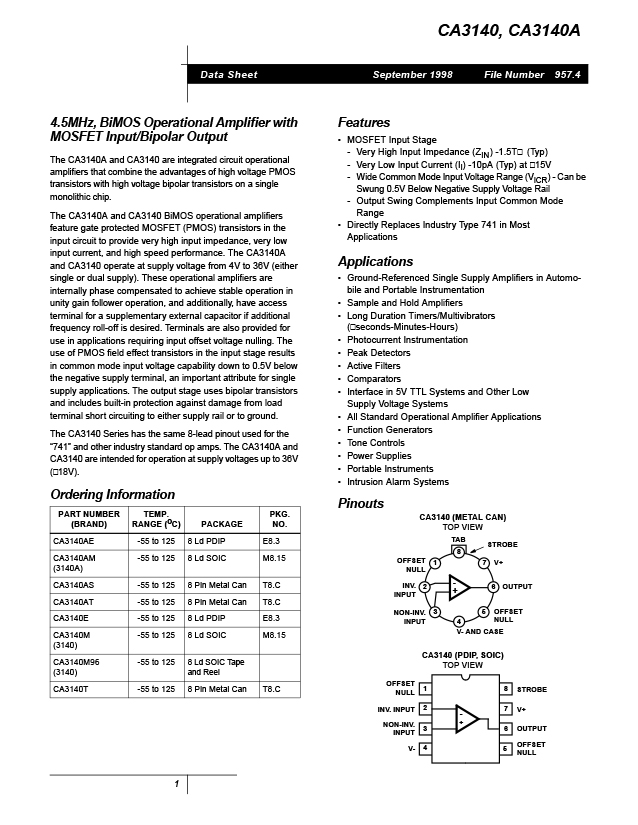

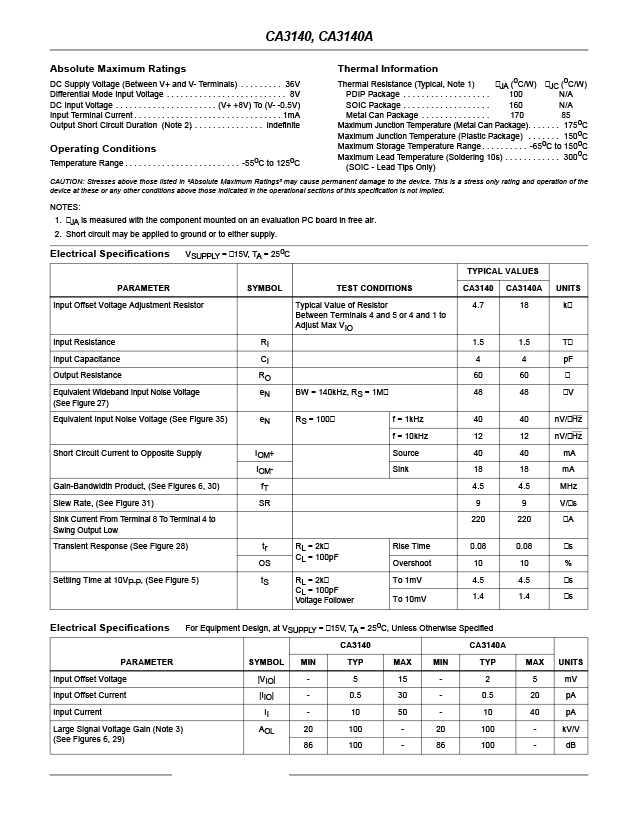

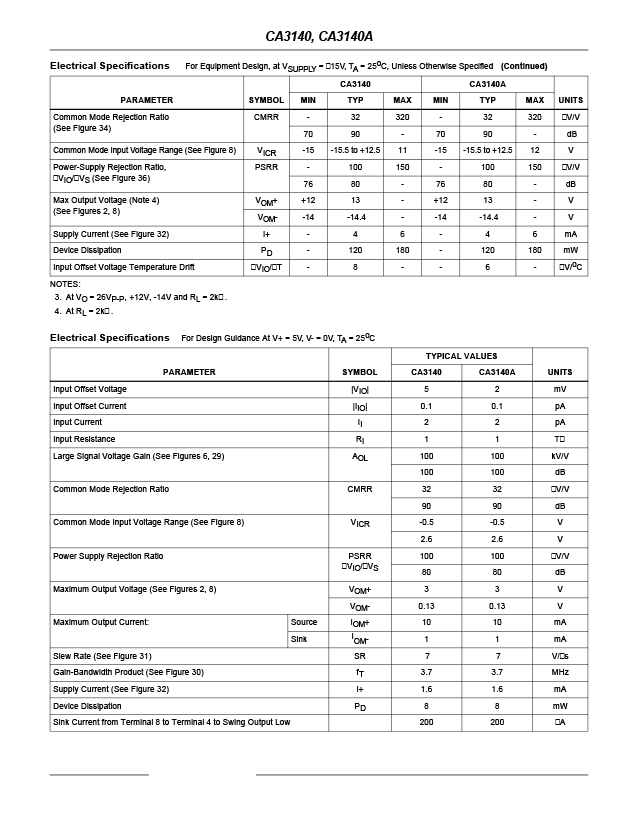

Product datasheet
For more information, please download
