Spot sales of TL074CDR LOW-NOISE JFET-INPUT OPERATIONAL AMPLIFIERS SOP14
Manufacturer Product Number
TL074CDR
Description
TL074CDR LOW-NOISE JFET-INPUT OPERATIONAL AMPLIFIERS SOP14
Package Condition
TAPE & REEL
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The JFET-input operational amplifiers in the TL07x series are similar to the TL08x series, with low input bias and offset currents and fast slew rate. The low harmonic distortion and low noise make the TL07x series ideally suited for high-fidelity and audio preamplifier applications. Each amplifier features JFET inputs (for high input impedance) coupled with bipolar output stages integrated on a single monolithic chip.
The C-suffix devices are characterized for operation from 0°C to 70°C. The I-suffix devices are characterized for operation from −40°C to 85°C. The M-suffix devices are characterized for operation over the full military temperature range of −55°C to 125°C.
Product Features
Low Power Consumption
Wide Common-Mode and Differential Voltage Ranges
Low Input Bias and Offset Currents
Output Short-Circuit Protection
Low Total Harmonic Distortion. . . 0.003 percent Typ
Low Noise
Vn = 18 nV/√Hz Typ at f = 1 kHz
High Input Impedance . . . JFET Input Stage
Internal Frequency Compensation
Latch-Up-Free Operation
High Slew Rate . . . 13 V/µs Typ
Common-Mode Input Voltage Range Includes VCC+
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-TL074CDR |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, Op Amps, Buffer Amps | |
| Mfr | - |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Amplifier Type | J-FET |
| Number of Circuits | 4 |
| Output Type | - |
| Slew Rate | 13V/µs |
| Gain Bandwidth Product | 5.25 MHz |
| Current - Input Bias | 65 pA |
| Voltage - Input Offset | 3 mV |
| Current - Supply | 1.4mA (x4 Channels) |
| Voltage - Supply Span (Min) | 10 V |
| Voltage - Supply Span (Max) | 30 V |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOIC |
| Base Product Number | TL074 |

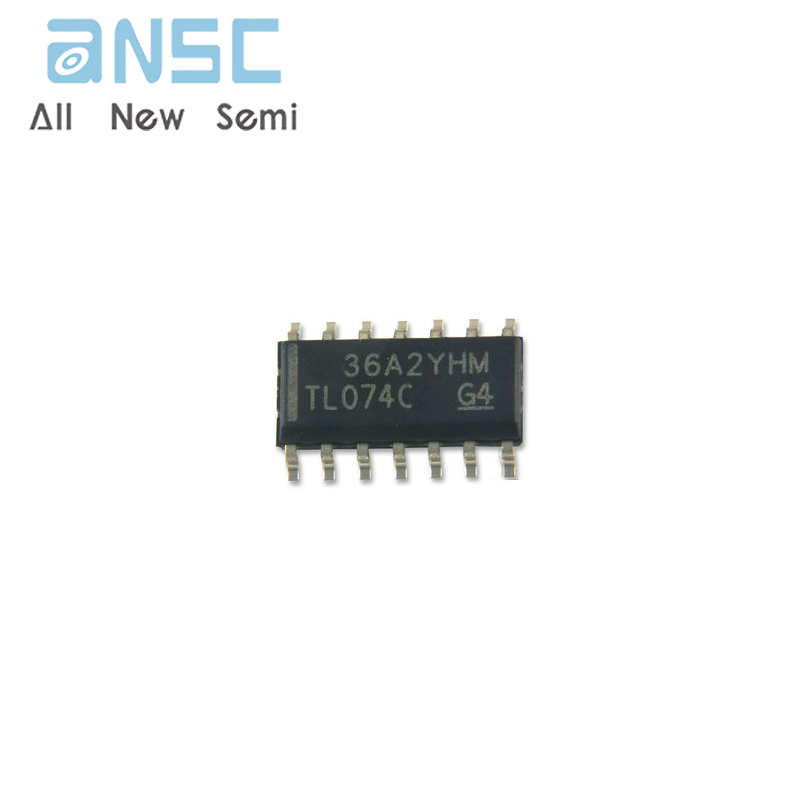

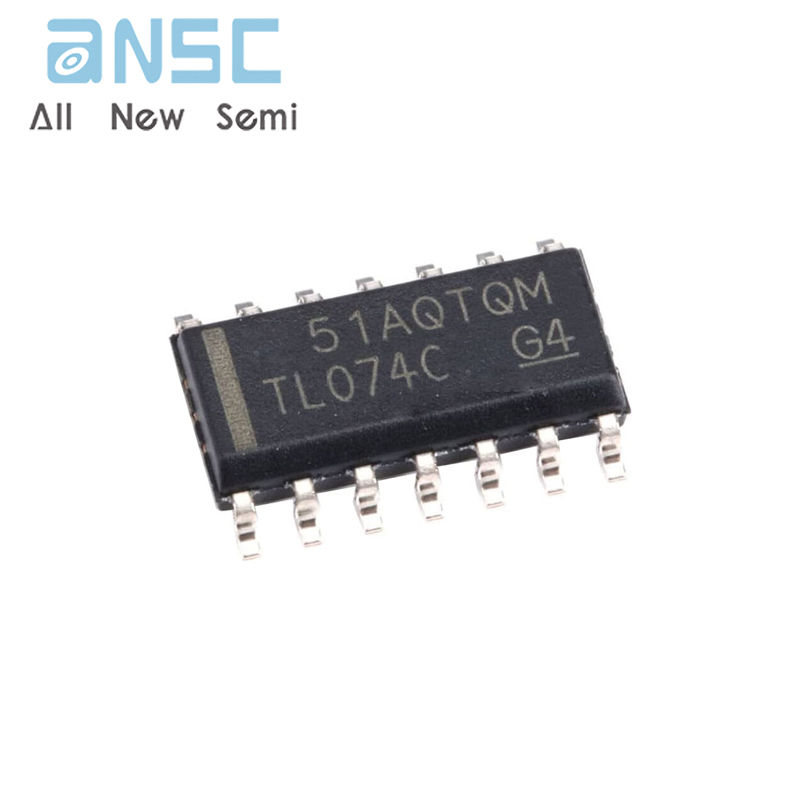

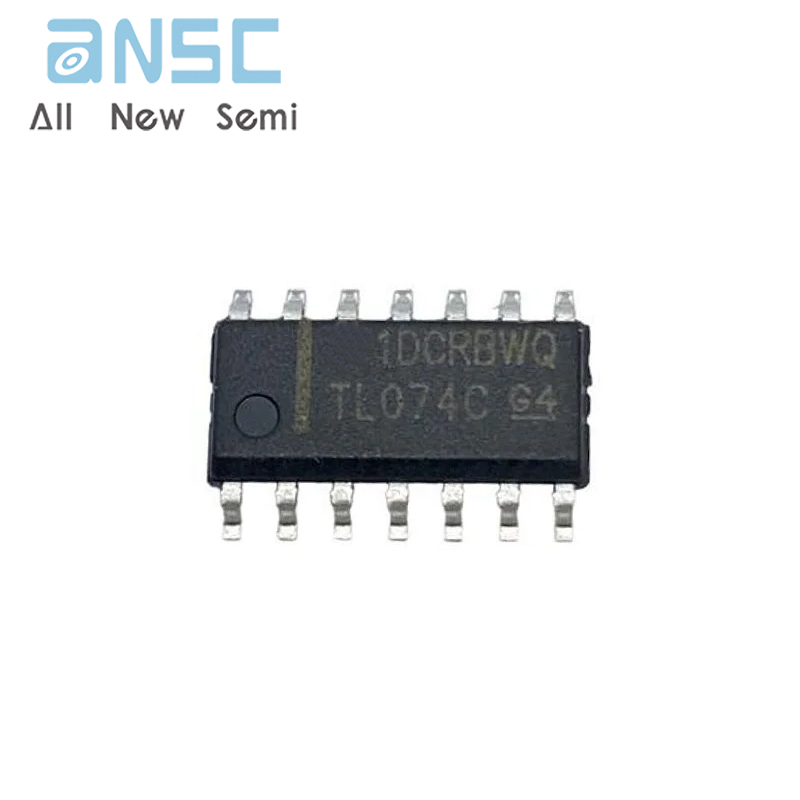

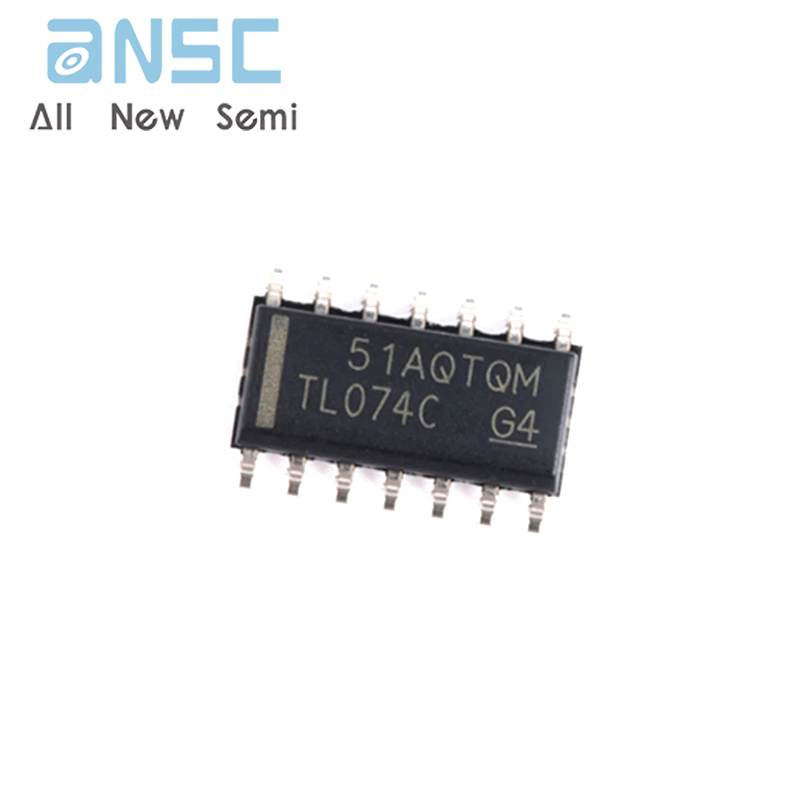

Product Photos
For more product information, please download the PDF
