Hot-selling and scarce TDA1519C/N3C 22WBTL or 2 x 11Wstereo power amplifier SIL9P spot stock

Product Descriptions

The TDA1519C is an integrated class-B dual output amplifier in a 9-lead plastic single in-line (SIL) power or 20-lead heatsink small outline package.

For the TDA1519CTH (SOT418-2) the heatsink is positioned on top of the package, thereby allowing an external heatsink to be mounted on top. The heatsink of the TDA1519CTD (SOT397-1) is facing the PCB thereby allowing the heatsink to be soldered on the copper area of the PCB.

Product Features

• Requires very few external components for Bridge-Tied Load (BTL)

• Stereo or BTL application

• High output power

• Low offset voltage at output (important for BTL)

• Fixed gain

• Good ripple rejection

• Mute/standby switch

• Load dump protection

• AC and DC short-circuit-safe to ground and VP

• Thermally protected

• Reverse polarity safe

• Capability to handle high energy on outputs (VP = 0 V)

• No switch-on/switch-off plop

• Protected against electrostatic discharge

• Low thermal resistance

• Identical inputs (inverting and non-inverting)

• Pin compatible with TDA1519B (TDA1519C and TDA1519CSP).

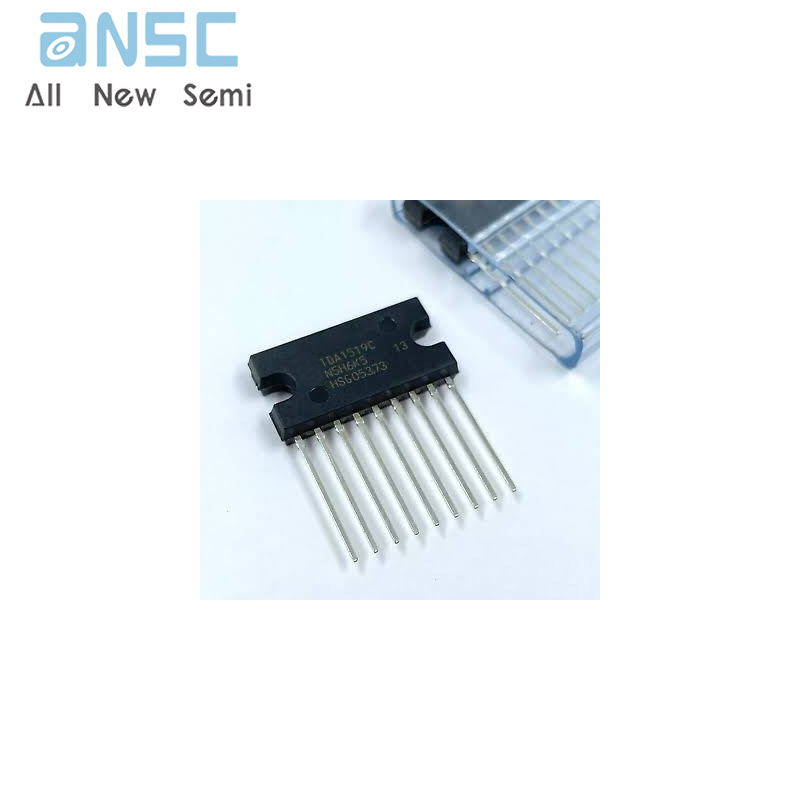

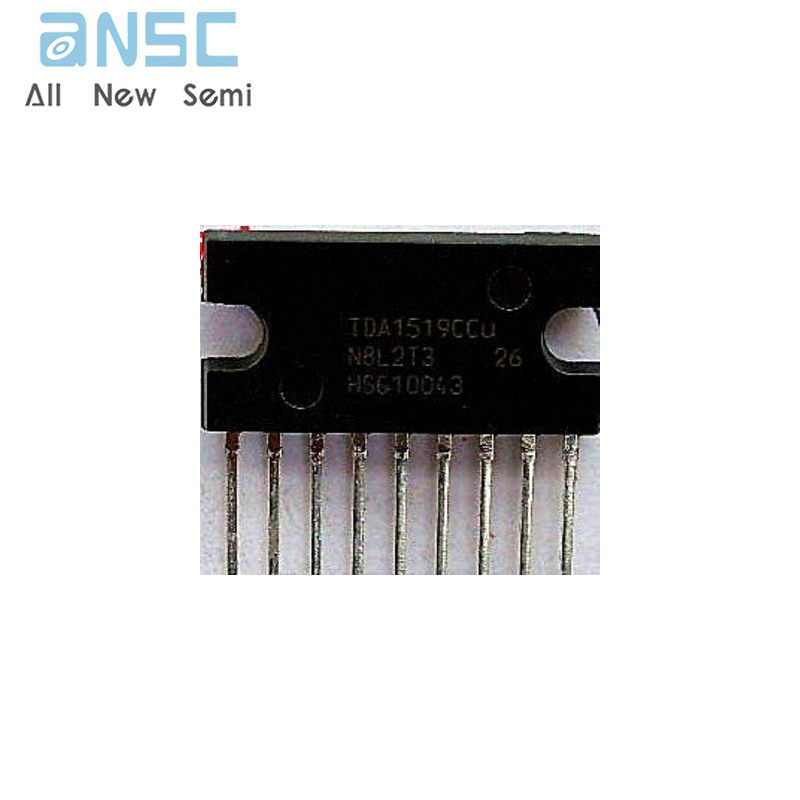

Product Photos

For more product information, please download the PDF
