Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot sale original electronics LM258H Amplifiers IC Dual, 30-V, 700-kHz operational amplifier with -25°C to 85°C operation
Manufacturer Product Number
LM258H
Description
LM258H Amplifiers IC Dual, 30-V, 700-kHz operational amplifier with -25°C to 85°C operation
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Dual Low Power Operational Amplifiers Amplifiers drain, 2) a common mode input voltage range extending to ground/VEE, 3) single supply or split supply operation and 4) pinouts compatible with the popular MC1558 dual operational amplifier. The LM158 series is equivalent to one–half of an LM124. These amplifiers have several distinct advantages over standard operational amplifier types in single supply applications. They can operate at supply voltages as low as 3.0 V or as high as 32 V, with quiescent currents about one–fifth of those associated with the MC1741 (on a per amplifier basis). The common mode input range includes the negative supply, thereby eliminating the necessity for external biasing components in many applications. The output voltage range also includes the negative power supply voltage. • Short Circuit Protected Outputs • True Differential Input Stage • Single Supply Operation: 3.0 V to 32 V • Low Input Bias Currents • Internally Compensated • Common Mode Range Extends to Negative Supply • Single and Split Supply Operation • Similar Performance to the Popular MC1558 • ESD Clamps on the Inputs Increase Ruggedness of the Device without Affecting Operation |
Product Description
| Type | Description |
| ANSC PART# | ANSC- LM258H |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, Op Amps, Buffer Amps | |
| Mfr | Original |
| Series | - |
| Packaging | Bulk |
| Part Status | Active |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 2 |
| Output Type | - |
| Slew Rate | - |
| Gain Bandwidth Product | 1 MHz |
| Current - Input Bias | 45 nA |
| Voltage - Input Offset | 2 mV |
| Current - Supply | 1mA |
| Current - Output / Channel | 40 mA |
| Voltage - Supply Span (Min) | 3 V |
| Voltage - Supply Span (Max) | 32 V |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | TO-99-8 Metal Can |
| Supplier Device Package | TO-99-8 |
| Base Product Number | LM258 |

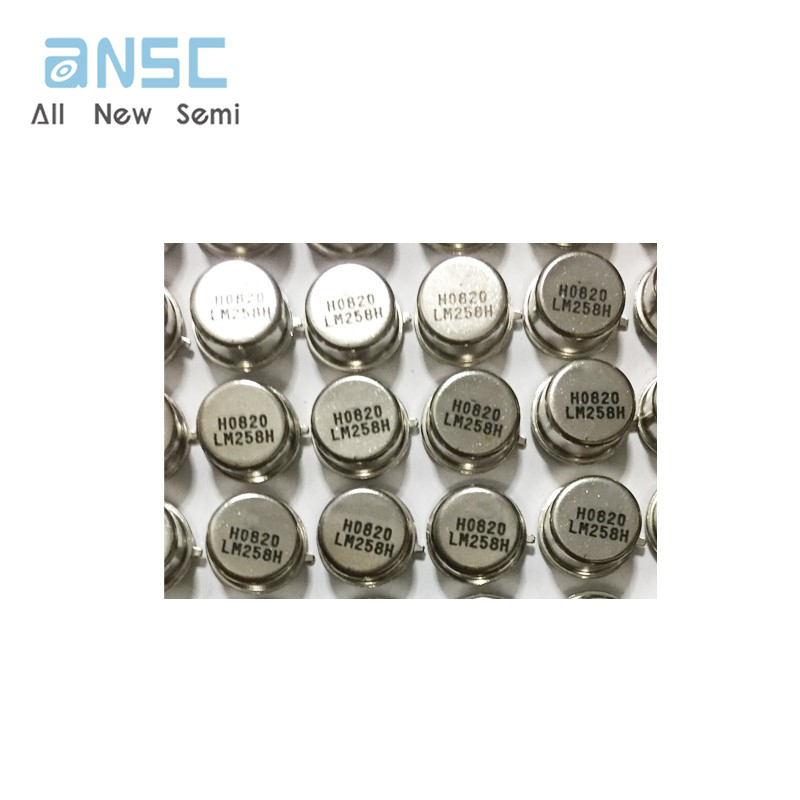

Actual image of the product

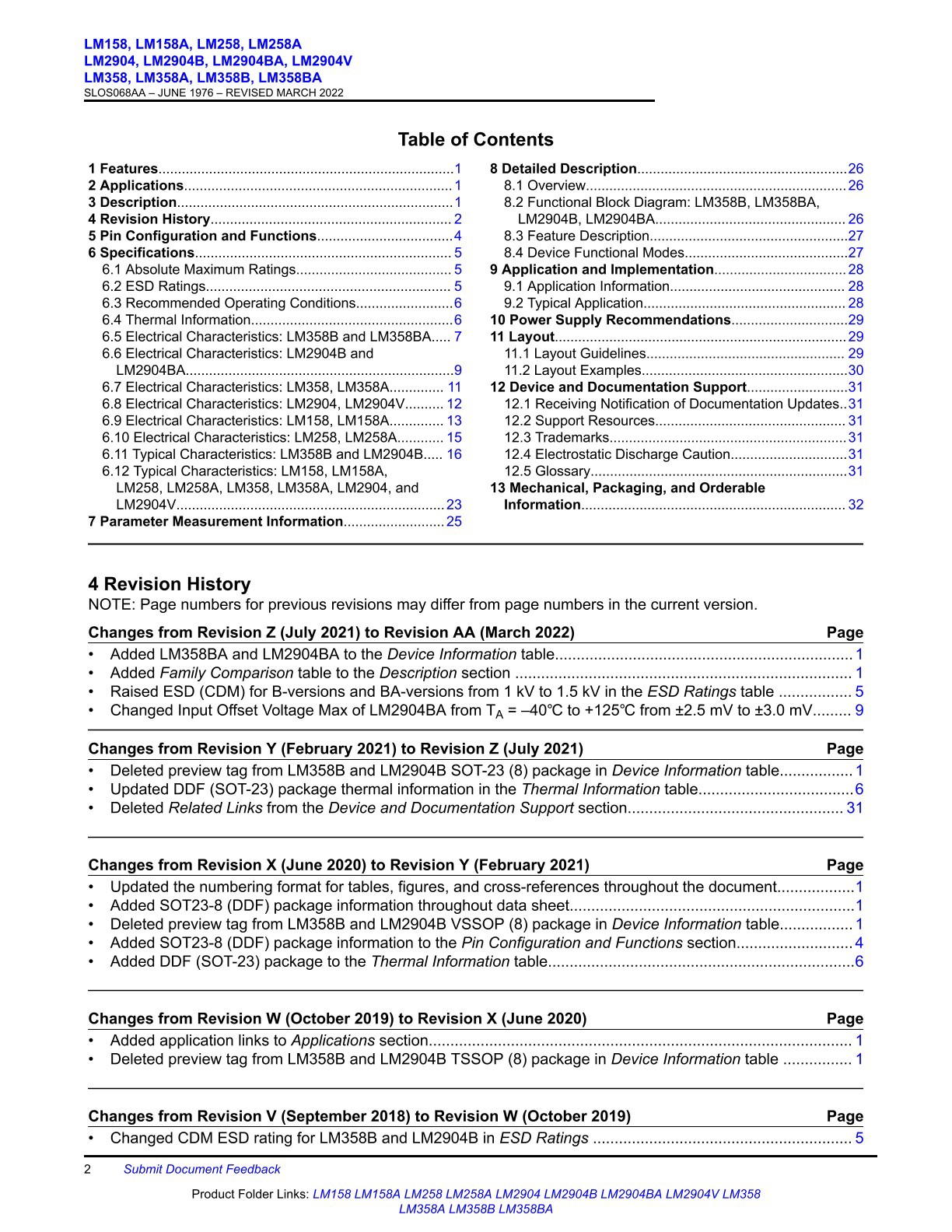

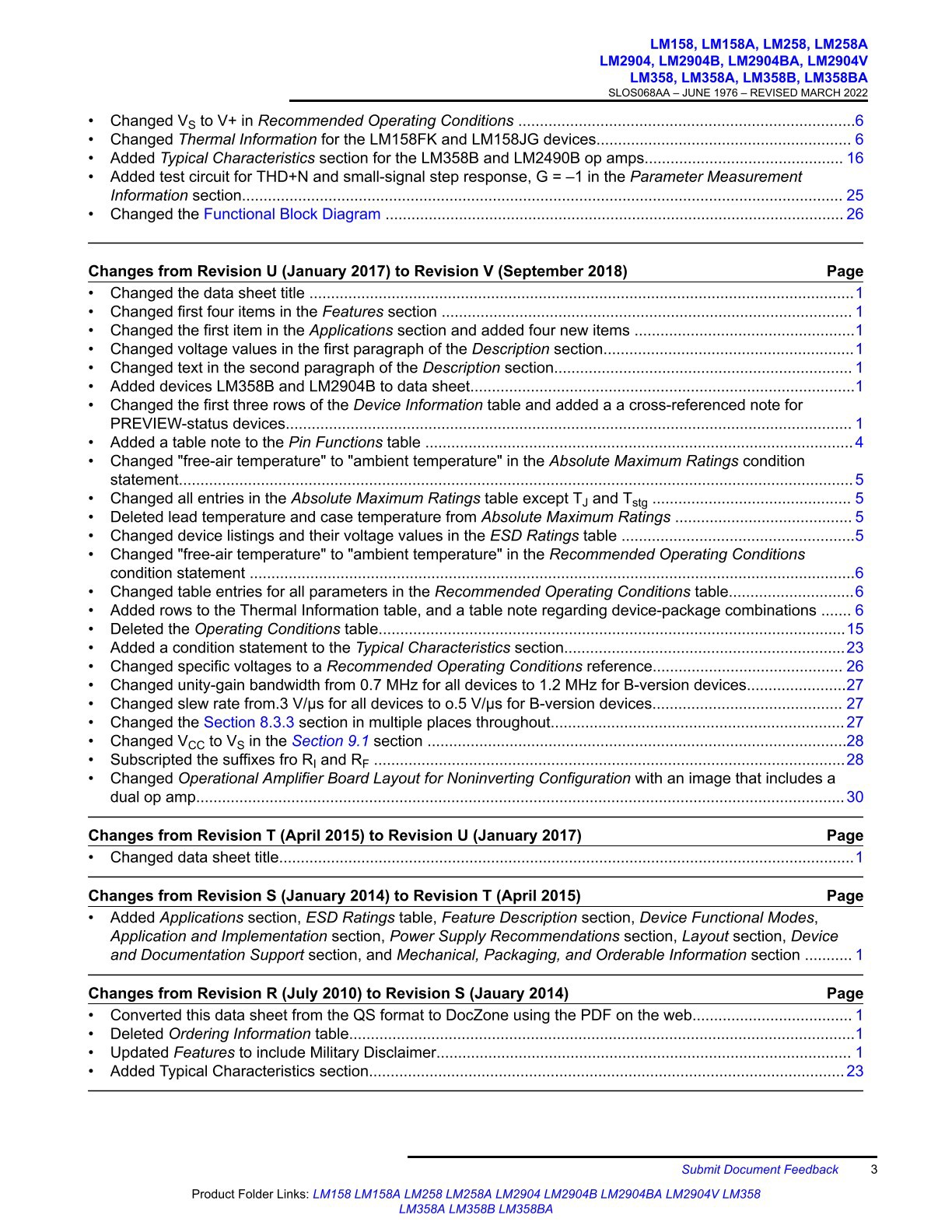

Product datasheet
For more information, please download
