Spot sales of 74AC32M QUAD 2-INPUT OR GATE SOP-14

Product Descriptions

The 74AC32 is an advanced high-speed CMOS QUAD 2-INPUT OR GATE fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS tecnology.

The internal circuit is composed of 2 stages including buffer output, which enables high noise immunity and stable output.

​All inputs and outputs are equipped with protection circuits against static discharge, giving them 2KV ESD immunity and transient excess voltage.

Product Features

■ HIGH SPEED: tPD = 4ns (TYP.) at VCC = 5V

■ LOW POWER DISSIPATION:

ICC = 2µA(MAX.) at TA=25°C

■ HIGH NOISE IMMUNITY:

VNIH = VNIL = 28 % VCC (MIN.)

■ 50Ω TRANSMISSION LINE DRIVING CAPABILITY

■ SYMMETRICAL OUTPUT IMPEDANCE:

|IOH|=IOL = 24mA (MIN)

■ BALANCED PROPAGATION DELAYS:

tPLH ≅ tPHL

■ OPERATING VOLTAGE RANGE:

VCC (OPR) = 2V to 6V

■ PIN AND FUNCTION COMPATIBLE WITH 74 SERIES 32

■ IMPROVED LATCH-UP IMMUNITY

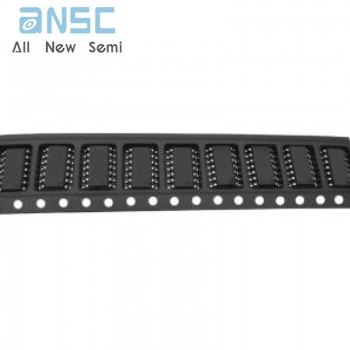

Product Photos
