Hot sale original LT1212CS PBF IC OPAMP GP 4 CIRCUIT 16SO Standard (General Purpose) Amplifier 4 Circuit 16-SO
Manufacturer Product Number
LT1212CS#PBF
Description
LT1212CS#PBF IC OPAMP GP 4 CIRCUIT 16SO Standard (General Purpose) Amplifier 4 Circuit 16-SO
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

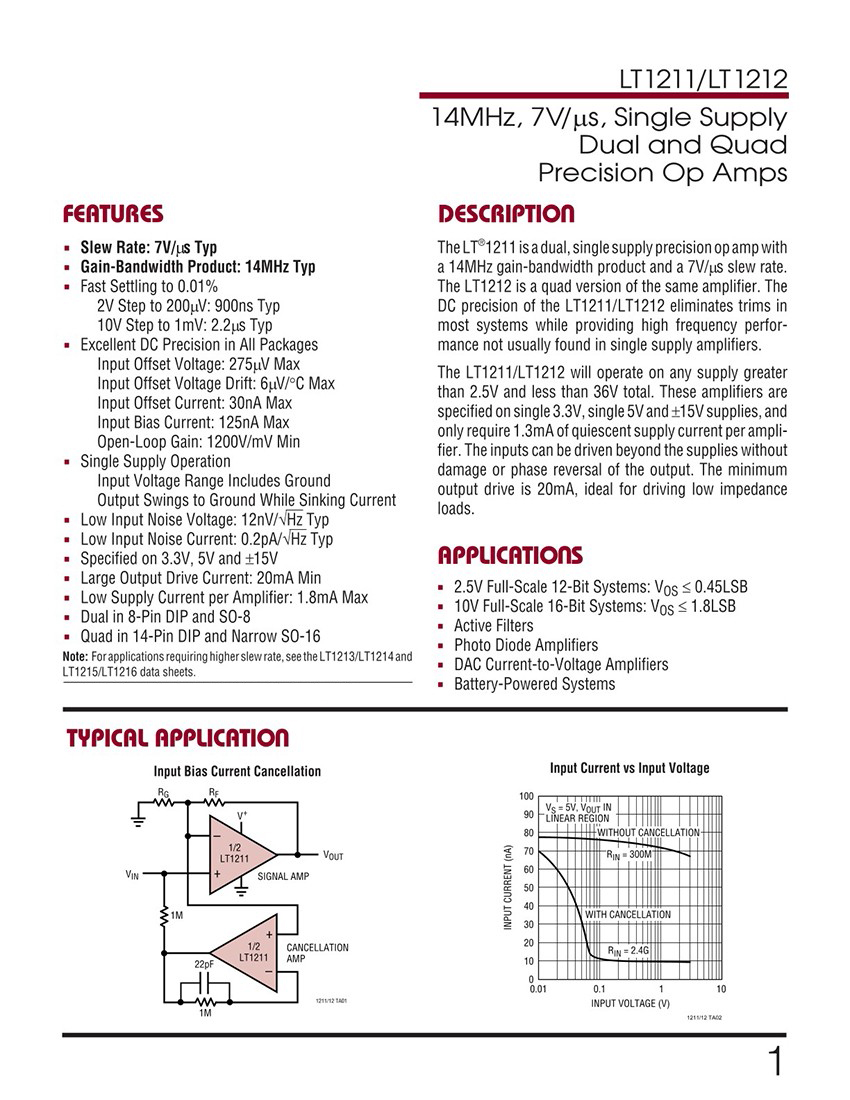

| DESCRIPTION The LT®1211 is a dual, single supply precision op amp with a 14MHz gain-bandwidth product and a 7V/µs slew rate. The LT1212 is a quad version of the same amplifier. The DC precision of the LT1211/LT1212 eliminates trims in most systems while providing high frequency performance not usually found in single supply amplifiers. The LT1211/LT1212 will operate on any supply greater than 2.5V and less than 36V total. These amplifiers are specified on single 3.3V, single 5V and ±15V supplies, and only require 1.3mA of quiescent supply current per amplifier. The inputs can be driven beyond the supplies without damage or phase reversal of the output. The minimum output drive is 20mA, ideal for driving low impedance loads.
FEATURES ■ Slew Rate: 7V/µs Typ ■ Gain-Bandwidth Product: 14MHz Typ ■ Fast Settling to 0.01% 2V Step to 200µV: 900ns Typ 10V Step to 1mV: 2.2µs Typ ■ Excellent DC Precision in All Packages Input Offset Voltage: 275µV Max Input Offset Voltage Drift: 6µV/°C Max Input Offset Current: 30nA Max Input Bias Current: 125nA Max Open-Loop Gain: 1200V/mV Min ■ Single Supply Operation Input Voltage Range Includes Ground Output Swings to Ground While Sinking Current ■ Low Input Noise Voltage: 12nV/√Hz Typ ■ Low Input Noise Current: 0.2pA/√Hz Typ ■ Specified on 3.3V, 5V and ±15V ■ Large Output Drive Current: 20mA Min ■ Low Supply Current per Amplifier: 1.8mA Max ■ Dual in 8-Pin DIP and SO-8 ■ Quad in 14-Pin DIP and Narrow SO-16
APPLICATIONS ■ 2.5V Full-Scale 12-Bit Systems: VOS ≤ 0.45LSB ■ 10V Full-Scale 16-Bit Systems: VOS ≤ 1.8LSB ■ Active Filters ■ Photo Diode Amplifiers ■ DAC Current-to-Voltage Amplifiers ■ Battery-Powered Systems |
Product Description
| Type | Description |
| ANSC PART# | ANSC - LT1212CS#PBF |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, Op Amps, Buffer Amps | |
| Mfr | Original |
| Series | LT® |
| Packaging | Tube |
| Part Status | Active |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 4 |
| Output Type | - |
| Slew Rate | 7V/µs |
| Gain Bandwidth Product | 14 MHz |
| Current - Input Bias | 50 nA |
| Voltage - Input Offset | 150 µV |
| Current - Supply | 1.8mA (x4 Channels) |
| Current - Output / Channel | 50 mA |
| Voltage - Supply Span (Min) | 2.5 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SO |
| Base Product Number | LT1212 |

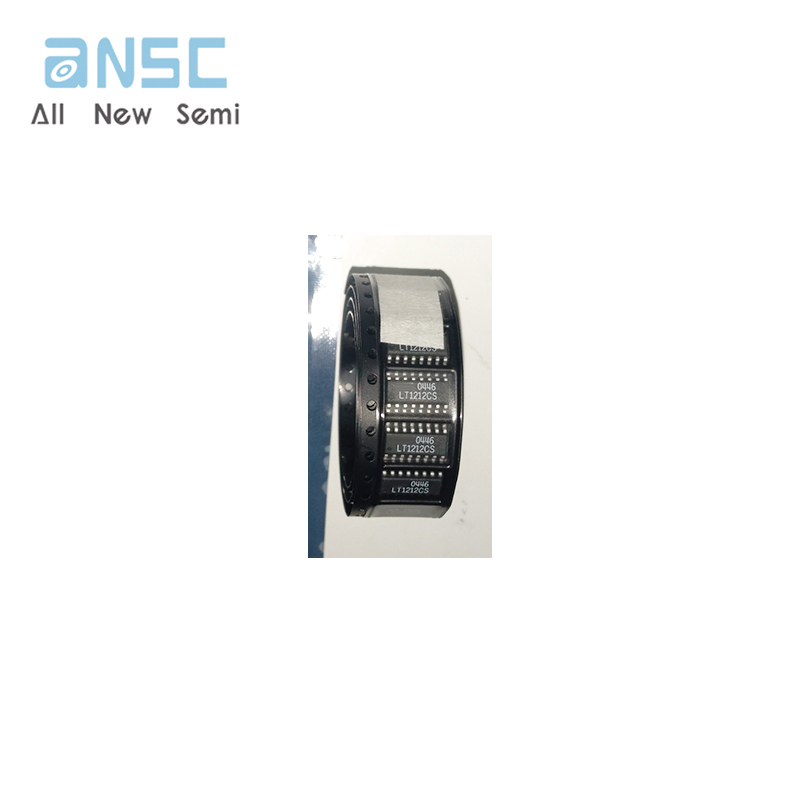

Product Photos

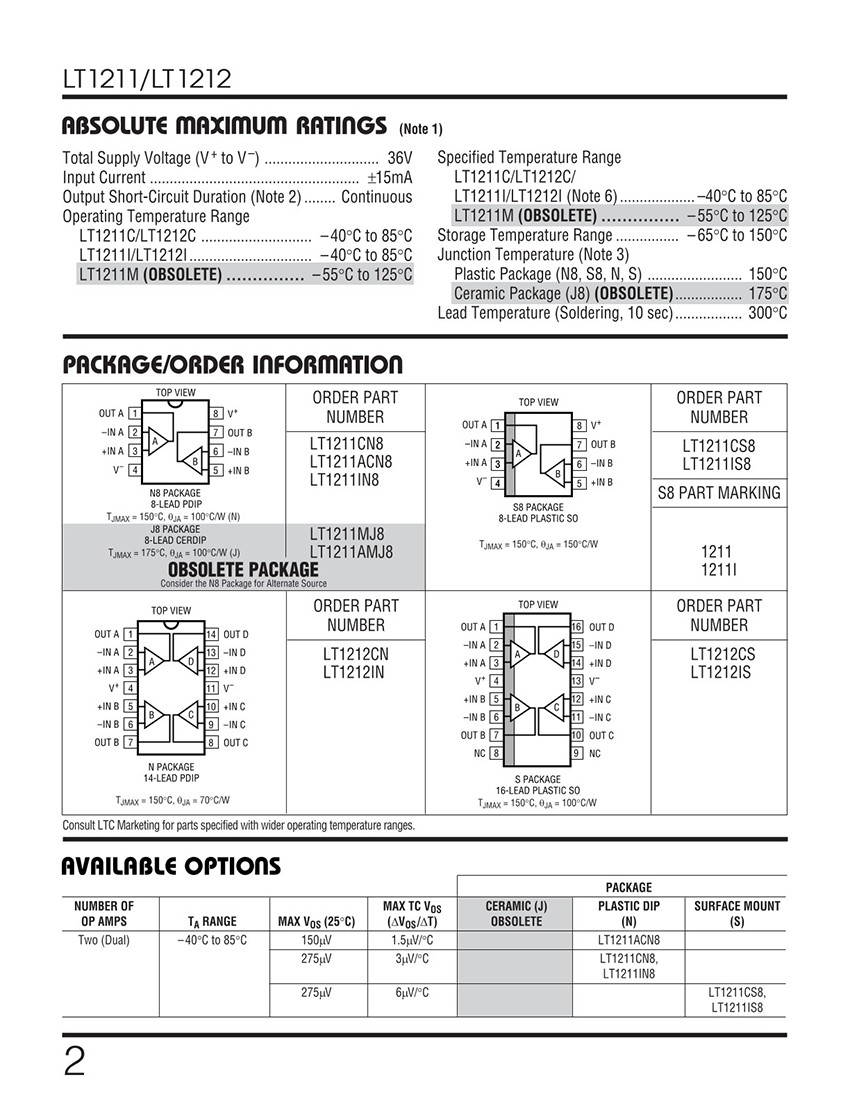

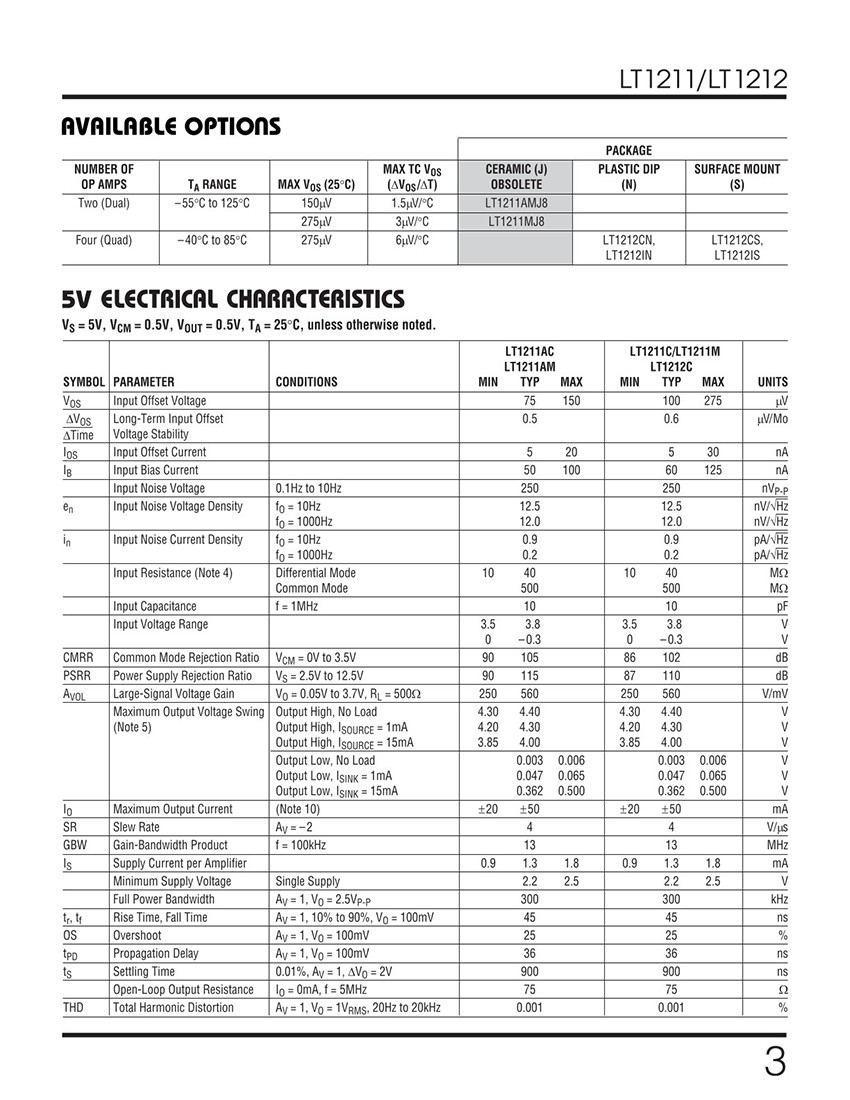

Product datasheet
