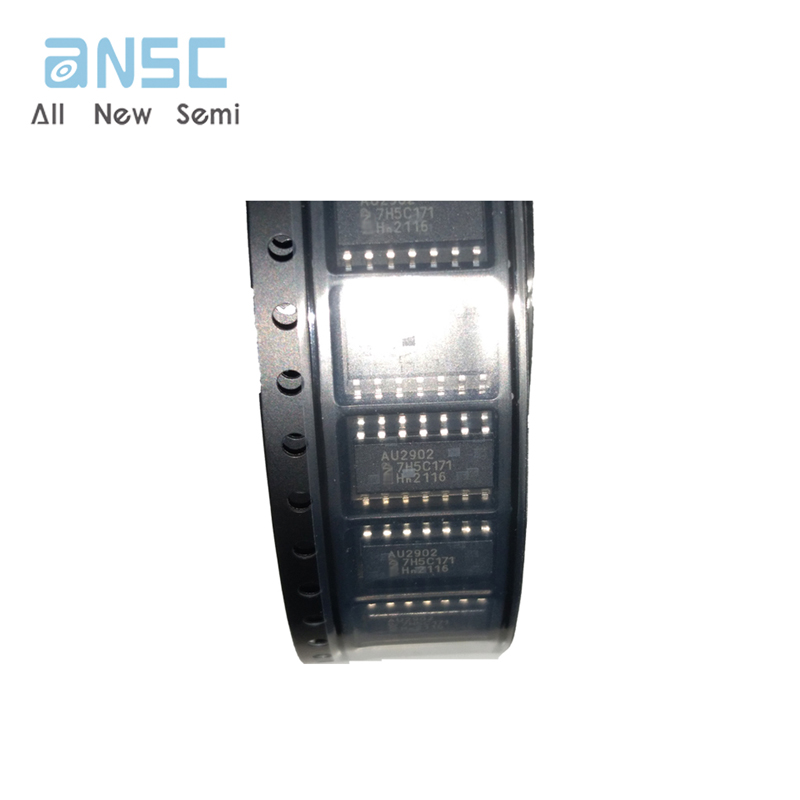

Hot sale Original AU2902D IC Operational Amplifier, 4 Func, 9000uV Offset-Max, BIPolar, PDSO14
Manufacturer Product Number
AU2902D
Description
Original AU2902D IC Operational Amplifier, 4 Func, 9000uV Offset-Max, BIPolar, PDSO14
Package Condition
Tape & Reel (TR)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
DESCRIPTION The AU2902 consists of four independent, high-gain, internally frequency-compensated operational amplifiers designed specifically to operate from a single power supply over a wide range of voltages. FEATURES • Internally frequency-compensated for unity gain • Large DC voltage gain: 100 dB • Wide bandwidth (unity gain): 1 MHz (temperature-compensated) • Wide power supply range Single supply: 3 VDC to 30 VDC or dual supplies: ±1.5 VDC to ±15 VDC • Very low supply current drain: essentially independent of supply voltage (1 mW/op amp at +5 VDC) • Low input bias current: 45 nADC (temperature-compensated) • Low input offset voltage: 2 mVDC and offset current: 5nADC • Differential input voltage range equal to the power supply voltage • Large output voltage: 0 VDC to VCC – 1.5 VDC swing |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- AU2902D |
| Ihs Manufacturer | Original |
| Part Package Code | SOIC |
| Package Description | 3.90 MM, PLASTIC, SO-14 |
| Pin Count | 14 |
| Amplifier Type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Average Bias Current-Max (IIB) | 0.5 µA |
| Bias Current-Max (IIB) @25C | 0.25 µA |
| Common-mode Reject Ratio-Min | 65 dB |
| Common-mode Reject Ratio-Nom | 70 dB |
| Frequency Compensation | YES |
| Input Offset Voltage-Max | 5000 µV |
| JESD-30 Code | R-PDSO-G14 |
| Length | 8.65 mm |
| Low-Bias | NO |
| Low-Offset | NO |
| Micropower | NO |
| Neg Supply Voltage Limit-Max | |
| Neg Supply Voltage-Nom (Vsup) | |
| Number of Functions | 4 |
| Number of Terminals | 14 |
| Operating Temperature-Max | 125 °C |
| Operating Temperature-Min | -40 °C |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Power | NO |
| Programmable Power | NO |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.75 mm |
| Slew Rate-Nom | 0.3 V/us |
| Supply Current-Max | 1.2 mA |
| Supply Voltage Limit-Max | 32 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | YES |
| Technology | BIPOLAR |
| Temperature Grade | AUTOMOTIVE |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Unity Gain BW-Nom | 1000 |
| Voltage Gain-Min | 25000 |
| Wideband | NO |
| Width | 3.9 mm |
