Hot-selling and scarce UPC3218GV-E1 GENERAL PURPOSE 5 V AGC AMPLIFIER IC SSOP8 spot stock

Product Descriptions

 UPC3217GVand UPC3218GV are Silicon Monolithic ICs designed for use as AGC amplifiers for digital CATV, cable modems and IP telephony systems. These ICs consist of a two stage gain control amplifier and a fixed video gain amplifier. The devices provide a differential input and differential output for noise performance,which eliminates shielding requirements.

The package is 8-pin SSOP (Shrink Small Outline Package) suitable for surface mount.

These  ICs  are  manufactured  using  10  GHz  fT NESATΙΙ AL silicon bipolar process. This process uses silicon nitride passivation film. This material can protect chip surface from external pollution and prevent corrosion/migration. Thus,these ICs have excellent performance,uniformity and reliability.

 Stringent quality assurance and test procedures ensure the highest reliability and performance.

Product Features

•   ON-CHIP LOW DISTORTION AMPLIFIER:

IIP3 = -4 dBm at minimuim gain

•   WIDE AGC DYNAMIC RANGE:

GCR = 53 dB TYP

•   ON-CHIP VIDEO AMPLIFIER:

VOUT = 1.25 VP-P at single-ended output

•   SUPPLY VOLTAGE:

VCC = 5 V

•   PACKAGED IN 8 PIN SSOP SUITABLE FOR SURFACE MOUNTING

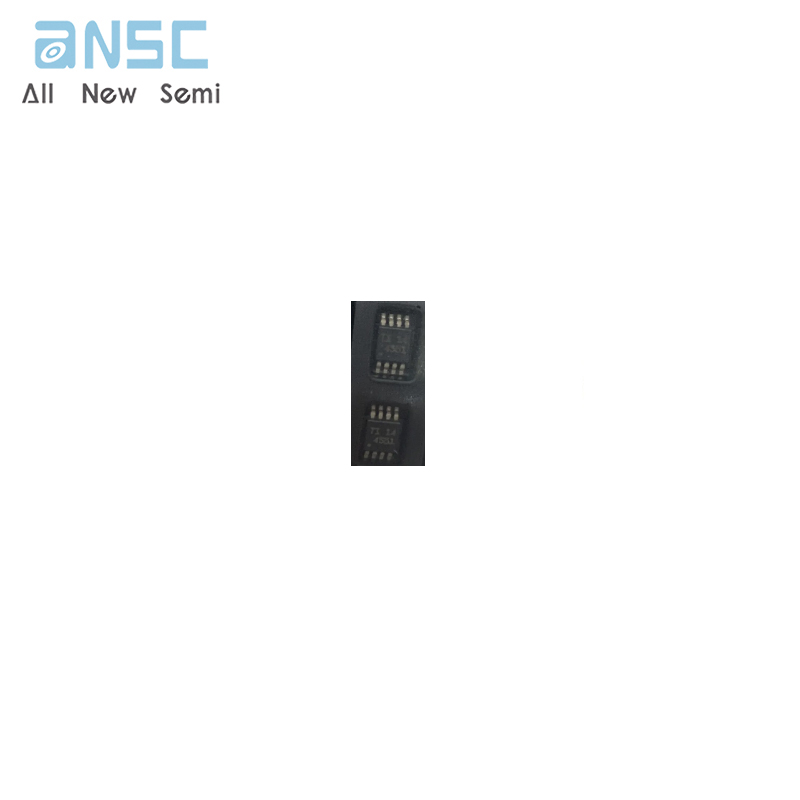

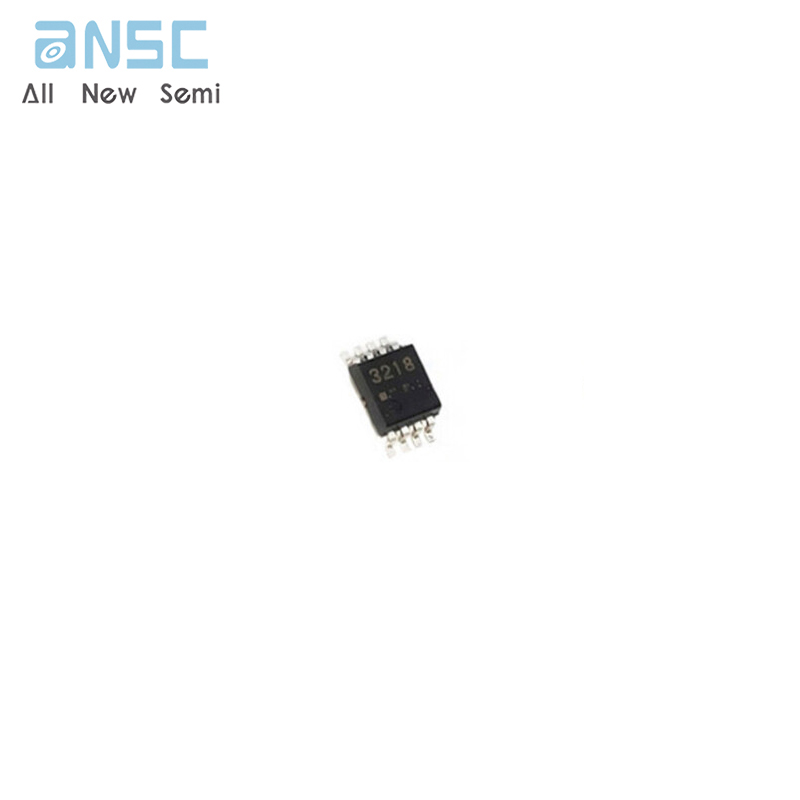

Product Photos

For more product information, please download the PDF
