Hot-selling and scarce THS7316DR 3-Channel HDTV Video Amplifier With 5th-Order Filters and 6-dB Gain SOP8 spot stock

Product Descriptions

Fabricated using the Silicon-Germanium (SiGe) BiCom-III process, the THS7316 is a low power single-supply 3-V to 5-V, 3-channel integrated video buffer. It incorporates a 5th-order modified Butterworth filter which is useful as a DAC reconstruction filter or an ADC anti-aliasing filter. The 36-MHz filter is a perfect choice for HDTV video which includes Y'P'BP'R 720p/1080i, G'B'R' (R'G'B'), and VGA/SVGA/XGA signals.

As part of the THS7316 flexibility, the input can be configured for ac or dc coupled inputs. The DC + 140-mV input offset shift to allow for a full sync dynamic range at the output with 0-V input. The AC coupled modes include a transparent sync-tip clamp option for signals with sync such as Y’ or Green with sync. AC-coupled biasing for P’B/P’R/Non-sync channels can be achieved by adding an external resistor.

The THS7316 is the perfect choice for all output  buffer applications. Its rail-to-rail output stage with 6-dB gain allows for both ac and dc line driving. The ability to drive 2 video lines per channel, or 75-Ω loads, allows for maximum flexibility as a video line driver. The 18.3-mA total quiescent current makes it an excellent choice for USB powered, portable, or other power sensitive video applications.

The THS7316 is available in a small SOIC-8 package that is RoHS compliant.

Product Features

• 3 HDTV Video Amplifiers for Y'P'BP'R 720p and 1080i, G'B'R' (R'G'B'), VGA/SVGA/XGA

• Integrated Low-Pass Filters

– 5th-Order 36-MHz (–3 dB) Butterworth Filter

– –1 dB Passband Bandwidth at 31 MHZ

– 30 dB Attenuation at 74 MHz

• Versatile Input Biasing

– DC-Coupled With 140-mV Input Shift

– AC-Coupled with Sync-Tip Clamp

– Allows AC-Coupled With Biasing

• Built-in 6-dB Gain (2V/V)

• 3-V to 5-V Single Supply Operation

• Rail-to-Rail Output:

– Output Swings Within 100 mV From the Rails Allowing AC or DC Output Coupling

– Supports Driving 2 Lines per Channel

• Low 18.3-mA at 3.3-V Total Quiescent Current

• Low Differential Gain/Phase of 0.1% / 0.1°

• SOIC-8 Package

Product Applications

• Set Top Box Output Video Buffering

• PVR/DVDR Output Buffering

• USB/Portable Low Power Video Buffering

Product Specification

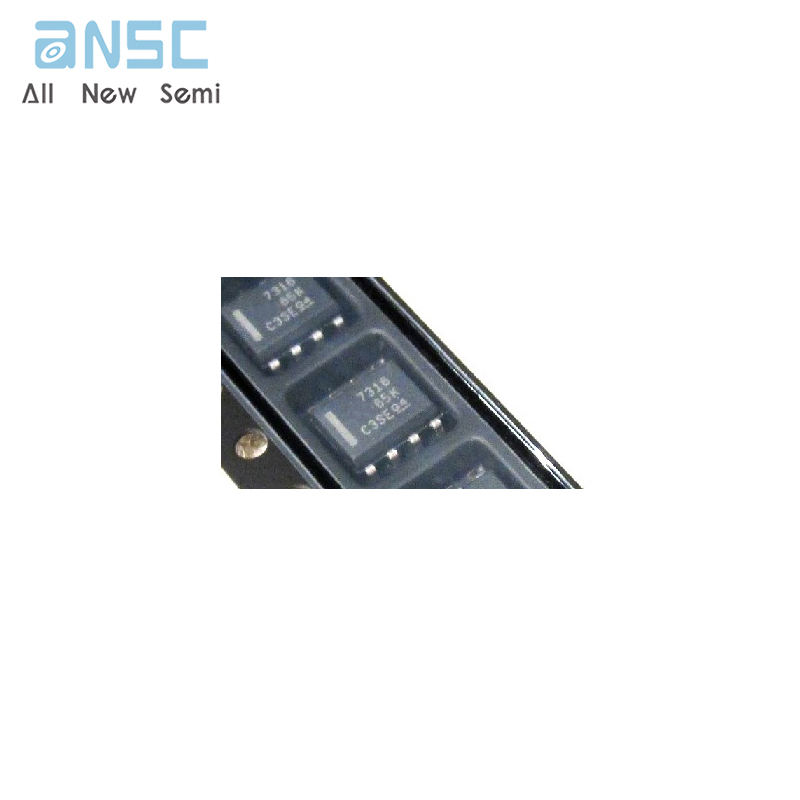

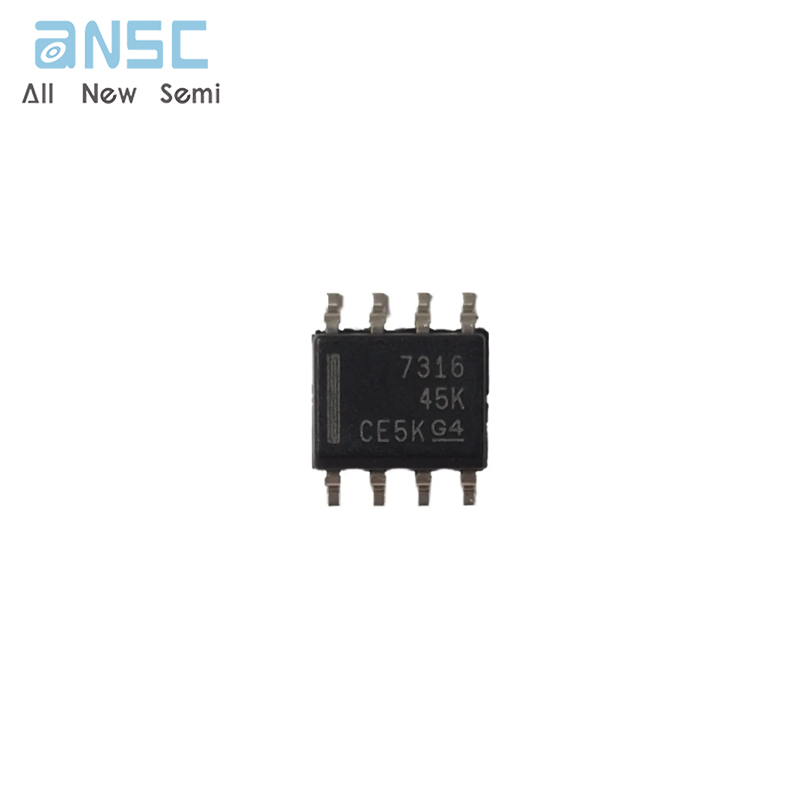

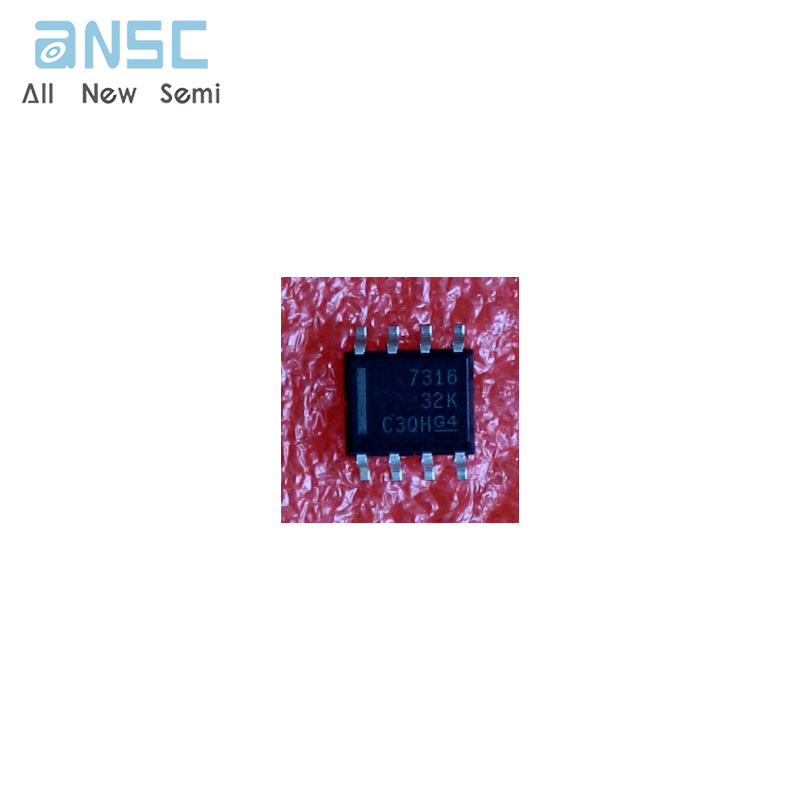

Product Photos

For more product information, please download the PDF
