Hot-selling and scarce LM224J Low Power Quad Operational Amplifiers CDIP14

Product Descriptions

The LM124-N series consists of four independent,high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage.

Application areas include transducer amplifiers, DC gain blocks and all the conventional op amp circuits which now can be more easily implemented in single power supply systems. For example, the LM124-N series can be directly operated off of the standard +5V power supply voltage which is used in digital systems and will easily provide the required interface electronics without requiring the additional ±15V power supplies.

Product Features

• Internally Frequency Compensated for Unity Gain

• Large DC Voltage Gain 100 dB

• Wide Bandwidth (Unity Gain) 1 MHz  (Temperature Compensated)

• Wide Power Supply Range:

– Single Supply 3V to 32V

– or Dual Supplies ±1.5V to ±16V

• Very Low Supply Current Drain (700μA)—Essentially Independent of Supply Voltage

• Low Input Biasing Current 45 nA (Temperature  Compensated)

• Low Input Offset Voltage 2 mV

– and Offset Current: 5 nA

• Input Common-Mode Voltage Range Includes Ground

• Differential Input Voltage Range Equal to the Power Supply Voltage

• Large Output Voltage Swing 0V to V+ − 1.5V

Product Specification

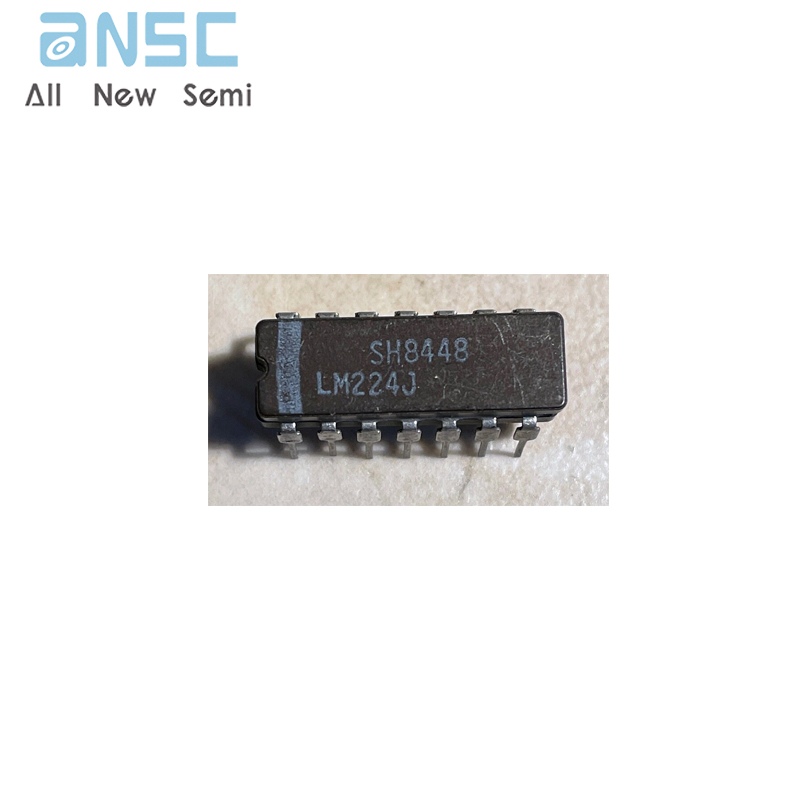

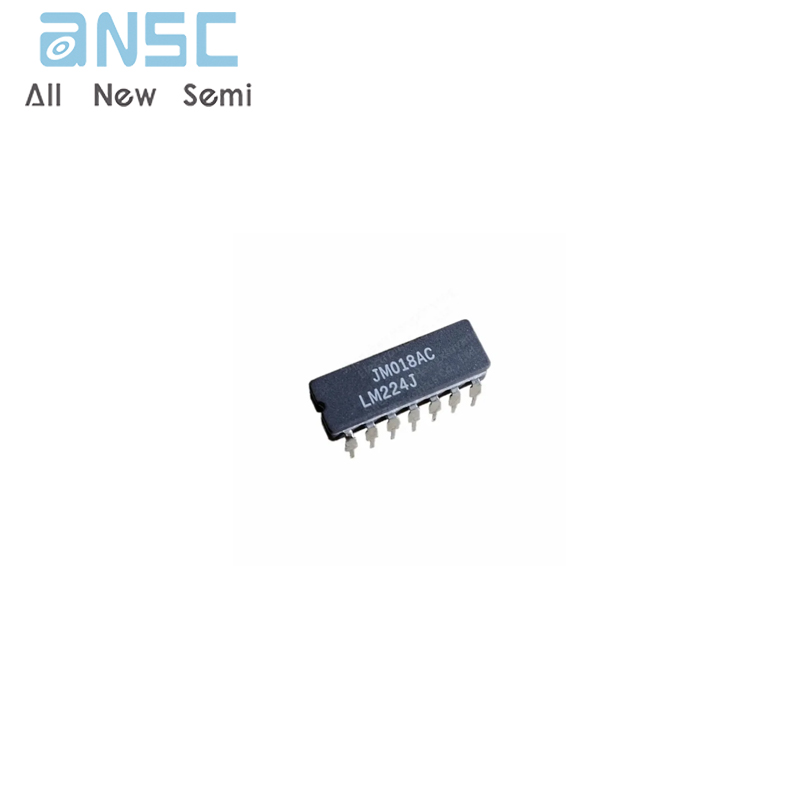

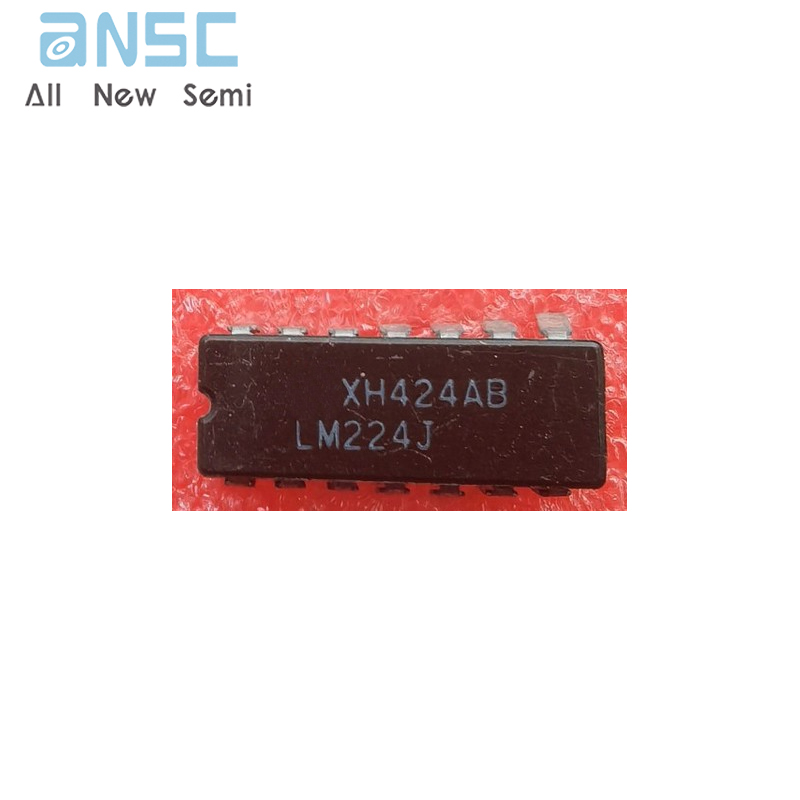

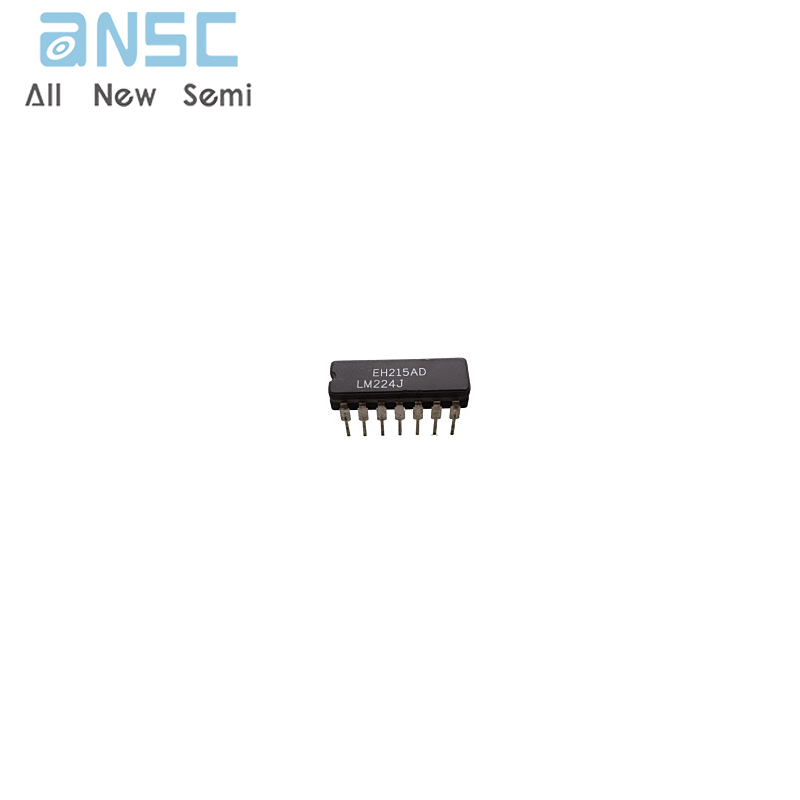

Product Photos

For more product information, please download the PDF
