Hot sale Original LM211H IC Comparator, 1 Func, 4000uV Offset-Max, 200ns Response Time, BIPolar, MBCY8
Manufacturer Product Number
LM211H
Description
LM211H IC Comparator, 1 Func, 4000uV Offset-Max, 200ns Response Time, BIPolar, MBCY8
Package Condition
bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Highly Flexible Voltage Comparators The ability to operate from a single power supply of 5.0 V to 30 V or ±15 V split supplies, as commonly used with operational amplifiers, makes the LM211/LM311 a truly versatile comparator. Moreover, the inputs of the device can be isolated from system ground while the output can drive loads referenced either to ground, the VCC or the VEE supply. This flexibility makes it possible to drive DTL, RTL, TTL, or MOS logic. The output can also switch voltages to 50 V at currents to 50 mA. Thus the LM211/LM311 can be used to drive relays, lamps or solenoids. |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- LM211H |
| kg CO2e/kg | 12.4 |
| Average Weight (mg) | 1023 |
| CO2e (mg) | 12685.2 |
| Total Weight | 971.01 |
| Category CO2 Kg | 427 |
| CO2 | 414621.27 |
| Compliance Temperature Grade | Commercial Extended: -25c To +85c |
| Candidate List Date | 2024/1/23 |
| SVHC Over MCV | 7439-92-1 |
| CAS Accounted for Wt | 100 |
| CA Prop 65 Presence | Yes |
| CA Prop 65 CAS Numbers | 7439-92-1, 7440-48-4, 7440-02-0 |
| Conflict Mineral Status | Drc Conflict Free Undeterminable |
| Conflict Mineral Status Source | Conflict Minerals Statement |
| Amplifier Type | Comparator |
| Average Bias Current-Max (IIB) | 0.15 µA |
| Bias Current-Max (IIB) @25C | 0.1 µA |
| Input Offset Voltage-Max | 4000 µV |
| JESD-30 Code | O-MBCY-W8 |
| JESD-609 Code | e0 |
| Moisture Sensitivity Level | 1 |
| Neg Supply Voltage Limit-Max | -18 V |
| Neg Supply Voltage-Nom (Vsup) | -15 V |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min | -25 °C |
| Output Type | Open-Collector |
| Package Body Material | Metal |
| Package Code | TO-99 |
| Package Equivalence Code | CAN8,.2 |
| Package Shape | Round |
| Package Style | Cylindrical |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Response Time-Nom | 200 Ns |
| Supply Voltage Limit-Max | 18 V |
| Supply Voltage-Nom (Vsup) | 15 V |
| Surface Mount | No |
| Technology | Bipolar |
| Temperature Grade | Other |
| Terminal Finish | Tin Lead |
| Terminal Form | Wire |
| Terminal Position | Bottom |
| Time@Peak Reflow Temperature-Max (s) | 40 |

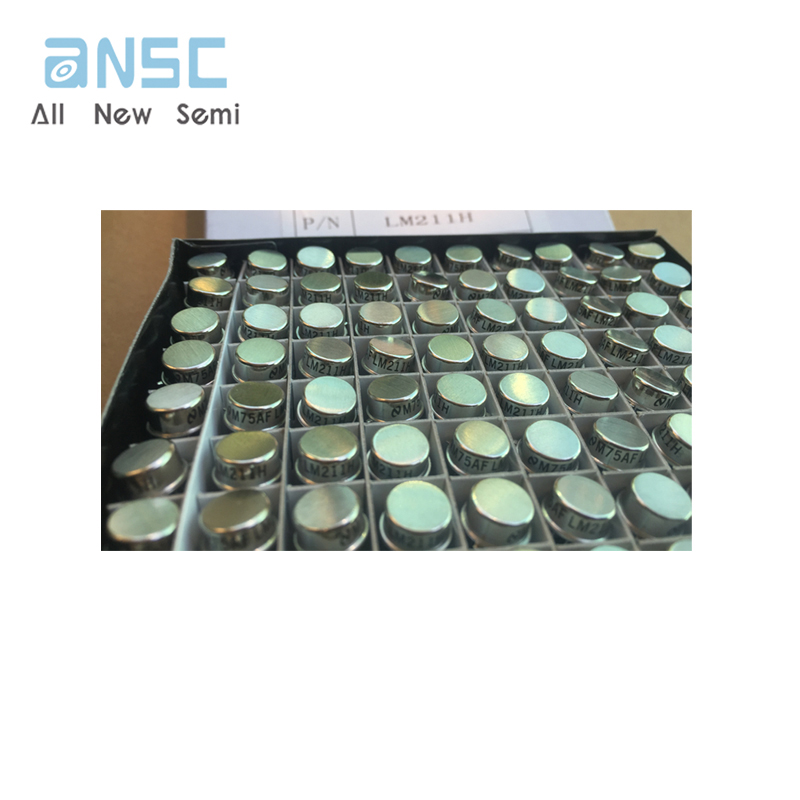

Actual image of the product

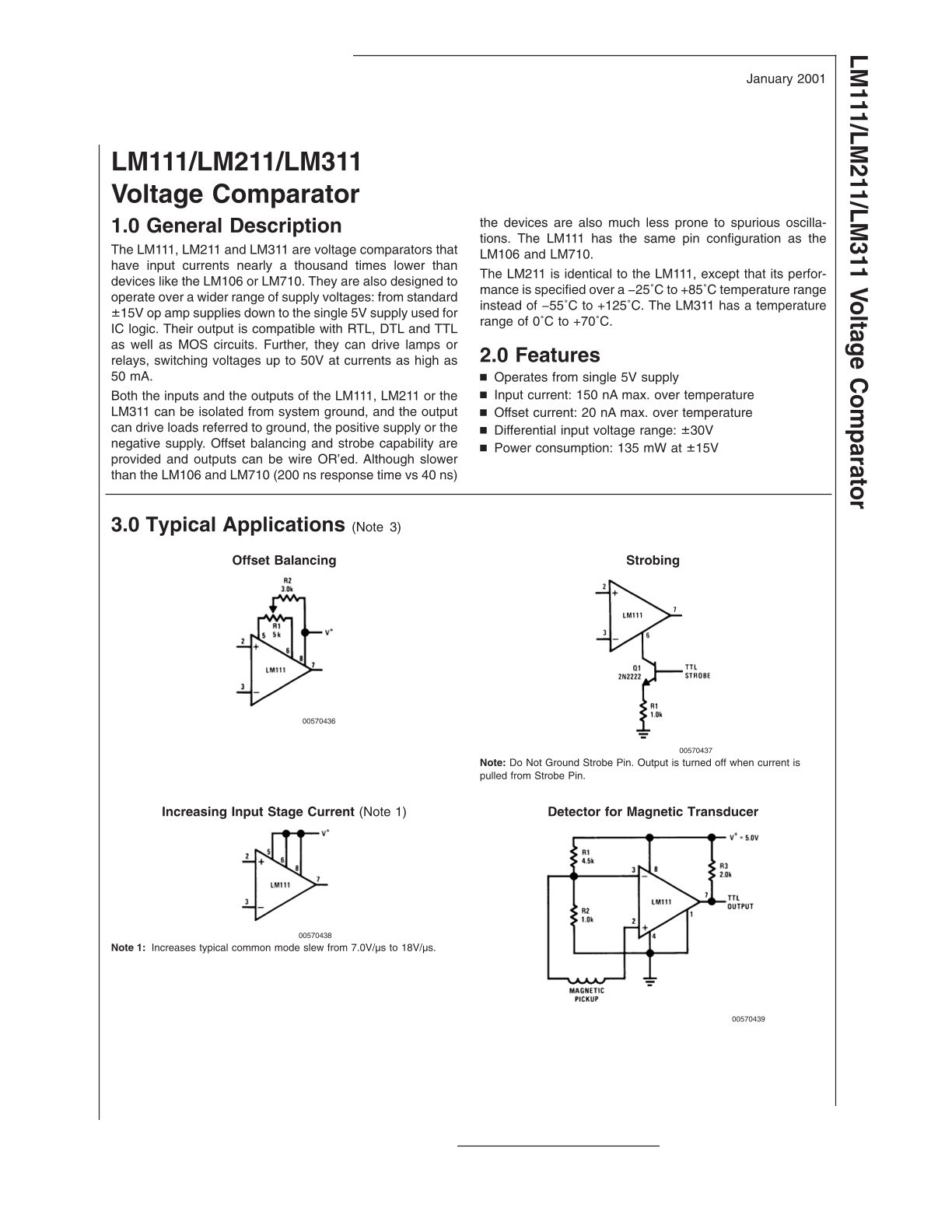

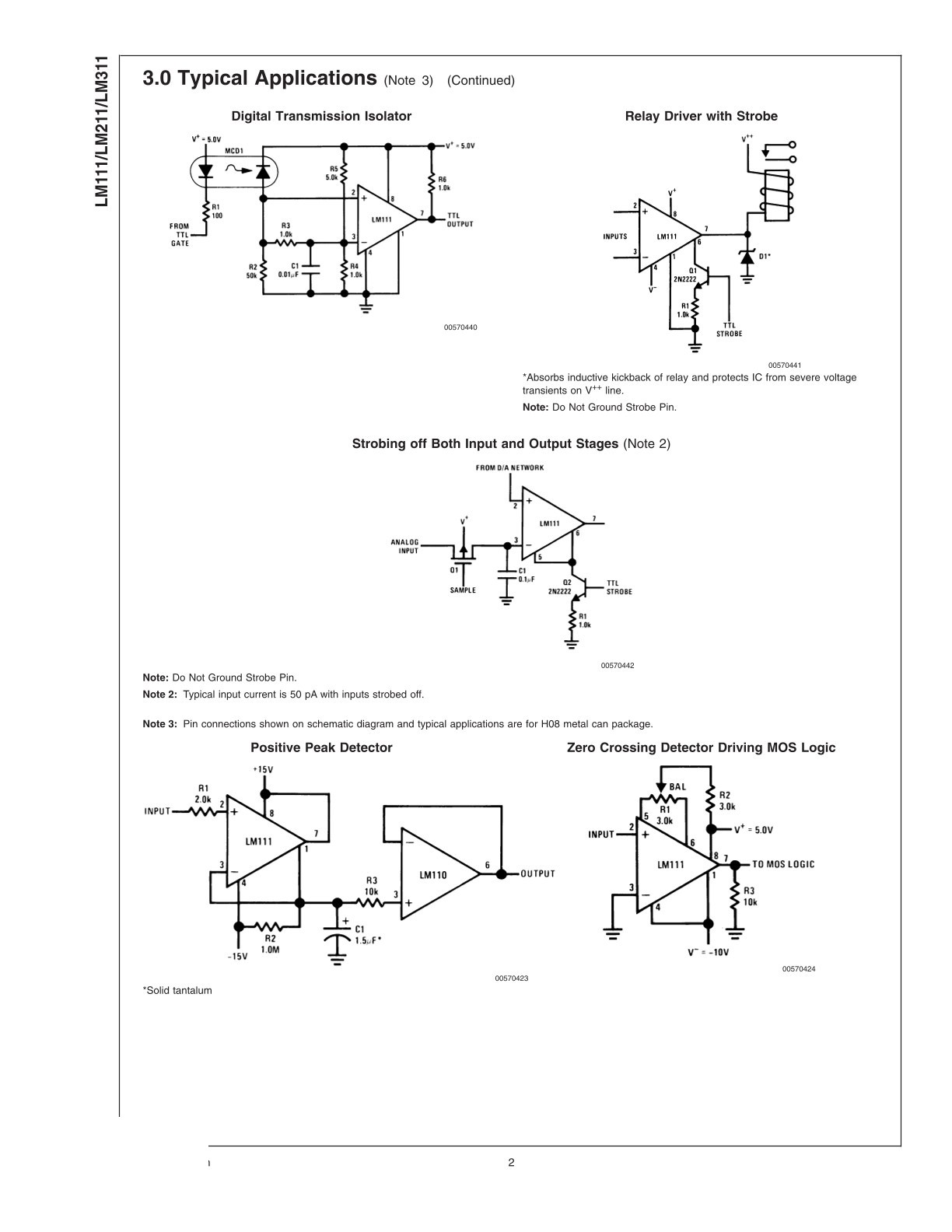

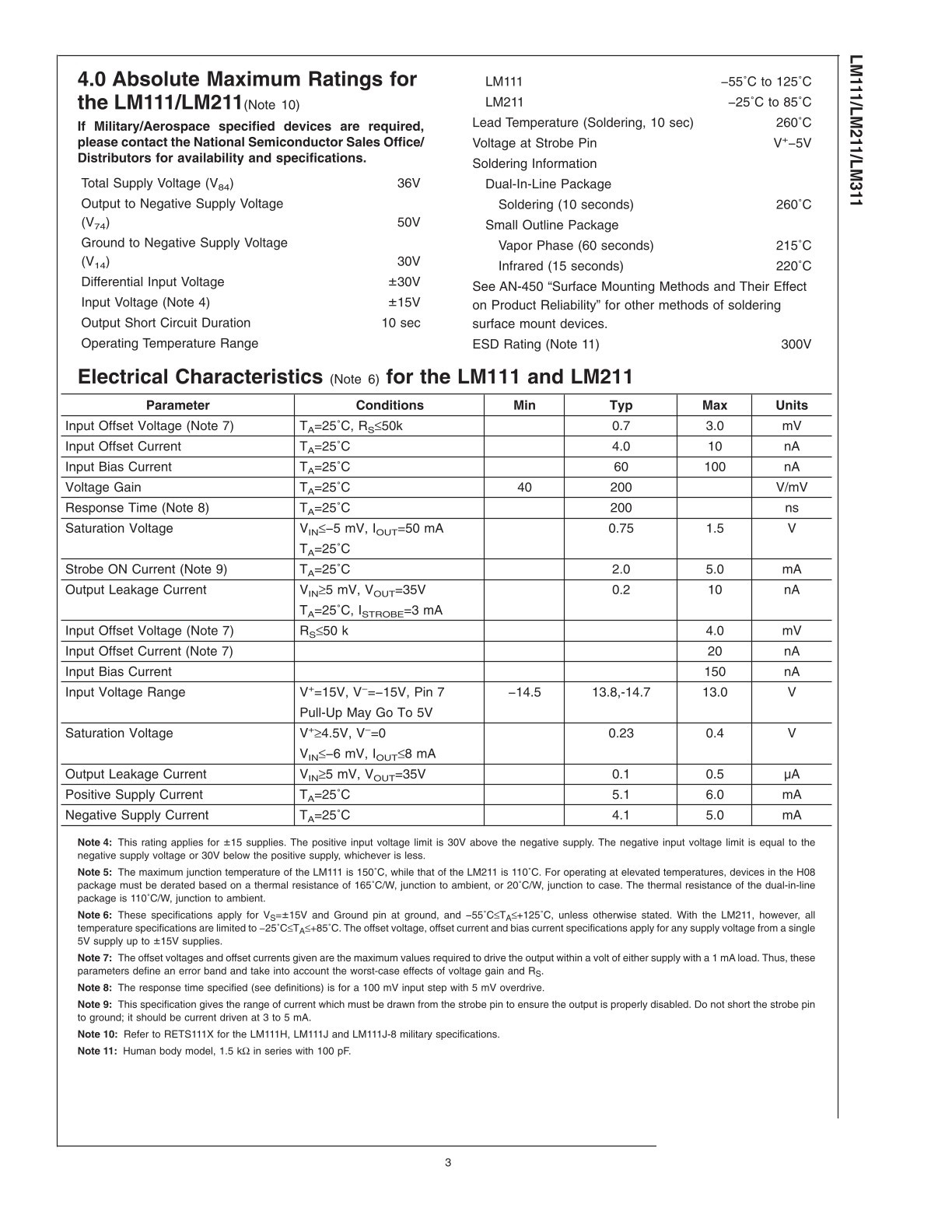

Product datasheet
