Hot-selling and scarce MP28258DD-LF-Z High Efficiency, Fast Transient, 3A, 4.2V-20V Input Synchronous Step-down Converter QFN
Manufacturer Product Number
MP28258DD-LF-Z
Description
MP28258DD-LF-Z High Efficiency, Fast Transient, 3A, 4.2V-20V Input Synchronous Step-down Converter QFN
Package Condition
TRAY
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The MP28258 is a fully-integrated, highefficiency, synchronous, step-down, switch mode converter. It offers a very compact solution that can achieve a 3A continuous output current over a wide input supply range with excellent load and line regulation, and can operate at high efficiency over a wide outputcurrent load range.
Constant-On-Time (COT) control mode provides fast transient response and eases loop stabilization.
Full protection features include SCP, OCP, OVP, UVP and, thermal shut down.
Product Features
• Wide 4.2V to 20V Operating Input Range
• 3A Output Current
• Low RDS(ON) Internal Power Mosfets
• Proprietary Switching Loss Reduction Technique
• Power-Good Indicator in QFN Package
• Soft Startup/Shutdown
• Programmable Switching Frequency
• SCP, OCP, UVP Protection and Thermal Shutdown
• Optional OCP Protection: Latch-Off Mode and Hiccup Mode.
• Output Adjustable From 0.815V To 13V
• Available in aQFN12 (2x3mm)Package
Product Applications
• Networking Systems
• Distributed PowerSystems
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MP28258DD-LF-Z |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | - |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Not For New Designs |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.2V |
| Voltage - Input (Max) | 20V |
| Voltage - Output (Min/Fixed) | 0.815V |
| Voltage - Output (Max) | 13V |
| Current - Output | 3A |
| Frequency - Switching | - |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 12-TFQFN Exposed Pad |
| Supplier Device Package | 12-QFN (2x3) |
| Base Product Number | MP28258 |

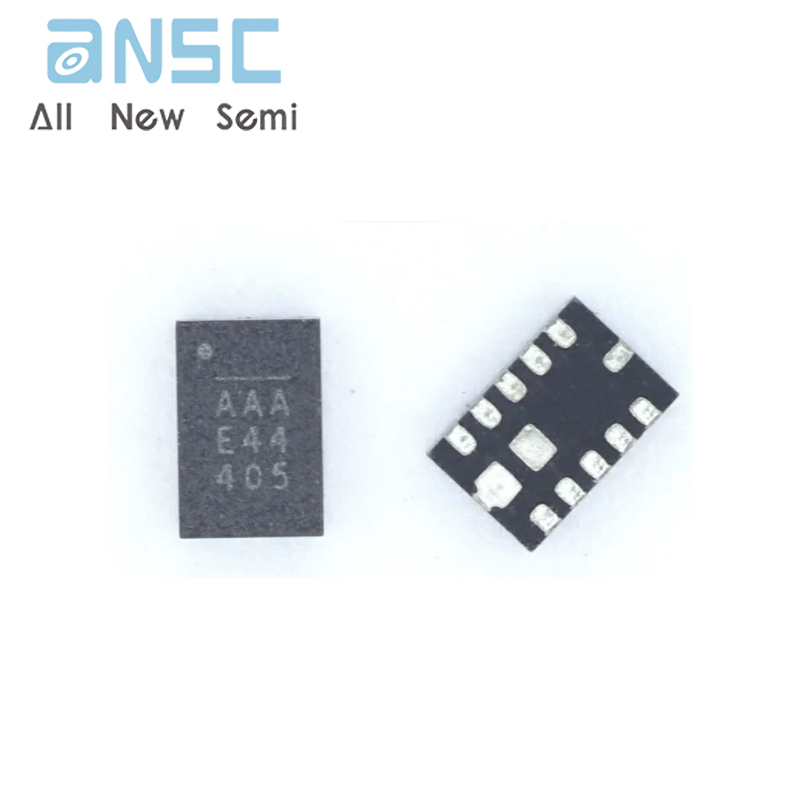

Product Photos
