Hot-selling and scarce OPA2336EA/2K5 CMOS OPERATIONAL AMPLIFIERS MSOP8 spot stock
Manufacturer Product Number
OPA2336EA/2K5
Description
OPA2336EA/2K5 CMOS OPERATIONAL AMPLIFIERS MSOP8 spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
OPA336 series microPower CMOS operational amplifiers are designed for battery-powered applications. They operate on a single supply with operation as low as 2.1V. The output is rail-to-rail and swings to within 3mV of the supplies with a 100kΩ load. The common-mode range extends to the negative supply—ideal for single-supply applications.Single,dual,and quad versions have identical specifications for maximum design flexibility.
In addition to small size and low quiescent current(20 µA/amplifier), they feature low offset voltage(125µV max), low input bias current (1pA),and high openloop gain (115dB). Dual and quad designs feature completely independent circuitry for lowest crosstalk and freedom from interaction.
OPA336 packages are the tiny SOT23-5 surface mount and SO-8 surface-mount.OPA2336 come in the miniature MSOP-8 surface-mount, SO-8 surface-mount, and DIP-8 packages. The OPA4336 package is the space-savingSSOP-16 surface-mount . All are specified from–40°C to +85°C and operate from –55°C to +125°C. A macromodel is available for download (at www.ti.com) for design analysis.
Product Features
● SINGLE-SUPPLY OPERATION
● RAIL-TO-RAIL OUTPUT (within 3mV)
● microPOWER: IQ = 20µA/Amplifier
● microSIZE PACKAGES
● LOW OFFSET VOLTAGE: 125µV max
● SPECIFIED FROM VS = 2.3V to 5.5V
● SINGLE, DUAL, AND QUAD VERSIONS
Product Applications
● BATTERY-POWERED INSTRUMENTS
● PORTABLE DEVICES
● HIGH-IMPEDANCE APPLICATIONS
● PHOTODIODE PRE-AMPS
● PRECISION INTEGRATORS
● MEDICAL INSTRUMENTS
● TEST EQUIPMENT
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-OPA2336EA/2K5 |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, Op Amps, Buffer Amps | |
| Mfr | - |
| Series | MicroAmplifier™ |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Amplifier Type | CMOS |
| Number of Circuits | 2 |
| Output Type | Rail-to-Rail |
| Slew Rate | 0.03V/µs |
| Gain Bandwidth Product | 100 kHz |
| Current - Input Bias | 1 pA |
| Voltage - Input Offset | 60 µV |
| Current - Supply | 20µA (x2 Channels) |
| Current - Output / Channel | 5 mA |
| Voltage - Supply Span (Min) | 2.3 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-VSSOP |
| Base Product Number | OPA2336 |

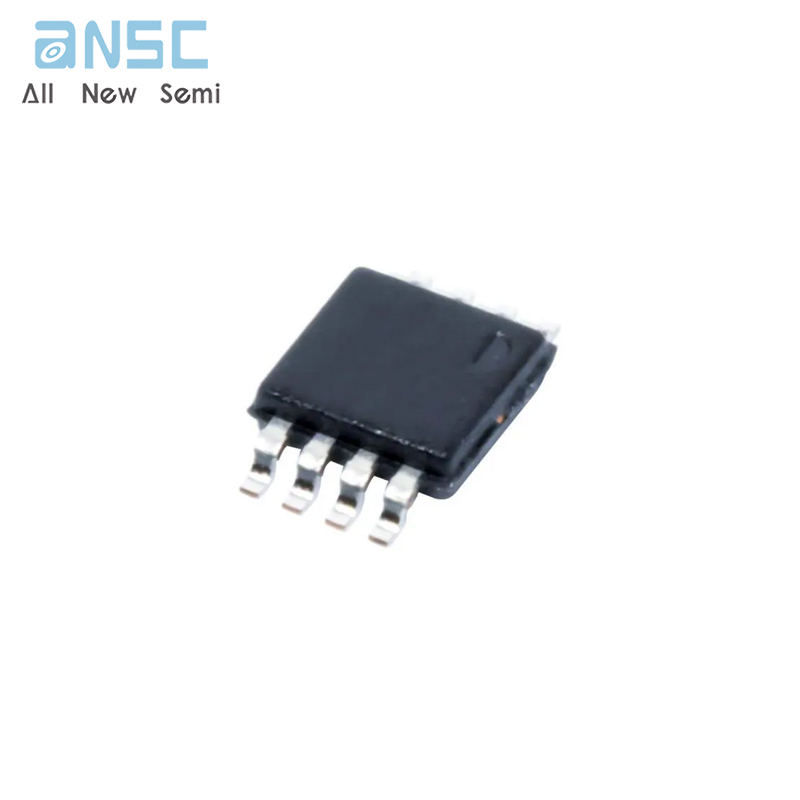

Product Photos
