Hot-selling and scarce ADA4075-2ARZ Ultralow Noise Amplifier IC SOP8 spot stock

Product Descriptions

The ADA4075-2 is a dual,high performance,low noise operationalamplifier combining excellent dc and ac characteristics on theAnalog Devices, Inc., iPolar® process. The iPolar process is anadvanced bipolar technology implementing vertical junctionisolation with lateral trench isolation . This allows for low noiseperformance amplifiers in smaller die size at faster speed andlower power. Its high slew rate, low distortion, and ultralownoise make the ADA4075-2 ideal for high fidelity audio andhigh performance instrumentation applications . It is alsoespecially useful for lower power demands, small enclosures,and high density applications . The ADA4075-2 is specified forthe −40°C to +125°C temperature range and is available in astandard SOIC package and a 2 mm × 2 mm LFCSP package

Product Features

Ultralow noise: 2.8 nV/√Hz at 1 kHz typical

Ultralow distortion: 0.0002% typical

Low supply current: 1.8 mA per amplifier typical

Offset voltage: 1 mV maximum

Bandwidth: 6.5 MHz typical

Slew rate: 12 V/μs typical

Dual-supply operation: ±4.5 V to ±18 V

Unity-gain stable

Extended industrial temperature range

8-lead SOIC and 2 mm × 2 mm LFCSP packages

​

Product Applications

Precision instrumentation

Professional audio

Active filters

Low noise amplifier front end

Integrators

Product Specification

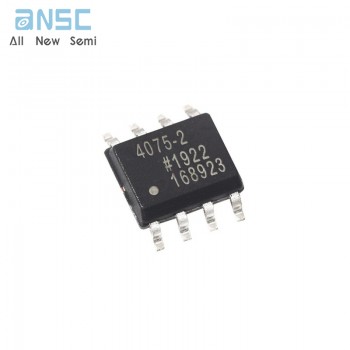

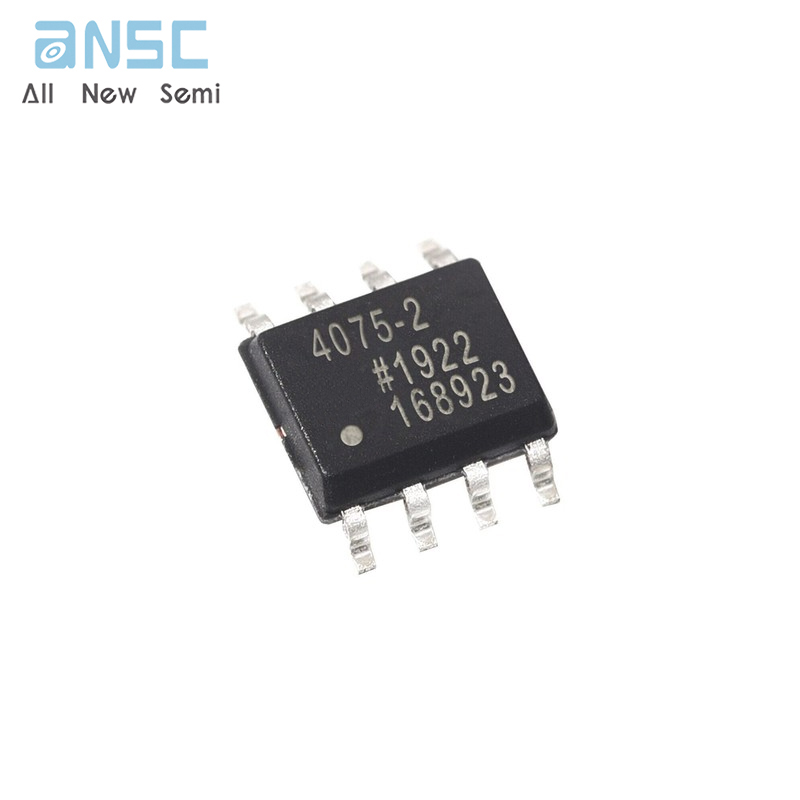

Product Photos

For more product information, please download the PDF
