Hot sale Original OPA2350UA Amplifier Circuits Dual single-supply, rail-to-rail, high speed, low-noise operational amplifier
Manufacturer
Manufacturer Product Number
OPA2350UA
Description
OPA2350UA Amplifier Circuits Dual single-supply, rail-to-rail, high speed, low-noise operational amplifier 8-SOIC
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| DESCRIPTION The UTC OPA2336 is a CMOS operational amplifier. It is operated on a 2.1V (Min.) single supply. A100kΩ load is driven by the rail-to-rail output and the accuracy of the output voltage is ensured at ± 3mV. The UTC OPA2336 is characterized by its low quiescent current (20μA/amplifier), low offset voltage (125μV max), low input bias current (1pA), and high open-loop gain (115dB). The UTC OPA2336 features completely independent circuitry for lowest crosstalk and freedom from interaction. The UTC OPA2336 is particularly designed for battery-powered applications and the common-mode range extending to the negative supply makes it ideal for single-supply applications. In addition to the applications mentioned above, the UTC OPA2336 is suitable for portable devices, high-Impedance applications, photodiode, pre-amps, precision integrators, medical instruments, and test equipment. FEATURES * Operating on a Single-Supply * Rail-to-Rail Output (Accuracy: ± 3mv) * Low Power Dissipation: IQ=20μA/Amplifier * Low Offset Voltage up to 125μV (MAX.) * Power Supply Specified from 2.3V to 5.5V * Halogen Free |
Product Description
| Type | Description |
| ANSC PART# | ANSC - OPA2350UA |
| Ihs Manufacturer | Original |
| Part Package Code | SOIC |
| Package Description | GREEN, PLASTIC, MS-012AA, SOIC-8 |
| Pin Count | 8 |
| Samacsys Manufacturer | Original |
| Amplifier Type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Average Bias Current-Max (IIB) | 0.00001 µA |
| Bias Current-Max (IIB) @25C | 0.00001 µA |
| Common-mode Reject Ratio-Min | 66 dB |
| Common-mode Reject Ratio-Nom | 84 dB |
| Frequency Compensation | YES |
| Input Offset Current-Max (IIO) | 0.00001 µA |
| Input Offset Voltage-Max | 500 µV |
| JESD-30 Code | R-PDSO-G8 |
| JESD-609 Code | e4 |
| Length | 4.905 mm |
| Low-Bias | YES |
| Low-Offset | YES |
| Micropower | NO |
| Moisture Sensitivity Level | 2 |
| Number of Functions | 2 |
| Number of Terminals | 8 |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min | -40 °C |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | HSOP |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG |
| Packing Method | TUBE |
| Peak Reflow Temperature (Cel) | 260 |
| Power | NO |
| Programmable Power | NO |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.75 mm |
| Slew Rate-Nom | 22 V/us |
| Supply Current-Max | 15 mA |
| Supply Voltage Limit-Max | 7 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Unity Gain BW-Nom | 38000 |
| Voltage Gain-Min | 100000 |
| Wideband | NO |
| Width | 3.895 mm |

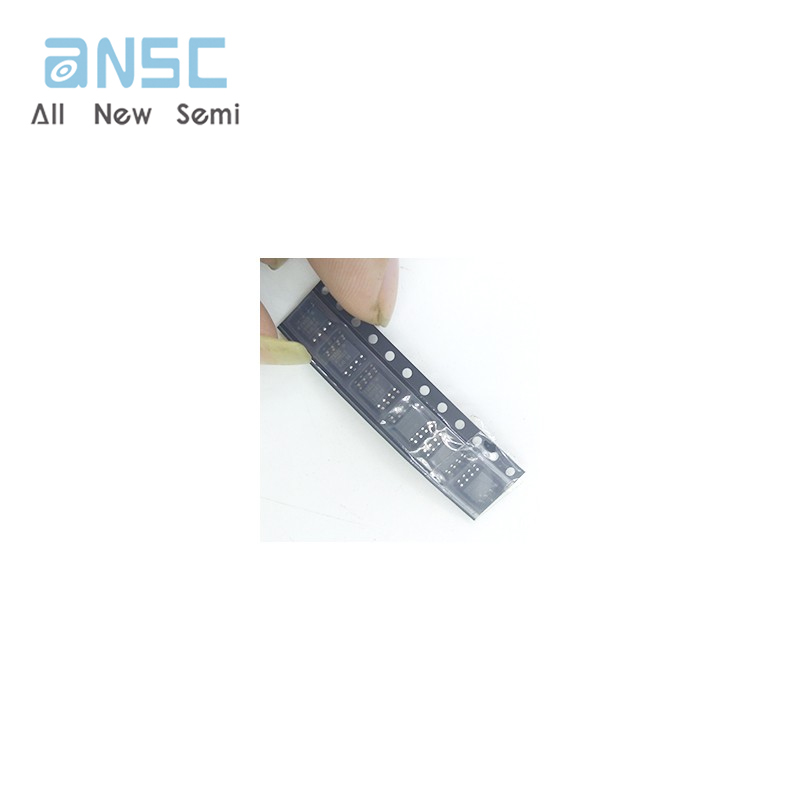

Actual image of the product

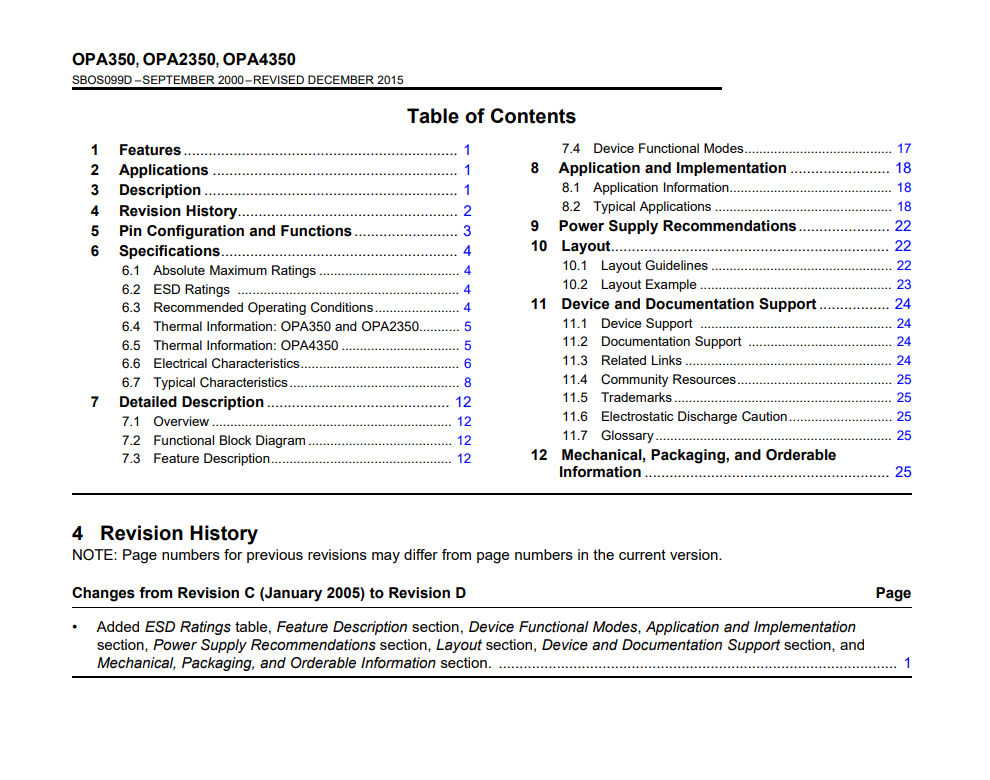

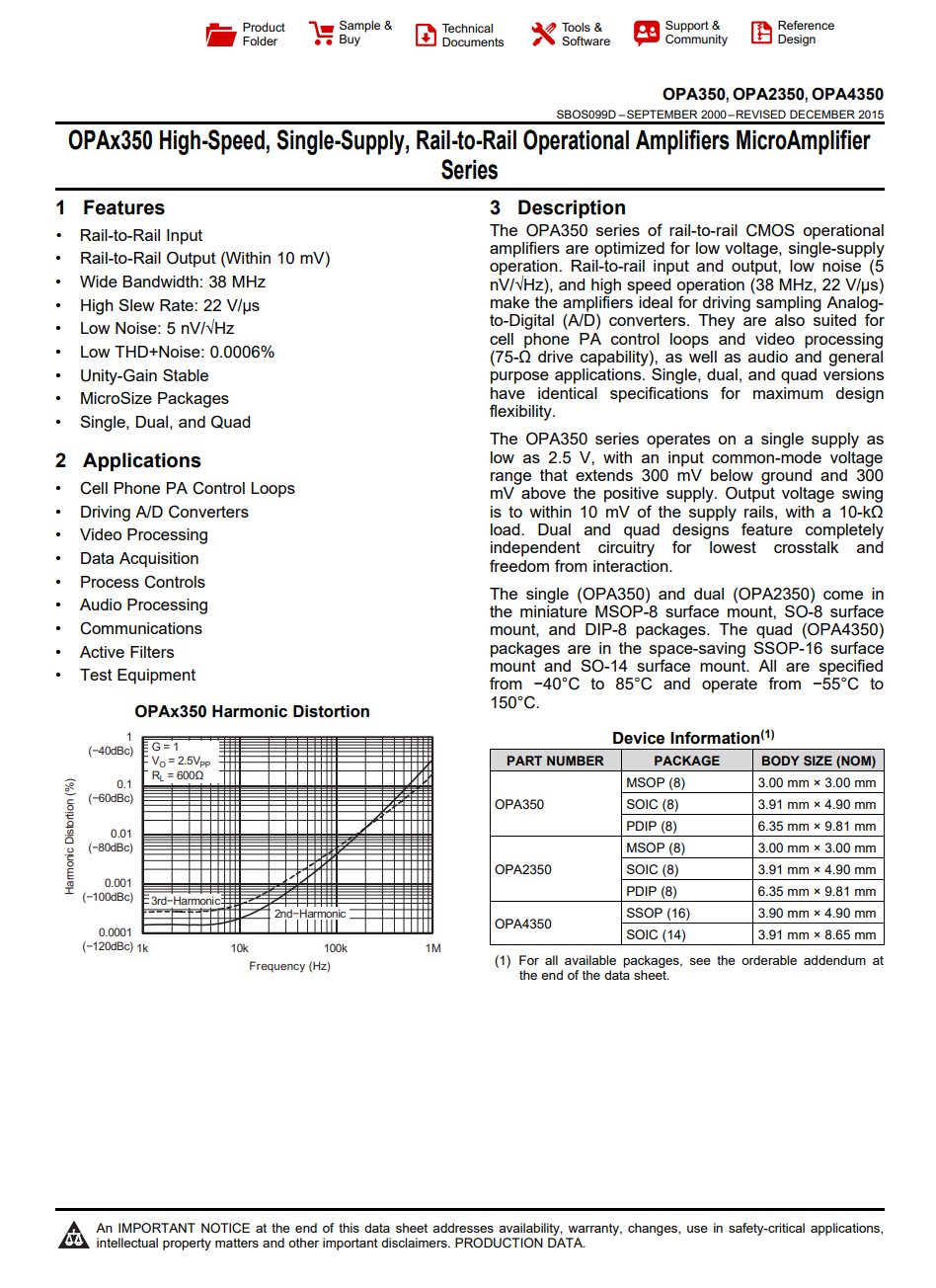

Product datasheet
For more information, please download
Payment&Transportation
Official Certificate&Certificate
Standard packaging
Multiple product supply
Welcome to visit our company
Warehouse Real Shot
