One stop electronic component supply LMC7101BIM5X NOPB Tiny Low Power Operational Amplifier with Rail-to-Rail Input and Output
Manufacturer Product Number
LMC7101BIM5X NOPB
Description
Op Amp Single Low Power Amplifier R-R I/O 15.5V 5-Pin SOT-23 T/R
Package Condition
T/R
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Applications
• Mobile Communications
• Notebooks and PDAs
• Battery Powered Products
• Sensor Interface
• Automotive Applications (LMC7101Q-Q1)
Product Benefits and Features
• Tiny 5-Pin SOT-23 Package Saves
Space—Typical Circuit Layouts Take Half the
Space of 8-Pin SOIC Designs
• Ensured Specifications at 2.7-V, 3-V, 5-V, 15-V Supplies
• Typical Supply Current 0.5 mA at 5 V
• Typical Total Harmonic Distortion of 0.01PERCENT at 5 V
• 1-MHz Gain Bandwidth
• Similar to Popular LMC6482 and LMC6484
• Rail-to-Rail Input and Output
• Temperature Range –40°C to 125°C (LMC7101Q-Q1)
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-LMC7101BIM5X NOPB |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | - |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Amplifier Type | General Purpose |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Slew Rate | 1.1V/µs |
| Gain Bandwidth Product | 1.1 MHz |
| Current - Input Bias | 1 pA |
| Voltage - Input Offset | 110 µV |
| Current - Supply | 800µA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 15.5 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | LMC7101 |

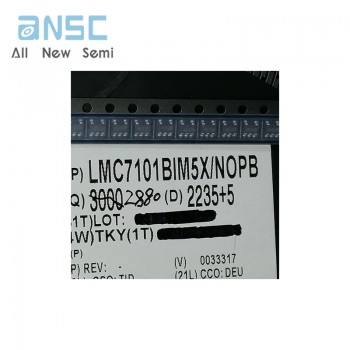

Actual product photos
