Hot sale original OP2177ARZ Amplifier IC OPAMP GP 2 CIRCUIT 8SOIC General Purpose Amplifier 2 Circuit 8-SOIC
Manufacturer Product Number
OP2177ARZ
Description
OP2177ARZ Amplifier IC OPAMP GP 2 CIRCUIT 8SOIC General Purpose Amplifier 2 Circuit 8-SOIC
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

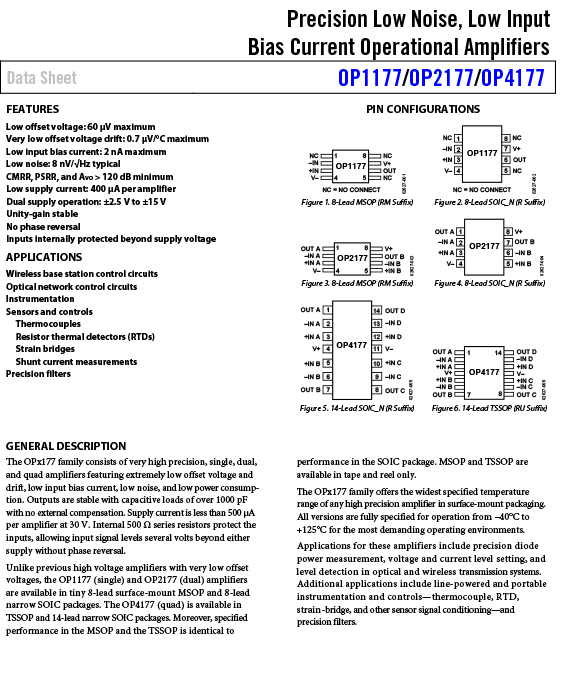

| GENERAL DESCRIPTION The OPx177 family consists of very high precision, single, dual, and quad amplifiers featuring extremely low offset voltage and drift, low input bias current, low noise, and low power consumption. Outputs are stable with capacitive loads of over 1000 pF with no external compensation. Supply current is less than 500 μA per amplifier at 30 V. Internal 500 Ω series resistors protect the inputs, allowing input signal levels several volts beyond either supply without phase reversal. FEATURES Low offset voltage: 60 μV maximum Very low offset voltage drift: 0.7 μV/°C maximum Low input bias current: 2 nA maximum Low noise: 8 nV/√Hz typical CMRR, PSRR, and AVO > 120 dB minimum Low supply current: 400 μA per amplifier Dual supply operation: ±2.5 V to ±15 V Unity-gain stable No phase reversal Inputs internally protected beyond supply voltage APPLICATIONS Wireless base station control circuits Optical network control circuits Instrumentation Sensors and controls Thermocouples Resistor thermal detectors (RTDs) Strain bridges Shunt current measurements Precision filters |
Product Description
|
ANSC PART# |
ANSC- OP2177ARZ |
|
Part# |
OP2177ARZ |
|
Type： |
Integrated Circuits |
|
Manufactor |
Original |
|
DC |
new |

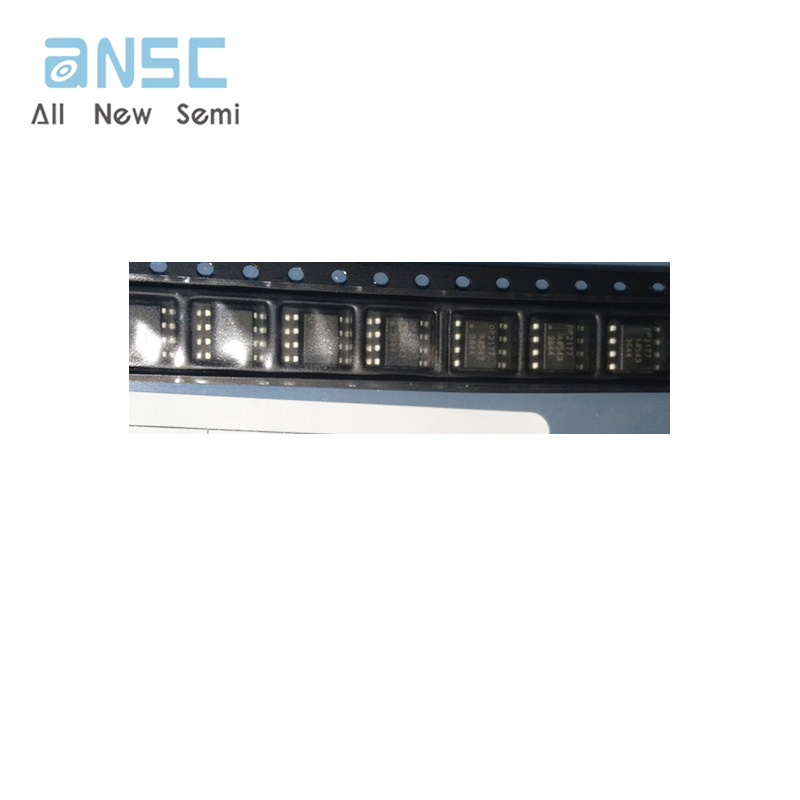

Actual image of the product
| Type | Description |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, Op Amps, Buffer Amps | |
| Mfr | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 2 |
| Output Type | - |
| Slew Rate | 0.7V/µs |
| Gain Bandwidth Product | 1.3 MHz |
| Current - Input Bias | 500 pA |
| Voltage - Input Offset | 15 µV |
| Current - Supply | 400µA (x2 Channels) |
| Current - Output / Channel | 10 mA |
| Voltage - Supply Span (Min) | 5 V |
| Voltage - Supply Span (Max) | 30 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | OP2177 |
Product datasheet
For more information, please download
