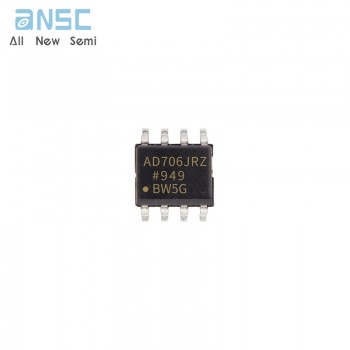

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce AD706JRZ Dual Picoampere Input Current Bipolar Op Amp SOP8 spot stock
Manufacturer Product Number
AD706JRZ
Description
AD706JRZ Dual Picoampere Input Current Bipolar Op Amp SOP8 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The AD706 is a dual, low power, bipolar op amp that has thelow input bias current of a JFET amplifier, but which offers asignificantly lower IB drift over temperature . It utilizes superbetabipolar input transistors to achieve picoampere input bias currentlevels (similar to FET input amplifiers at room temperature),while its IB typically only increases by 5 at 125°C (unlike aJFET amp, for which IB doubles every 10°C for a 1000increase at 125°C). The AD706 also achieves the microvoltoffset voltage and low noise characteristics of a precision bipolarinput amplifier .
Since it has < 200 pA of bias current, the AD706 does notrequire the commonly used“balancing” resistor . Furthermore,the current noise is only 50 fA/√Hz, which makes this amplifierusable with very high source impedances. At 600 A max supplycurrent (per amplifier), the AD706 is well suited for today’shigh density boards .
The AD706 is an excellent choice for use in low frequencyactive filters in 12-bit and 14-bit data acquisition systems, inprecision instrumentation, and as a high quality integrator . TheAD706 is internally compensated for unity gain and is availablein five performance grades . The AD706J is rated over thecommercial temperature range of 0°C to +70°C . The AD706A israted for the extended industrial temperature range of –40°Cto +85°C .
The AD706 is offered in two varieties of an 8-lead package:plastic mini-DIP and surface-mount (SOIC).
Product Features
High DC Precision
100 uV Max Offset Voltage
1.5 uV/C Max Offset Drift
200 pA Max Input Bias Current
0.5 uV p-p Voltage Noise, 0.1 Hz to 10 Hz
750 uA Supply Current
Available in 8-Lead Plastic Mini-DlP
and Surface-Mount (SOIC) Packages
Available in Tape and Reel in Accordance with
EIA-481A Standard
Quad Version: AD704
Product Applications
Low Frequency Active Filters
Precision Instrumentation
Precision Integrators
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-AD706JRZ |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, Op Amps, Buffer Amps | |
| Mfr | - |
| Packaging | Tube |
| Part Status | Active |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 2 |
| Slew Rate | 0.15V/µs |
| Gain Bandwidth Product | 800 kHz |
| -3db Bandwidth | 800 kHz |
| Current - Input Bias | 50 pA |
| Voltage - Input Offset | 30 µV |
| Current - Supply | 750µA |
| Current - Output / Channel | 15 mA |
| Voltage - Supply Span (Min) | 4 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | AD706 |

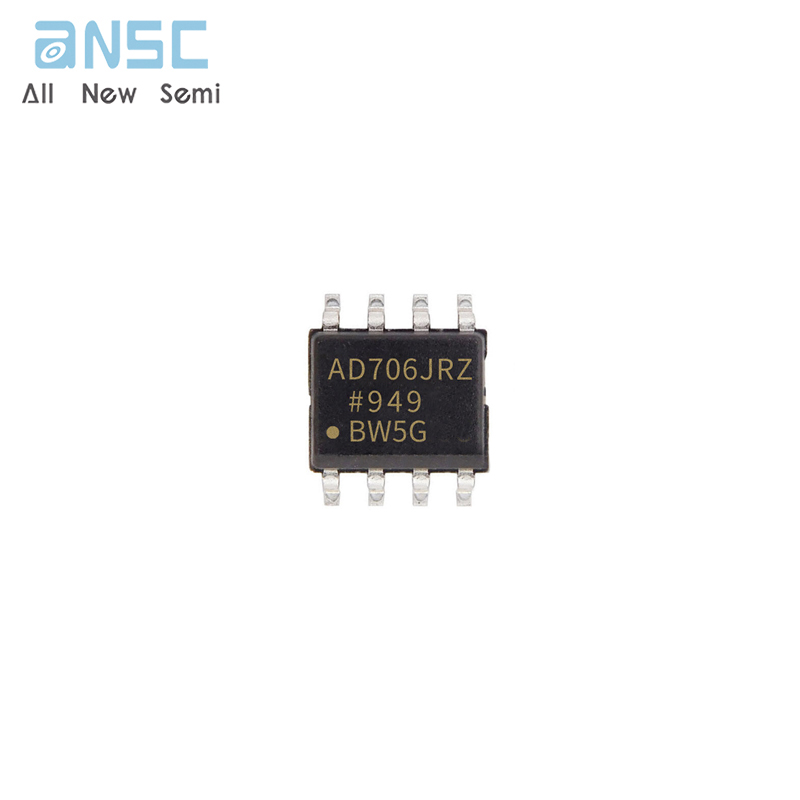

Product Photos
For more product information, please download the PDF
