Hot-selling and scarce TPA2010D1YZFT 2.5-W Mono Filter-Free Class-D Audio Power Amplifier DSBGA-9 spot stock

Product Descriptions

The  TPA2010D1  (sometimes  referred  to  asTPA2010) is a 2. 5-W high efficiency filter-free class-D audio power amplifier (class-D amp) in a 1,45 mm ×1,45 mm die-size ball   grid array (DSBGA)  that requires only three external components

Features  like  88% efficiency,    –75-dB PSRR, improved RF-rectification immunity, and 8 mm² total PCB area make the TPA2010D1 (TPA2010) class-Damp ideal for cellular handsets. A fast start-up time of1 ms with minimal   pop makes the TPA2010D1(TPA2010) ideal for PDA applications.

In cellular handsets,  the earpiece,  speaker phone, and melody ringer  can each be driven by the TPA2010D1 .  The TPA2010D1 allows independent gain while summing signals from separate sources and has a low 36 µV noise floor that is A-weighted.

Product Features

•   Maximum Battery Life and Minimum Heat

– Efficiency with an 8-ΩSpeaker:

– 88% at 400 mW

– 80% at 100 mW

– 2. 8-mA Quiescent Current

– 0. 5-µA Shutdown Current

•   Only Three External Components

– Optimized PWM Output Stage Eliminates LC Output Filter

– Internally Generated 250-kHz Switching

Frequency Eliminates Capacitor and Resistor

– Improved PSRR (–75 dB) and Wide Supply

Voltage (2 .5 V to 5.5 V) Eliminates Need for a

Voltage Regulator

– Fully Differential Design Reduces RF

Rectification and Eliminates Bypass Capacitor

– Improved CMRR Eliminates Two Input Coupling Capacitors

•   Die-size ball grid (DSBGA)

– NanoFree ™ Lead-Free (YZF)

– NanoStar ™ SnPb (YEF)

Product Applications

•   Wireless or Cellular Handsets and PDAs

•   Personal Navigation Devices

•   General Portable Audio Devices

•   Linear Vibrator Drivers

Product Specifications

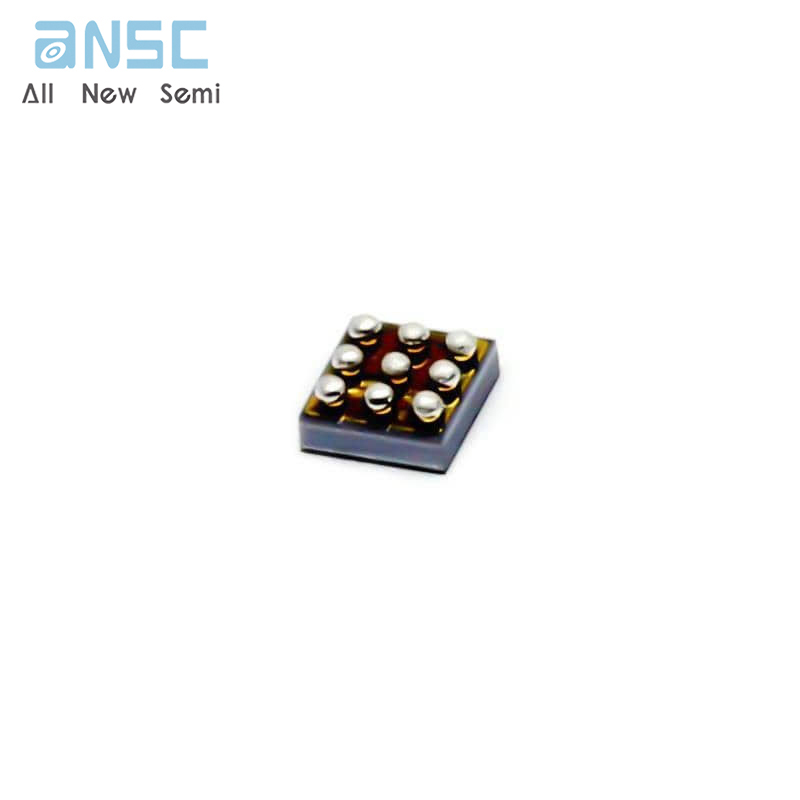

Product Photos

For more product information, please download the PDF
