Hot-selling and scarce AD8051AR Low Cost, High Speed Rail-to-Rail Amplifiers IC SOT23-5 spot stock
Manufacturer Product Number
AD8051AR
Description
AD8051AR Low Cost, High Speed Rail-to-Rail Amplifiers IC SOT23-5 spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The AD8051 (single), AD8052 (dual) and AD8054 (quad) arelow cost, voltage feedback, high speed amplifiers designed tooperate on +3 V, +5 V or ±5 V supplies . They have true singlesupply capability with an input voltage range extending 200 mVbelow the negative rail and within 1 V of the positive rail .
Despite their low cost, the AD8051/AD8052/AD8054 provideexcellent overall performance and versatility . The output voltage swing extends to within 25 mV of each rail, providing themaximum output dynamic range with excellent overdrive recovery . This makes the AD8051/AD8052/AD8054 useful for videoelectronics such as cameras, video switchers or any high speed portable equipment . Low distortion and fast settling make themideal for active filter applications .
Product Features
Low Cost Single (AD8051), Dual (AD8052) and Quad
(AD8054)
Voltage Feedback Architecture
Fully Specified at +3 V, +5 V and 5 V Supplies
Single Supply Operation
Output Swings to Within 25 mV of Either Rail
Input Voltage Range: –0.2 V to +4 V; VS = +5 V
High Speed and Fast Settling on +5 V:
110 MHz –3 dB Bandwidth (G = +1) (AD8051/AD8052)
150 MHz –3 dB Bandwidth (G = +1) (AD8054)
145 V/s Slew Rate
50 ns Settling Time to 0.1%
Small Packaging
AD8051 Available in SOT-23-5
AD8052 Available in SOIC-8
AD8054 Available in TSSOP-14
Good Video Specifications (G = +2)
Gain Flatness of 0.1 dB to 20 MHz; RL = 150
0.03% Differential Gain Error; RL = 1K
0.03 Differential Phase Error; RL = 1K
Low Distortion
–80 dBc Total Harmonic @ 1 MHz, RL = 100
Outstanding Load Drive Capability
Drives 45 mA, 0.5 V from Supply Rails (AD8051/AD8052)
Drives 50 pF Capacitive Load (G = +1) (AD8051/AD8052)
Low Power of 2.75 mA/Amplifier (AD8054)
Low Power of 4.4 mA/Amplifier (AD8051/AD8052)
Product Applications
Coax Cable Driver
Active Filters
Video Switchers
A/D Driver
Professional Cameras
CCD Imaging Systems
CD/DVD ROM
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-AD8051AR |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, Op Amps, Buffer Amps | |
| Mfr | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Amplifier Type | Voltage Feedback |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Slew Rate | 170V/µs |
| -3db Bandwidth | 110 MHz |
| Current - Input Bias | 1.4 µA |
| Voltage - Input Offset | 1.8 mV |
| Current - Supply | 4.8mA |
| Current - Output / Channel | 45 mA |
| Voltage - Supply Span (Min) | 3 V |
| Voltage - Supply Span (Max) | 12 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | AD8051 |

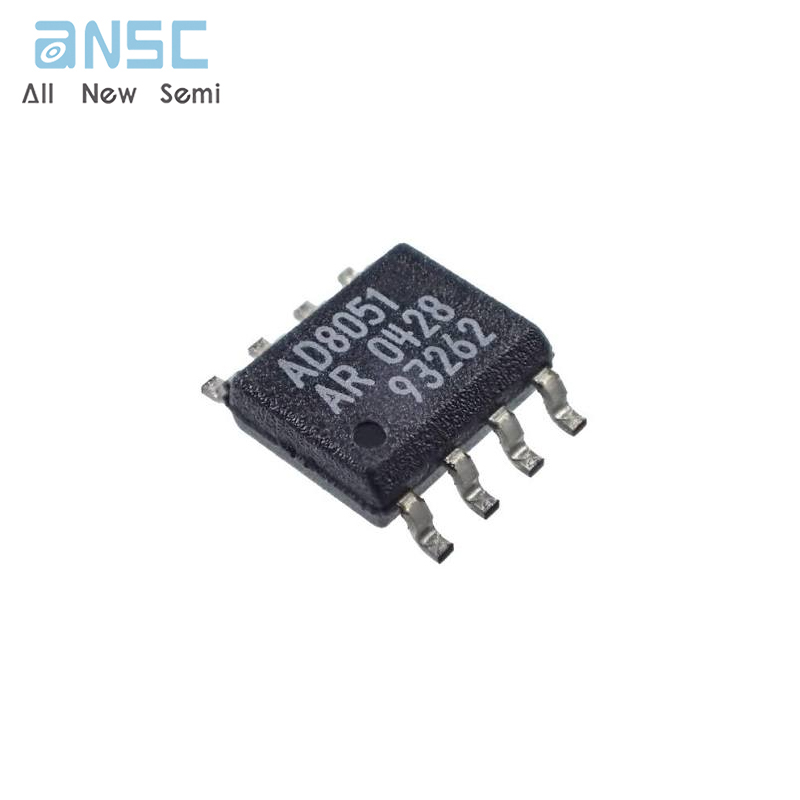

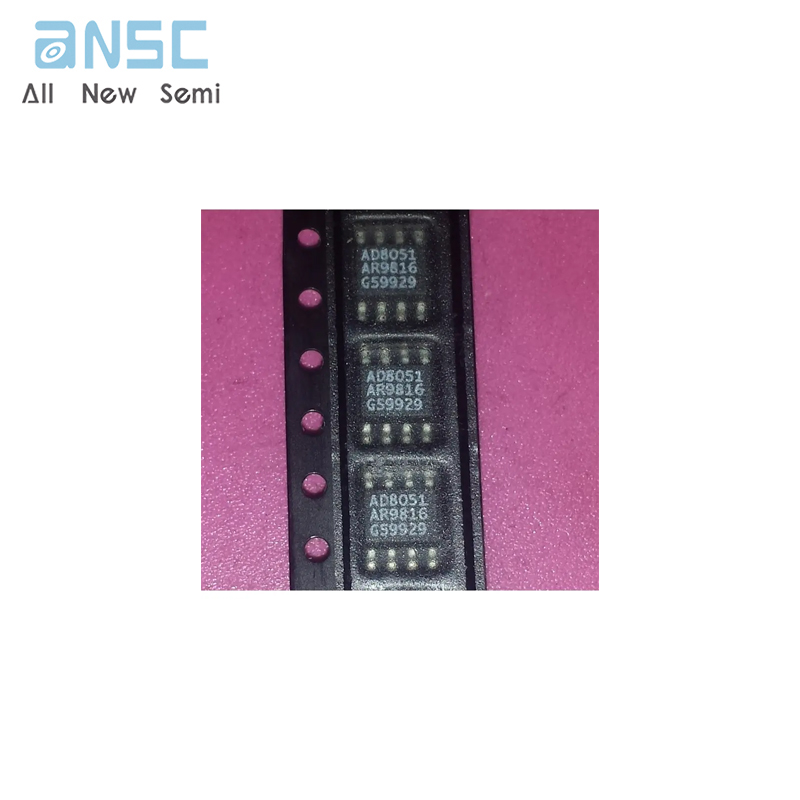

Product Photos
For more product information, please download the PDF
Other Products In The same category:
AD8051AR Low Cost, High Speed Rail-to-Rail Amplifiers IC SOT23-5 spot stock
2In stock:
Can ship immediately
