Spot sales of AD8554AR Zero-Drift, Single-Supply, Rail-to-Rail Input/Output Operational Amplifiers IC SOP-14
Manufacturer Product Number
AD8554AR
Description
AD8554AR Zero-Drift, Single-Supply, Rail-to-Rail Input/Output Operational Amplifiers IC SOP-14
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
This family of amplifiers has ultralow offset, drift, and bias current. The AD8551, AD8552, and AD8554 are single, dual, and quad amplifiers featuring rail-to-rail input and output swings. All are guaranteed to operate from 2.7 V to 5 V with a single supply.
The AD8551/AD8552/AD8554 provide the benefits previously found only in expensive auto-zeroing or chopper-stabilized amplifiers. Using Analog Devices, Inc. topology, these new zero-drift amplifiers combine low cost with high accuracy. No external capacitors are required.
With an offset voltage of only 1 μV and drift of 0.005 μV/°C, the AD8551/AD8552/AD8554 are perfectly suited for applications in which error sources cannot be tolerated. Temperature, position and pressure sensors, medical equipment, and strain gage amplifiers benefit greatly from nearly zero drift over their operating temperature range. The rail-to-rail input and output swings provided by the AD8551/AD8552/AD8554 make both high-side and low-side sensing easy.
The AD8551/AD8552/AD8554 are specified for the extended industrial/automotive temperature range (−40°C to +125°C). The AD8551 single amplifier is available in 8-lead MSOP and 8-lead narrow SOIC packages. The AD8552 dual amplifier is available in 8-lead narrow SOIC and 8-lead TSSOP surfacemount packages. The AD8554 quad is available in 14-lead narrow SOIC and 14-lead TSSOP packages.
Product Features
Low offset voltage: 1 μV
Input offset drift: 0.005 μV/°C
Rail-to-rail input and output swing
5 V/2.7 V single-supply operation
High gain, CMRR, PSRR: 130 dB
Ultralow input bias current: 20 pA
Low supply current: 700 μA/op amp
Overload recovery time: 50 μs
No external capacitors required
Product Applications
Temperature sensors
Pressure sensors
Precision current sensing
Strain gage amplifiers
Medical instrumentation
Thermocouple amplifiers
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-AD8554AR |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, Op Amps, Buffer Amps | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Amplifier Type | Zero-Drift |
| Number of Circuits | 4 |
| Output Type | Rail-to-Rail |
| Slew Rate | 0.4V/µs |
| Gain Bandwidth Product | 1.5 MHz |
| Current - Input Bias | 10 pA |
| Voltage - Input Offset | 1 µV |
| Current - Supply | 850µA (x4 Channels) |
| Current - Output / Channel | 30 mA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 5 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOIC |
| Base Product Number | AD8554 |

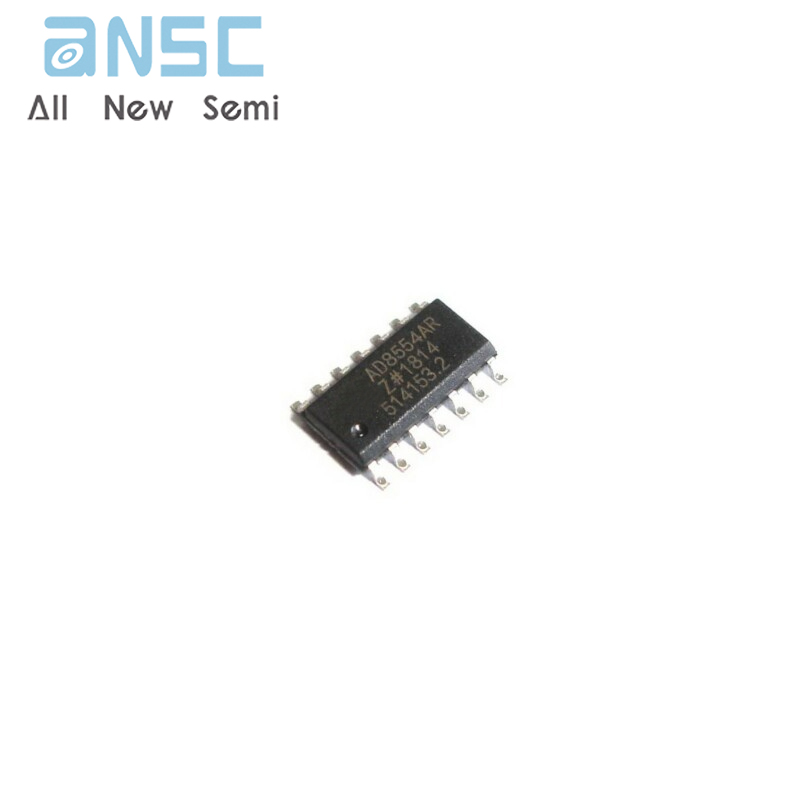

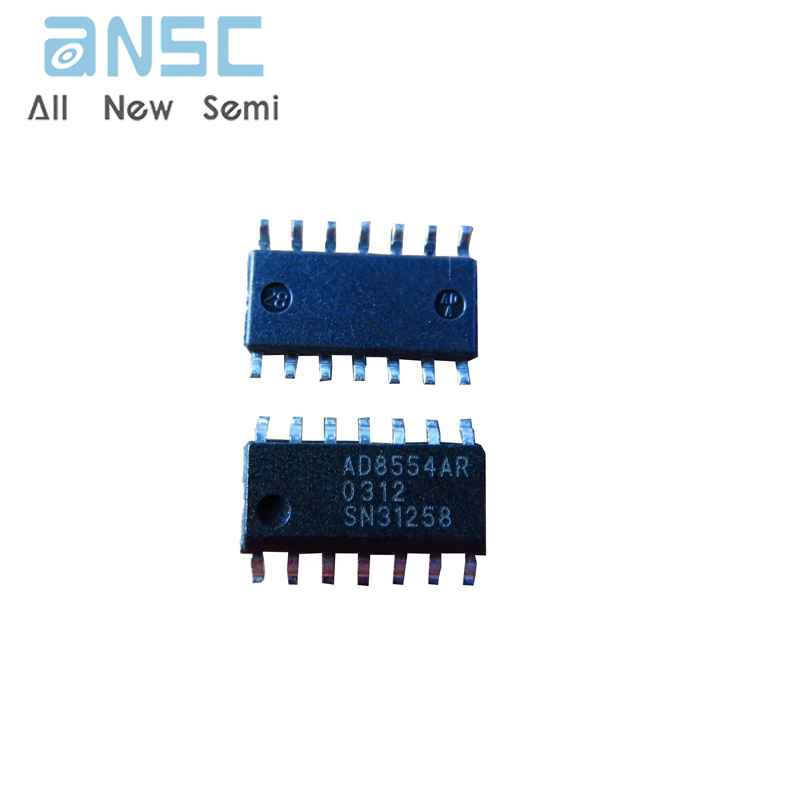

Product Photos
