Hot-selling and scarce OP1177AR Low Input Bias Current Operational Amplifiers MSOP8 spot stock

Product Descriptions

The OPx177 family consists of very high-precision, single, dual,and quad amplifiers featuring extremely low offset voltage anddrift, low input bias current, low noise, and low power consumption . Outputs are stable with capacitive loads of over1,000 pF with no external compensation . Supply current is lessthan 500 µA per amplifier at 30 V . Internal 500 Ω series resistors protect the inputs, allowing input signal levels several voltsbeyond either supply without phase reversal .

Unlike previous high-voltage amplifiers with very low offset voltages,theOP1177 and OP2177 are available in the tiny MSOP 8-lead surface-mount package,while the OP4177 is available in TSSOP14 .Moreover, specified performance in the MSOP/TSSOP package isidentical to performance in the SOIC package .

OPx177 family offers the widest specified temperature range ofany high-precision amplifier in surface-mount packaging . Allversions are fully specified for operation from –40°C to +125°C forthe most demanding operating environments .

Applications for these amplifiers include precision diode powermeasurement, voltage and current level setting, and level detection in optical and wireless transmission systems . Additionalapplications include line powered and portable instrumentation and controls—thermocouple, RTD, strain-bridge, and othersensor signal conditioning—and precision filters .

Product Features

Low Offset Voltage: 60 V Max

Very Low Offset Voltage Drift: 0.7 V/C Max

Low Input Bias Current: 2 nA Max

Low Noise: 8 nV/√Hz

CMRR, PSRR, and AVO > 120 dB Min

Low Supply Current: 400 A/Amp

Dual Supply Operation: 2.5 V to 15 V

Unity Gain Stable

No Phase Reversal

Inputs Internally Protected Beyond Supply Voltage

Product Applications

Wireless Base Station Control Circuits

Optical Network Control Circuits

Instrumentation

Sensors and Controls

Thermocouples

RTDs

Strain Bridges

Shunt Current Measurements

Precision Filters

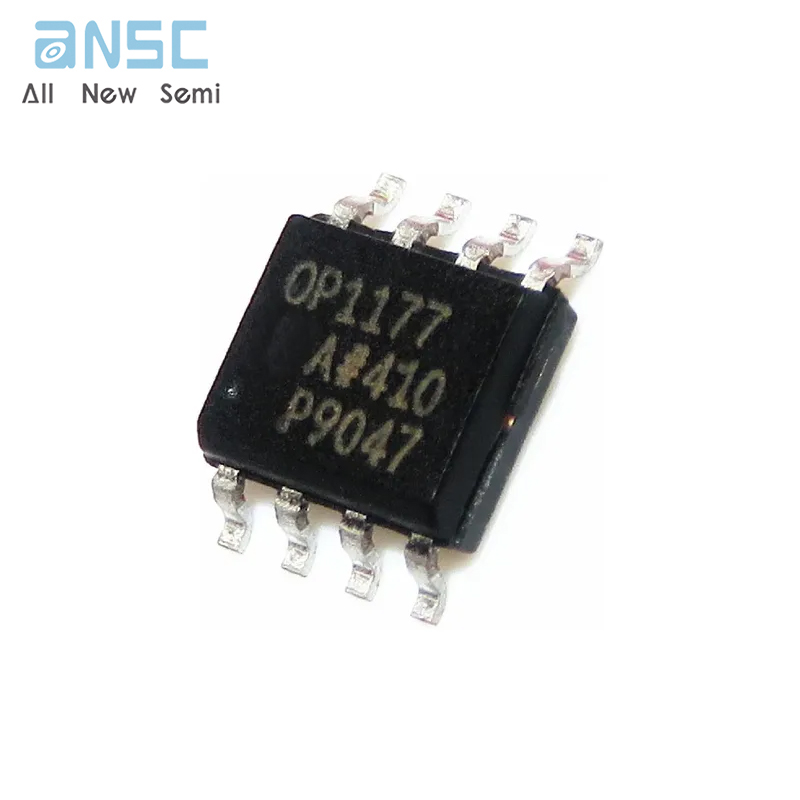

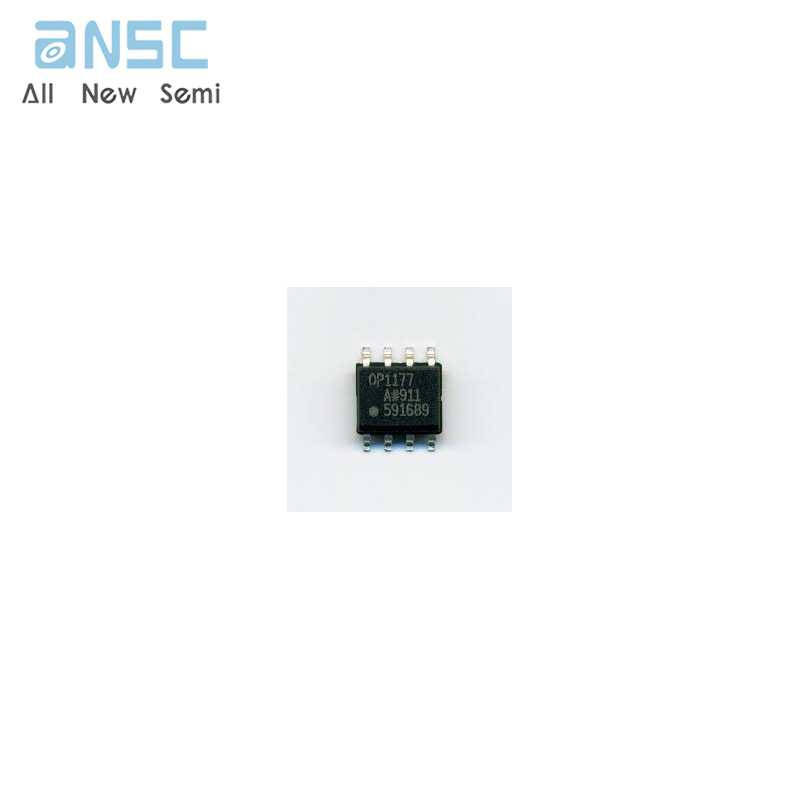

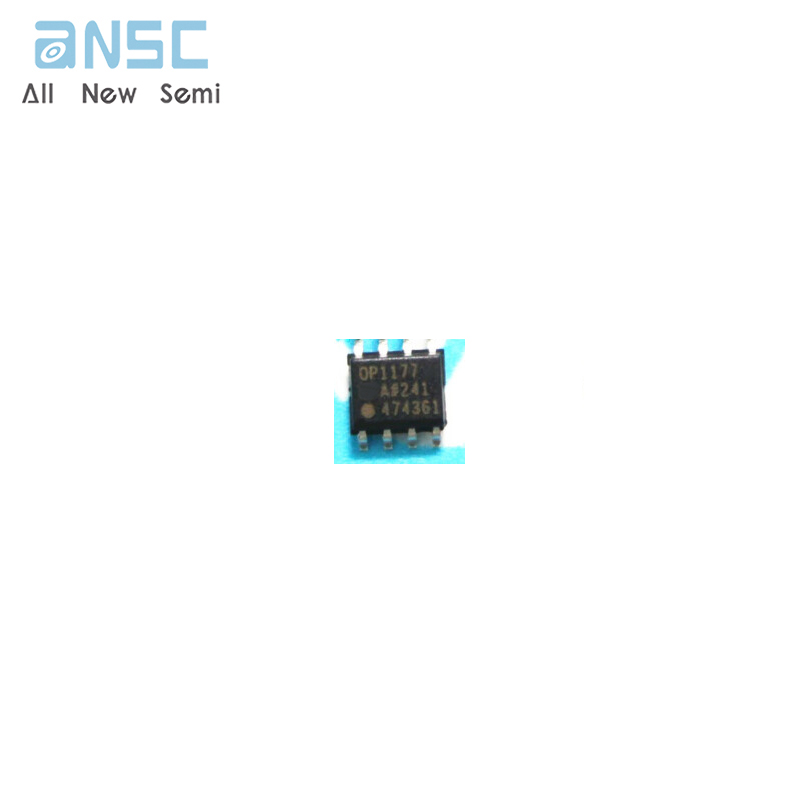

Product Photos

For more product information, please download the PDF
