Spot sales of MAX4016ESA Low-Cost, High-Speed, Single-Supply Op Amps IC with Rail-to-Rail Outputs SOP-8
Manufacturer Product Number
MAX4016ESA
Description
MAX4016ESA Low-Cost, High-Speed, Single-Supply Op Amps IC with Rail-to-Rail Outputs SOP-8
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The MAX4012 single, MAX4016 dual, MAX4018 triple, and MAX4020 quad op amps are unity-gain-stable devices that combine high-speed performance with Rail-to-Rail outputs. The MAX4018 has a disable feature that reduces powersupply current to 400μA and places its outputs into a highimpedance state. These devices operate from a 3.3V to 10V single supply or from ±1.65V to ±5V dual supplies. The common-mode input voltage range extends beyond the negative power-supply rail (ground in single-supply applications).
These devices require only 5.5mA of quiescent supply current while achieving a 200MHz -3dB bandwidth and a 600V/μs slew rate. These parts are an excellent solution in low-power/low-voltage systems that require wide bandwidth, such as video, communications, and instrumentation. In addition, when disabled, their high-output impedance makes them ideal for multiplexing applications.
The MAX4012 comes in a miniature 5-pin SOT23 and 8-pin SO package, while the MAX4016 comes in 8-pin μMAX® and SO packages. The MAX4018/MAX4020 are available in a space-saving 16-pin QSOP, as well as a 14-pin SO.
Product Features
● Low-Cost
● High Speed:
• 200MHz -3dB Bandwidth (MAX4012)
• 150MHz -3dB Bandwidth
• (MAX4016/MAX4018/MAX4020)
• 30MHz 0.1dB Gain Flatness
• 600V/μs Slew Rate
● Single 3.3V/5.0V Operation
● Rail-to-Rail Outputs
● Input Common-Mode Range Extends Beyond VEE
● Low Differential Gain/Phase: 0.02%/0.02°
● Low Distortion at 5MHz:
• -78dBc SFDR
• -75dB Total Harmonic Distortion
● High-Output Drive: ±120mA
● 400μA Shutdown Capability (MAX4018)
● High-Output Impedance in Off State (MAX4018)
● Space-Saving SOT23, SO, μMAX, or QSOP Packages
Product Applications
● Set-Top Boxes
● Surveillance Video Systems
● Battery-Powered Instruments
● Video Line Driver
● Analog-to-Digital Converter Interface
● CCD Imaging Systems
● Video Routing and Switching Systems
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MAX4016ESA |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, Op Amps, Buffer Amps | |
| Mfr | Analog Devices Inc./Maxim Integrated |
| Series | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Amplifier Type | Voltage Feedback |
| Number of Circuits | 2 |
| Output Type | Rail-to-Rail |
| Slew Rate | 600V/µs |
| -3db Bandwidth | 150 MHz |
| Current - Input Bias | 5.4 µA |
| Voltage - Input Offset | 4 mV |
| Current - Supply | 5.5mA (x2 Channels) |
| Current - Output / Channel | 120 mA |
| Voltage - Supply Span (Min) | 3.15 V |
| Voltage - Supply Span (Max) | 11 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | MAX4016 |

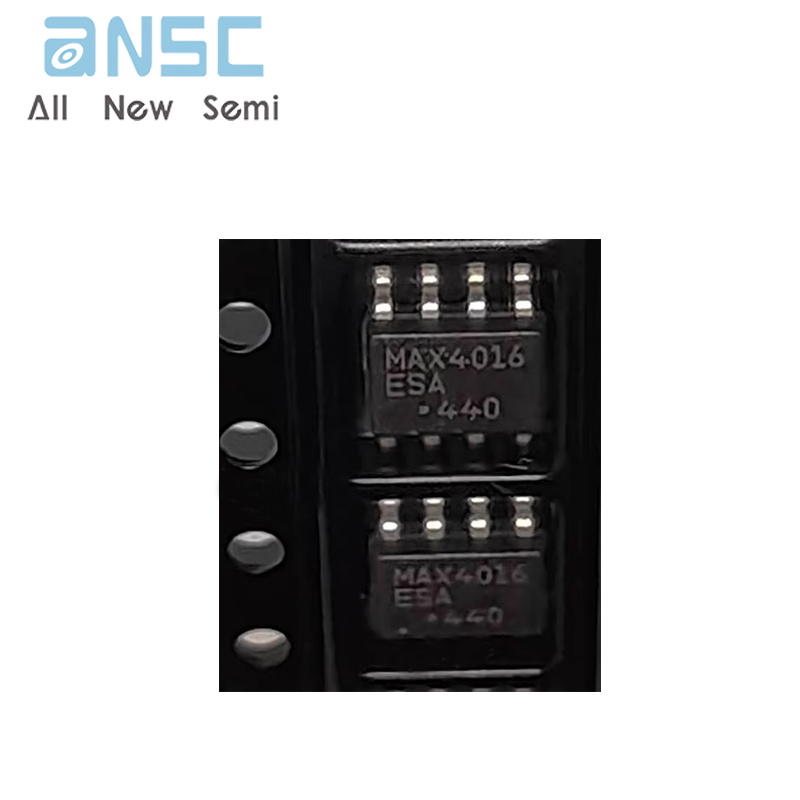

Product Photos
