Hot sale Original LM2904DR2G IC OPAMP GP 2 CIRCUIT 8SOIC Standard (General Purpose) Amplifier 2 Circuit
Manufacturer Product Number
LM2904DR2G
Description
LM2904DR2G IC OPAMP GP 2 CIRCUIT 8SOIC Standard (General Purpose) Amplifier 2 Circuit 8-SOIC
Package Condition
Tape & Reel (TR) Cut Tape (CT)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

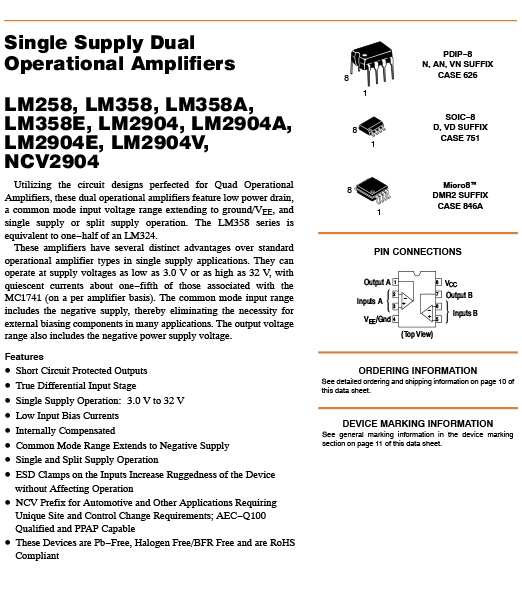

| Amplifiers drain, a common mode input voltage range extending to ground/VEE, and single supply or split supply operation. The LM358 series is equivalent to one−half of an LM324. These amplifiers have several distinct advantages over standard operational amplifier types in single supply applications. They can operate at supply voltages as low as 3.0 V or as high as 32 V, with quiescent currents about one−fifth of those associated with the MC1741 (on a per amplifier basis). The common mode input range includes the negative supply, thereby eliminating the necessity for external biasing components in many applications. The output voltage range also includes the negative power supply voltage. Features • Short Circuit Protected Outputs • True Differential Input Stage • Single Supply Operation: 3.0 V to 32 V • Low Input Bias Currents • Internally Compensated • Common Mode Range Extends to Negative Supply • Single and Split Supply Operation • ESD Clamps on the Inputs Increase Ruggedness of the Device without Affecting Operation • Pb−Free Packages are Available • NCV Prefix for Automotive and Other Applications Requiring Site and Control Changes |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC- LM2904DR2G |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Amplifier Type | General Purpose |
| Number of Circuits | 2 |
| Output Type | - |
| Slew Rate | - |
| Gain Bandwidth Product | 1 MHz |
| Current - Input Bias | 45 nA |
| Voltage - Input Offset | 2 mV |
| Current - Supply | 800µA (x2 Channels) |
| Current - Output / Channel | 40 mA |
| Voltage - Supply Span (Min) | 3 V |
| Voltage - Supply Span (Max) | 26 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | LM2904 |

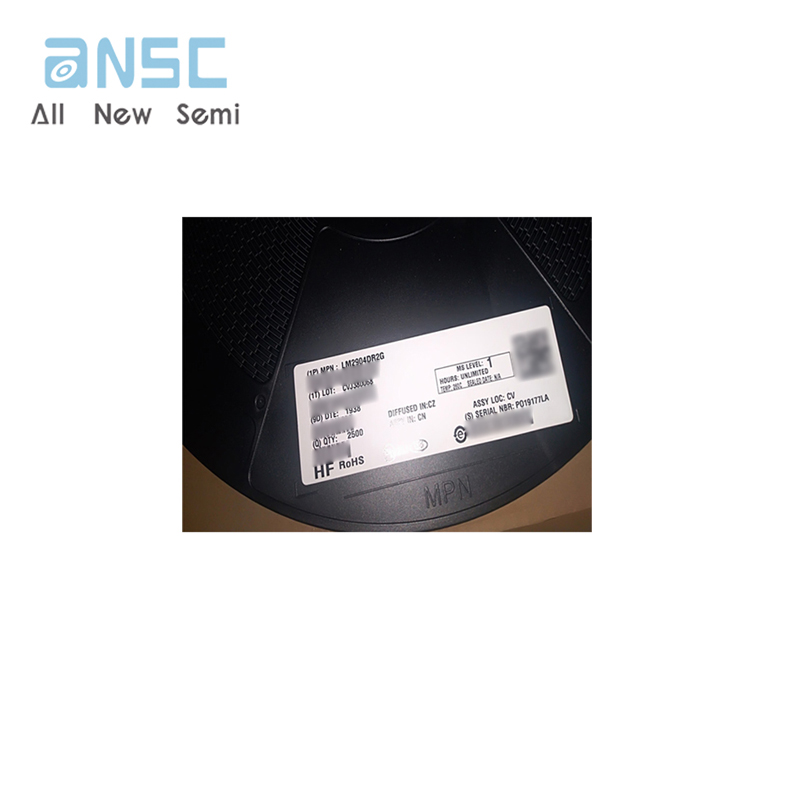

Actual image of the product

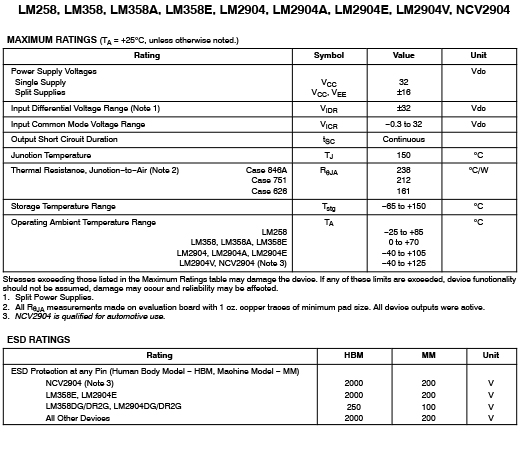

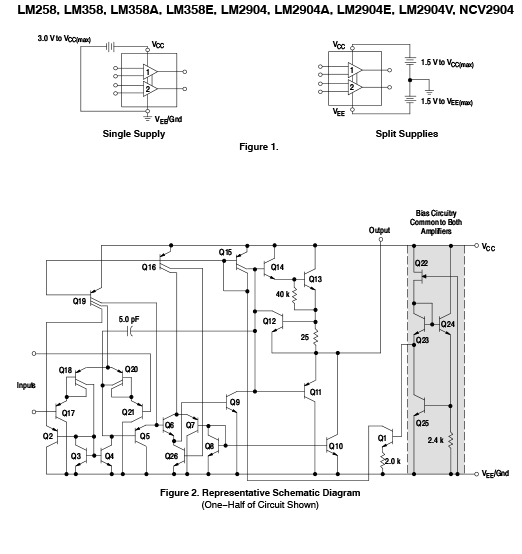

Product datasheet
For more information, please download
