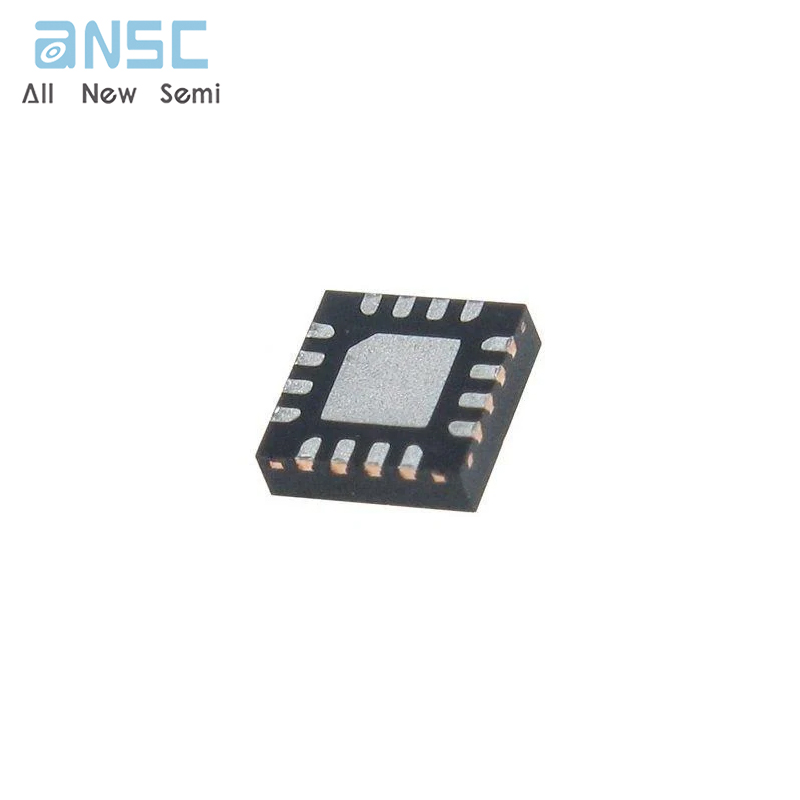

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce SE2598L-R 2.4 GHz Power Amplifier with Power Detector QFN spot stock
Manufacturer Product Number
SE2598L-R
Description
SE2598L-R 2.4 GHz Power Amplifier with Power Detector QFN spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The SE2598L is a 2.4 GHz power amplifier designed for use in the 2.4 GHz ISM band for wireless LAN applications. The device incorporates a power detector for closed loop monitoring of the output power.
The SE2598L includes a digital enable control for device on/off control.
The SE2598L temperature compensated power detector is highly immune to mismatch at its output with less than 1.5 dB of variation with a 2:1 mismatch.
Product Applications
DSSS 2.4 GHz WLAN (IEEE802.11b)
OFDM 2.4 GHz WLAN (IEEE802.11g or IEEE802.11n)
Access Points, PCMCIA, PC cards
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SE2598L-R |
| Category | RF and Wireless |
| RF Amplifiers | |
| Manufacturer | - |
| Series | SiGe |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Frequency | 2.4GHz ~ 2.5GHz |
| P1dB | 26.5dBm |
| Gain | 28dB |
| RF Type | 802.11b/g/n |
| Voltage - Supply | 3V ~ 3.6V |
| Current - Supply | 250mA |
| Test Frequency | 2.4GHz ~ 2.5GHz |
| Mounting Type | Surface Mount |
| Package / Case | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (3x3) |
| Base Product Number | SE2598 |
Product Photos
For more product information, please download the PDF
