SN74SSTV16859RGQ8 13-BIT TO 26-BIT REGISTERED BUFFER WITH SSTL 2 INPUTS AND OUTPUTS QFN64 spot stock

Product Descriptions

This 13-bit to 26-bit registered buffer is designed for 2.3-V to 2.7-V VCC operation.

All inputs are SSTL_2, except the LVCMOS reset (RESET) input. All outputs are SSTL_2, Class II compatible.

The SN74SSTV16859 operates from a differential clock (CLK and CLK). Data are registered at the crossing of CLK going high and CLK going low.

Product Features

Member of the Texas Instruments Widebus Family

1-to-2 Outputs to Support Stacked DDR DIMMs

Supports SSTL_2 Data Inputs

Outputs Meet SSTL_2 Class II Specifications

Differential Clock (CLK and CLK) Inputs

Supports LVCMOS Switching Levels on the RESET Input

RESET Input Disables Differential Input Receivers, Resets All Registers, and Forces All Outputs Low

Pinout Optimizes DIMM PCB Layout

Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II

ESD Protection Exceeds JESD 22

− 2000-V Human-Body Model (A114-A)

− 200-V Machine Model (A115-A)

Product Specification

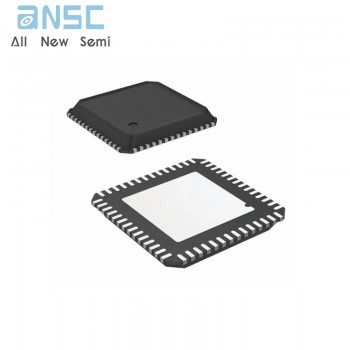

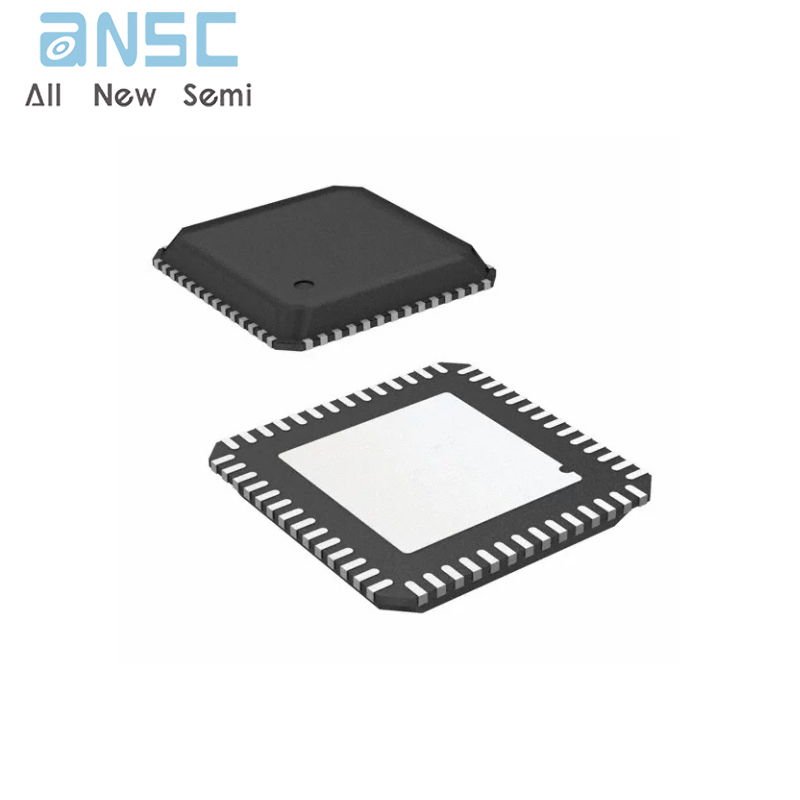

Product Photos

For more product information, please download the PDF
