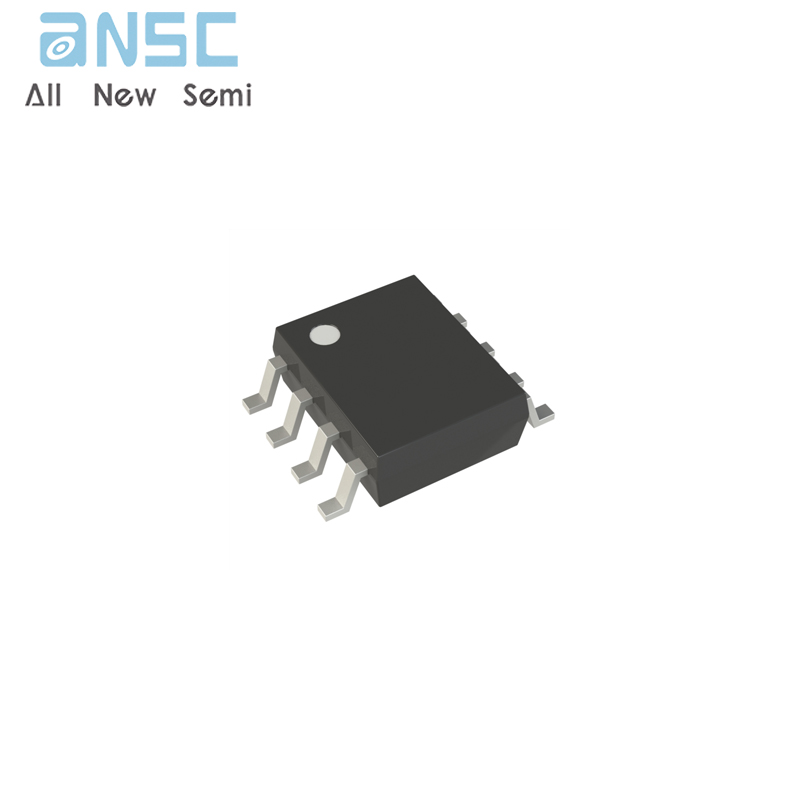

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce AZ4580MTR-G1 DUAL LOW NOISE OPERATIONAL AMPLIFIERS SOP8 spot stock
Manufacturer Product Number
AZ4580MTR-G1
Description
AZ4580MTR-G1 DUAL LOW NOISE OPERATIONAL AMPLIFIERS SOP8 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The AZ4580 is a monolithic dual low noise operational amplifier. It is specifically designed for audio systems to improve tone control; it can also be used in preamplifier, industrial measurement tools and applications where gain and phase matched channels are mandatory
The IC features internal frequency compensation, low noise, low distortion, high gain and high bandwidth. The AZ4580 can operate under dual power supply voltage up to ±18V or single power supply up to 36V.
The AZ4580 is available in DIP-8, SOIC-8 and TSSOP-8 packages.
Product Features
· Large Signal Voltage Gain: 110dB Typical
· Low Input Noise Voltage: 0.7μVRMS (RIAA) Typical
· Wide Gain Bandwidth Product: 15MHz at 10KHz Typical
· Low Distortion: 0.0005 PERCENT Typical
· Slew Rate: 7V/μs Typical
Product Applications
· Audio AC-3 Decoder System
· Audio Amplifier
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-AZ4580MTR-G1 |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, Op Amps, Buffer Amps | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Amplifier Type | Audio |
| Number of Circuits | 2 |
| Slew Rate | 7V/µs |
| Gain Bandwidth Product | 15 MHz |
| Current - Input Bias | 150 nA |
| Voltage - Input Offset | 500 µV |
| Current - Supply | 4mA (x2 Channels) |
| Current - Output / Channel | 80 mA |
| Voltage - Supply Span (Min) | 4 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | AZ4580 |
Product Photos
For more product information, please download the PDF
